AHI 152 Door Lever Set — Passage

Description

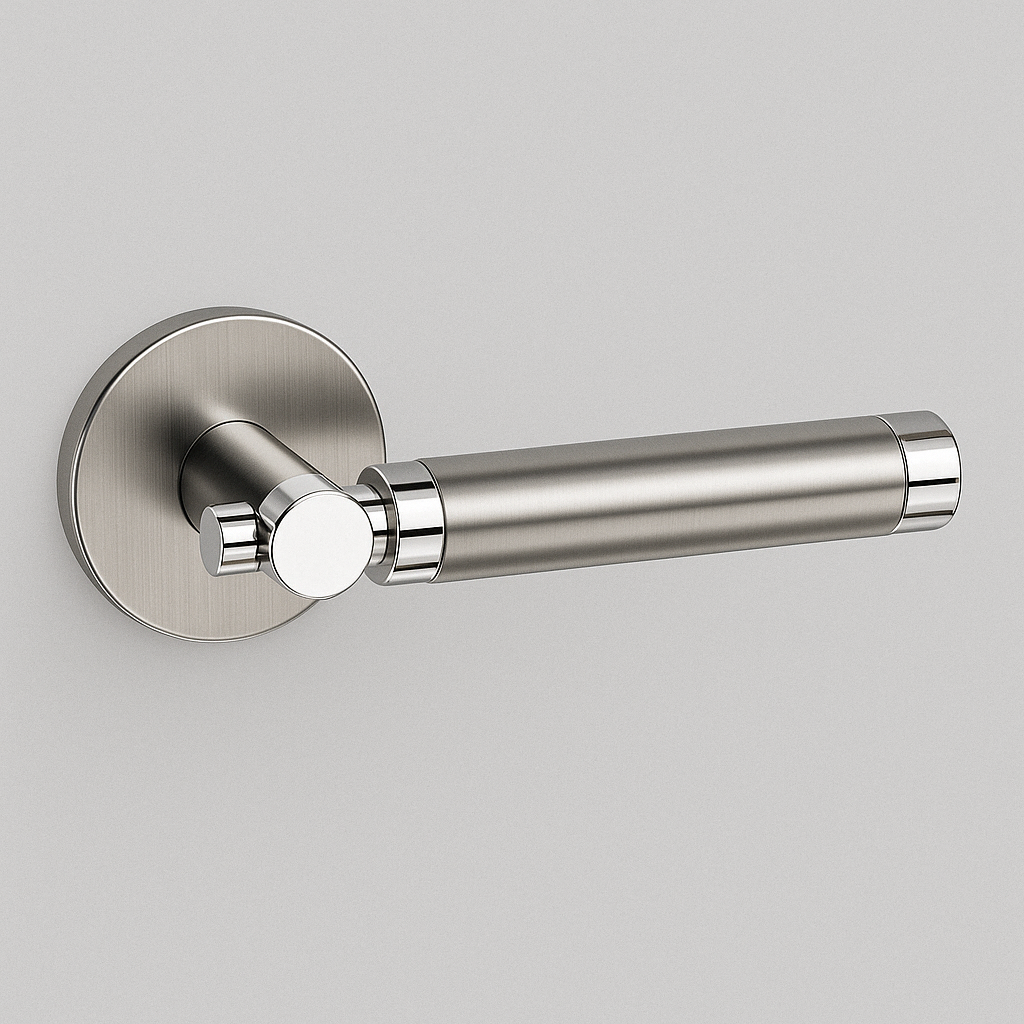

The AHI 152 Passage Lever by AHI is a solid stainless steel door lever featuring intersecting cylindrical forms with varied surface textures and precise joinery, configured for passage function — doors that latch but do not require a lock. Suitable for hallways, closets, and interior doors in residential and commercial settings.

Also available in privacy and dummy configurations. Sold as a complete set with all required mounting components.

Specifications

• Lever Dimensions: L 130 mm (5.2″) × W 20 mm (0.75″)
• Door Thickness: 1 3/8″ – 2″
• Thumb Turn: Push/pull pin on rose
• Rose Style:
  • Circle SM (AHI Rose 200): Ø 52 mm (2 1/16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
  • Circle LG (AHI Rose 201): Ø 62 mm (2.44″) × D 10 mm (0.3″) — fits Ø 53.97 mm (2.12″) bore hole
  • Square SM (AHI Rose 203): 55 mm × 55 mm (2.16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
  • Square LG (AHI Rose 204): 64 mm × 64 mm (2.5″) × D 10 mm (0.5″) — fits Ø 53.97 mm (2.12″) bore hole

Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Casson is not responsible for damages resulting from improper installation.

Materials

Solid stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.

Product Downloads

• Door Lever No. 152 Product Sheet (JPG)
• Door Lever No. 152 Drawing (PDF)
• Installation Guide (PDF)
• Heavy Duty Installation Guide (PDF)
• Rose 200 Drawing (PDF)
• Rose 201 Drawing (PDF)
• Rose 203 Drawing (PDF)
• Rose 204 Drawing (PDF)
• AHI Catalogue
