Description
The AHI 104 Passage Lever by AHI is a hollow stainless steel door lever with a slim cylindrical form, configured for passage function — doors that latch but do not require a lock. A larger version of the 103, suited to hallways, closets, and interior doors. Part of the Premium collection.
Also available in privacy, single dummy, and double dummy configurations.
Specifications
- Lever Dimensions: L 141 mm (5.56″) × W 22 mm (0.87″)
- Door Thickness: 1 3/8″ – 2″
- Rose Style:
- Circle SM: Ø 52 mm (2 1/16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
- Circle LG: Ø 62 mm (2.44″) × D 10 mm (0.3″) — fits Ø 53.97 mm (2.12″) bore hole
- Square SM: 55 mm × 55 mm (2.16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
- Square LG: 64 mm × 64 mm (2.5″) × D 10 mm (0.5″) — fits Ø 53.97 mm (2.12″) bore hole
Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Casson is not responsible for damages resulting from improper installation.
Materials
Hollow stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.
Product Downloads

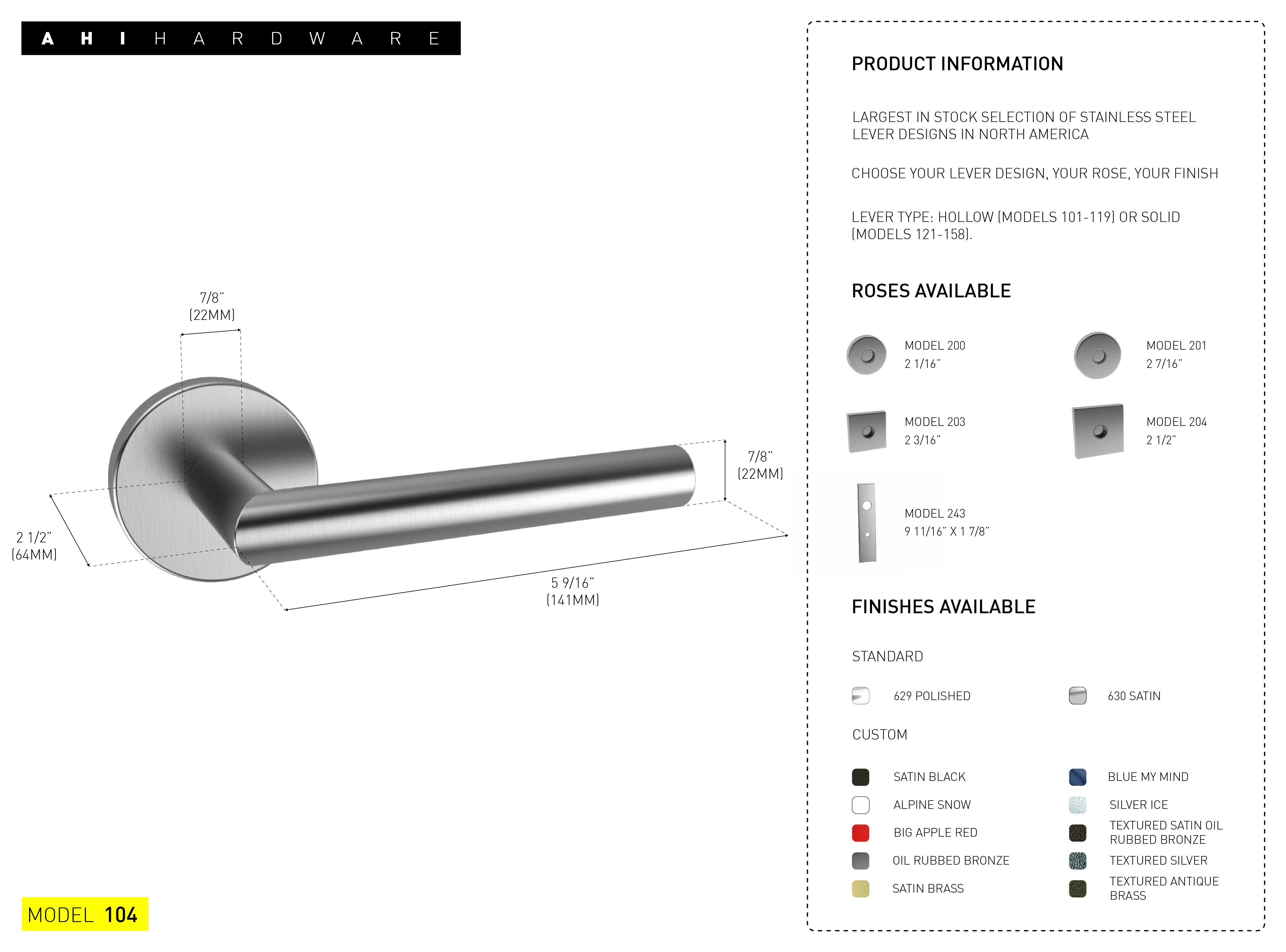

- Door Lever No. 104 Product Sheet (JPG)
- Installation Guide (Passage) (PDF)
- Heavy Duty Installation Guide (Passage) (PDF)
- Rose 200 Drawing (PDF)
- Rose 201 Drawing (PDF)
- Rose 203 Drawing (PDF)
- Rose 204 Drawing (PDF)
- AHI Catalogue
