Description
The AHI 135 Dummy / Double Dummy by AHI is a solid stainless steel door lever with a modern tapered handle and angular edges, configured for decorative or push/pull applications. Ideal for closets, pantry doors, and any door requiring a symmetrical lever without latch or lock function.
Also available in passage and privacy configurations. Sold with all required mounting components for the selected function.
Specifications
- Lever Dimensions: L 127 mm (5.1″) × W 20 mm (0.78″)
- Door Thickness: 1 3/8″ – 2″
- Thumb Turn: Push/pull pin on rose
- Rose Style:

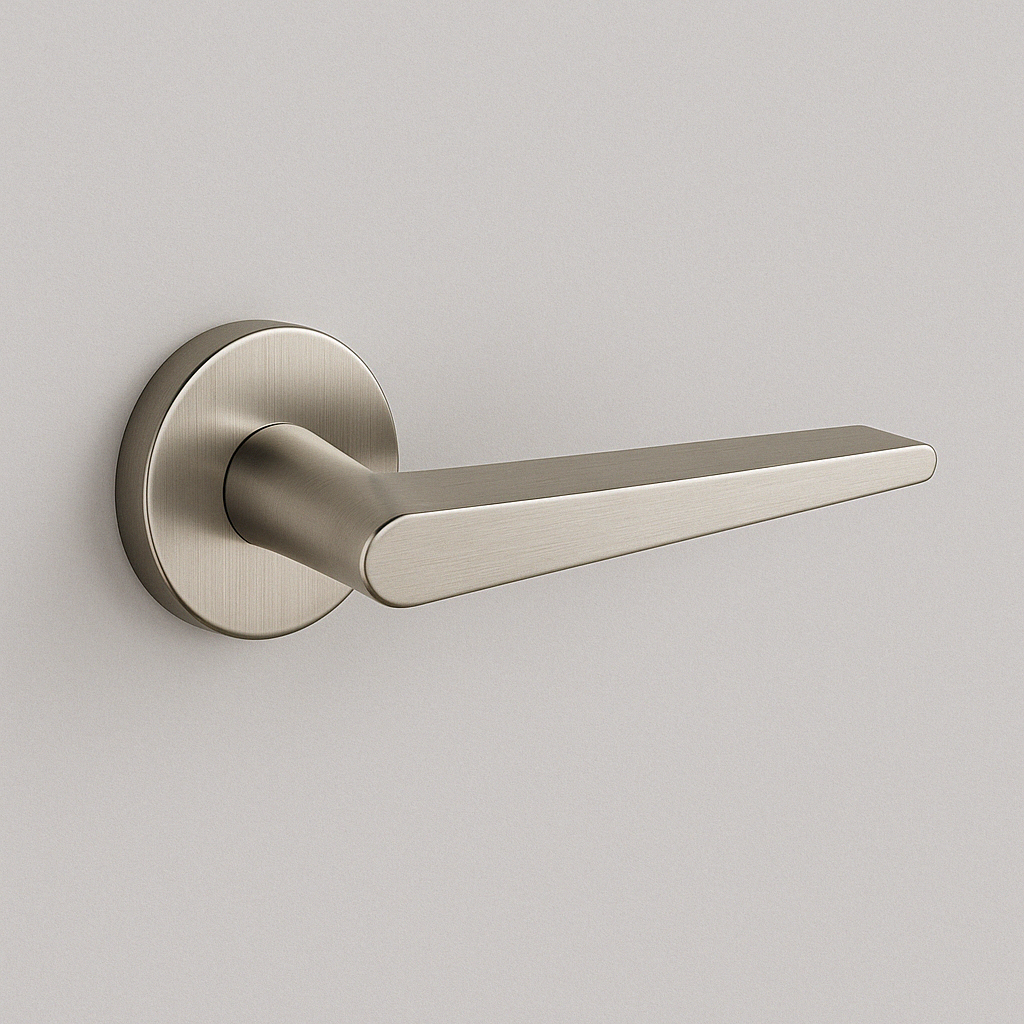

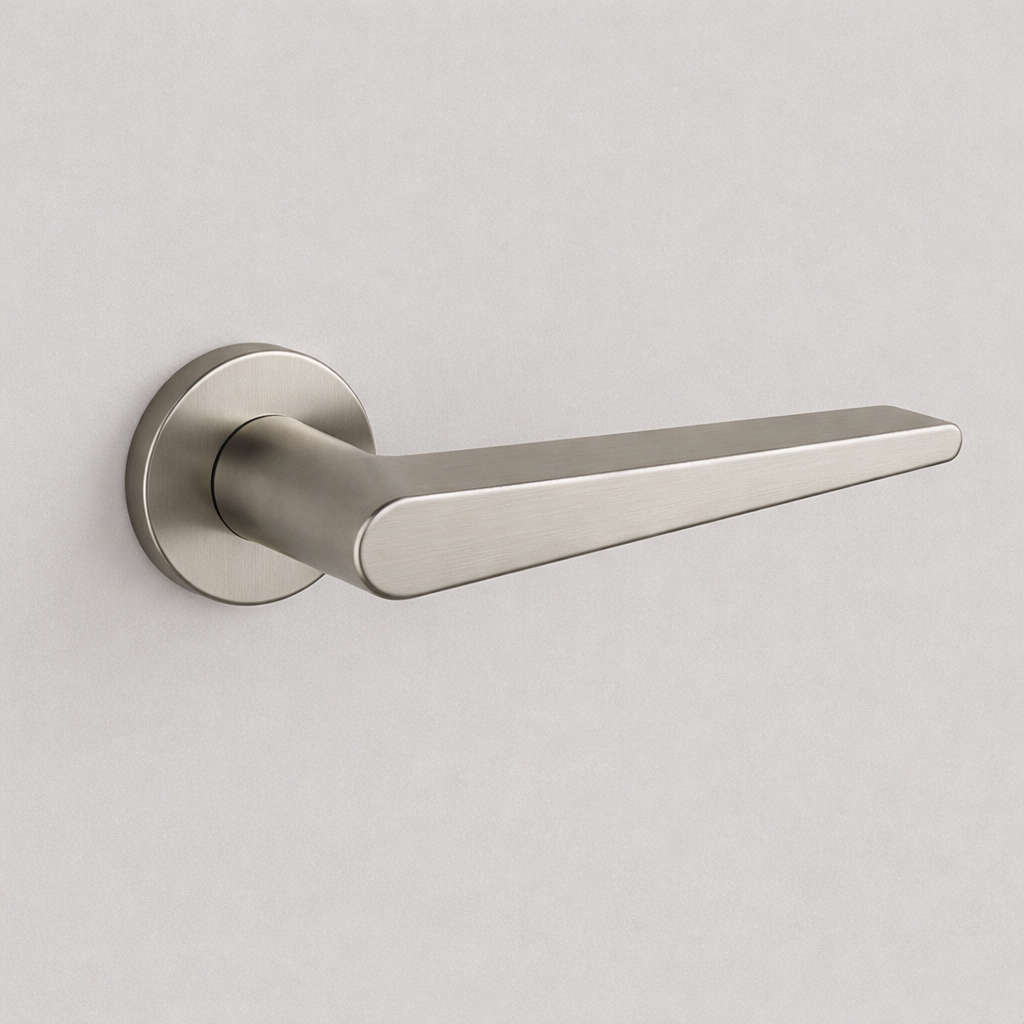

- Circle SM: Ø 52 mm (2 1/16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
- Circle LG: Ø 62 mm (2.44″) × D 10 mm (0.3″) — fits Ø 53.97 mm (2.12″) bore hole

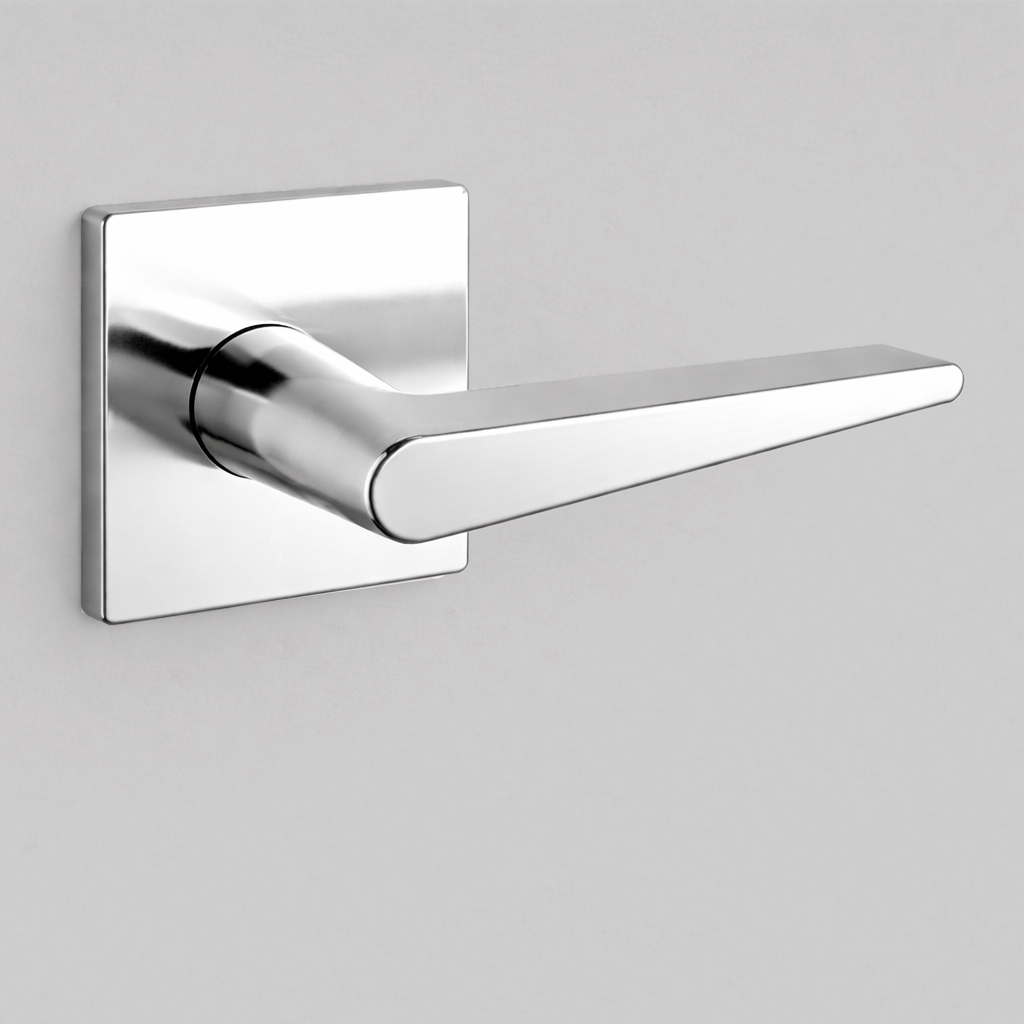

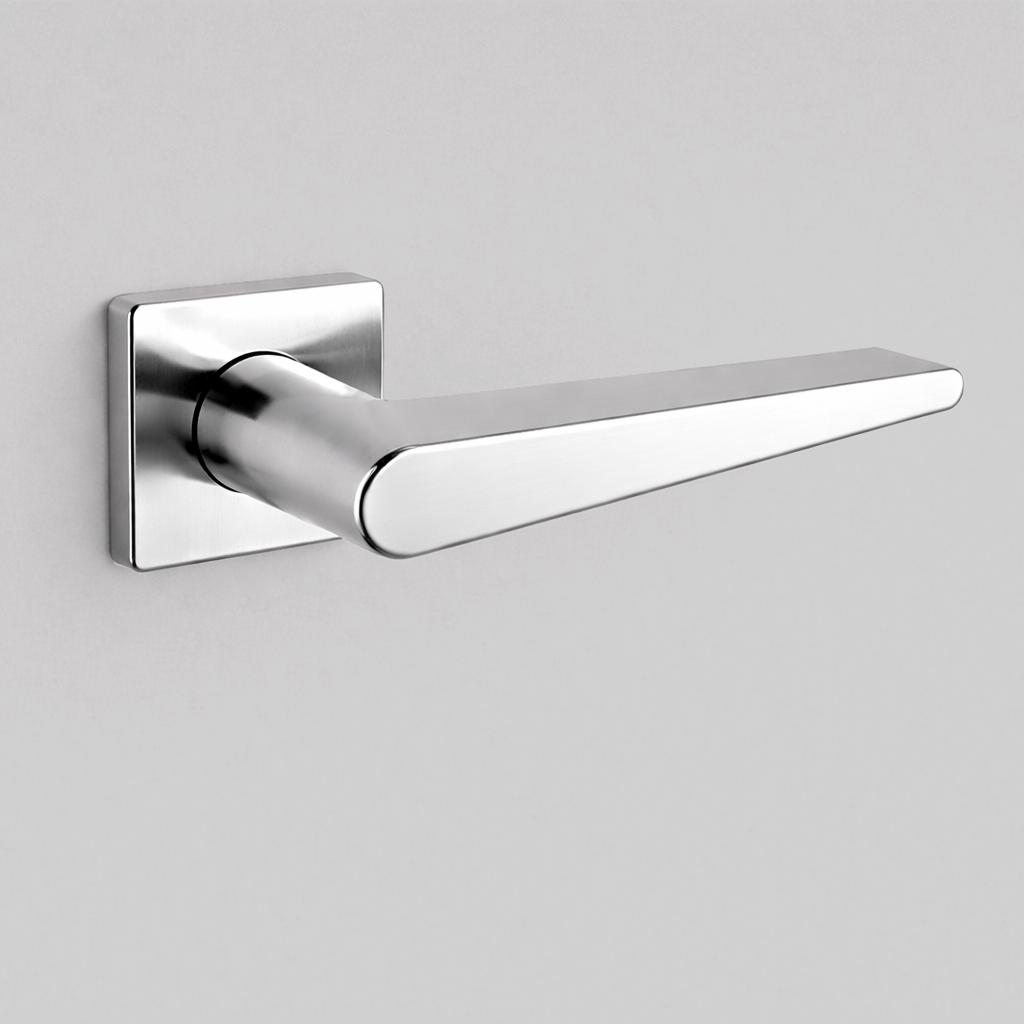

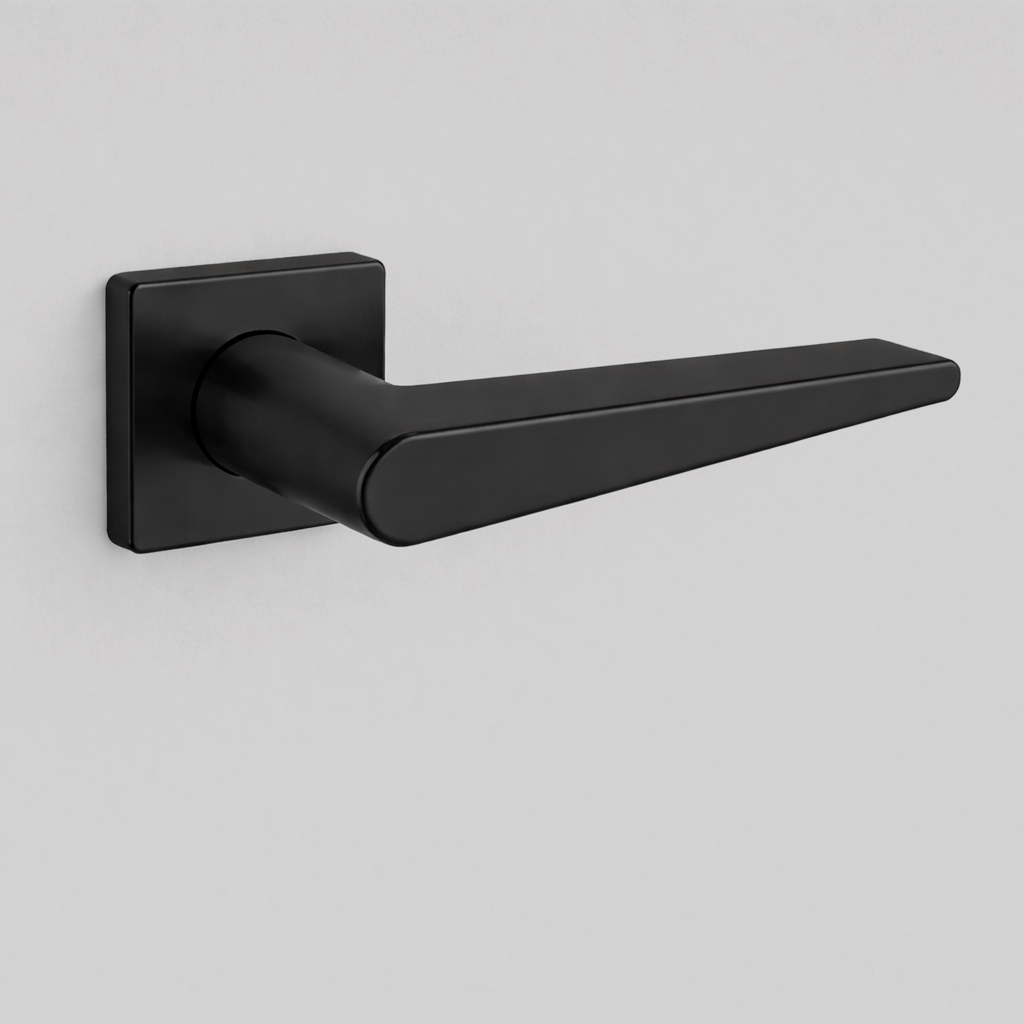

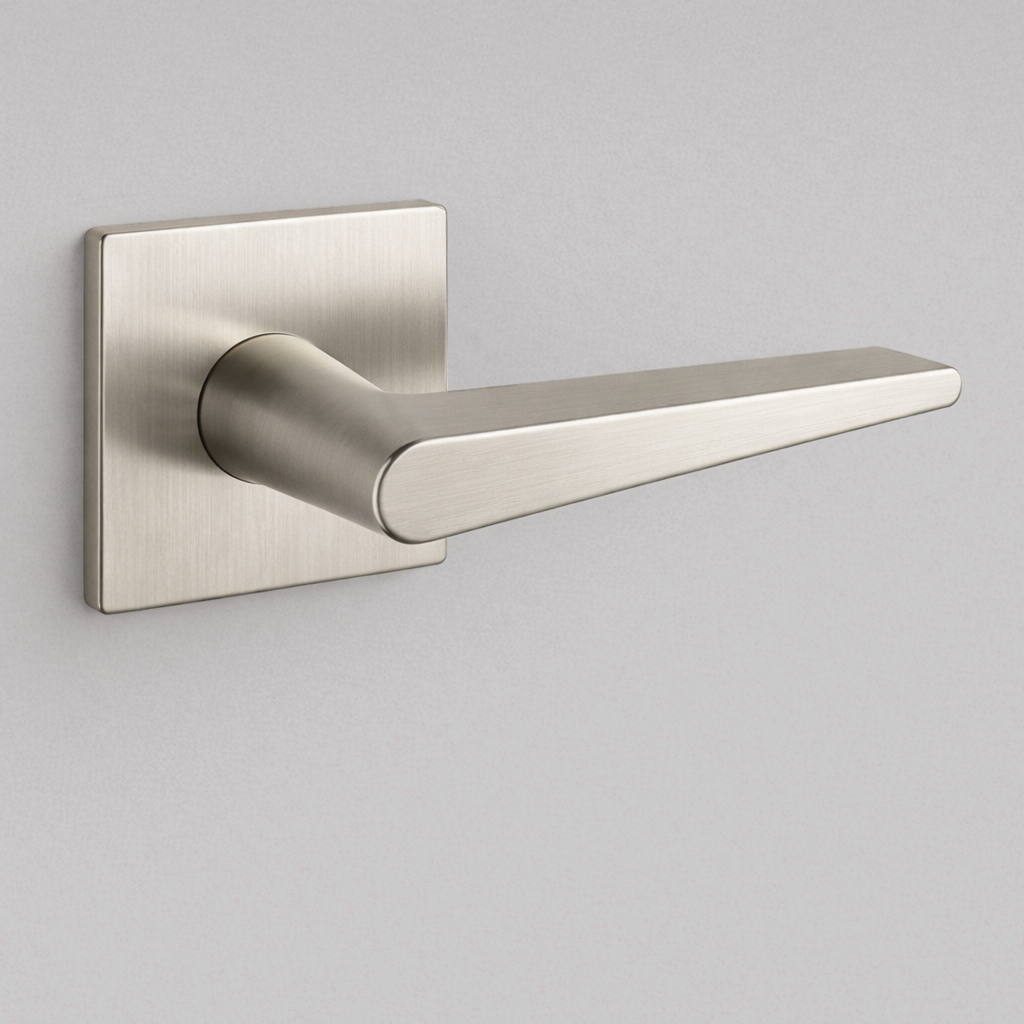

- Square SM: 55 mm × 55 mm (2.16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
- Square LG: 64 mm × 64 mm (2.5″) × D 10 mm (0.5″) — fits Ø 53.97 mm (2.12″) bore hole
Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Gohardware is not responsible for damages resulting from improper installation.
Materials

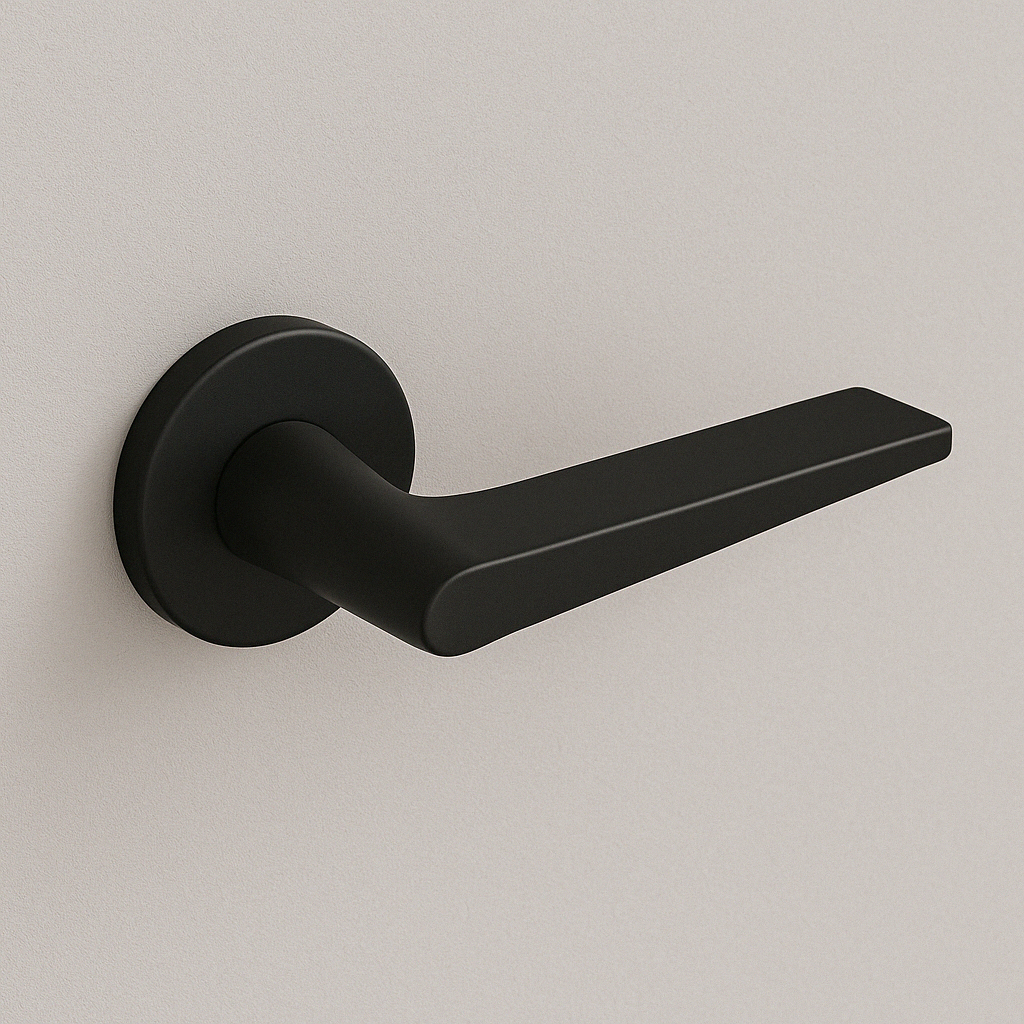

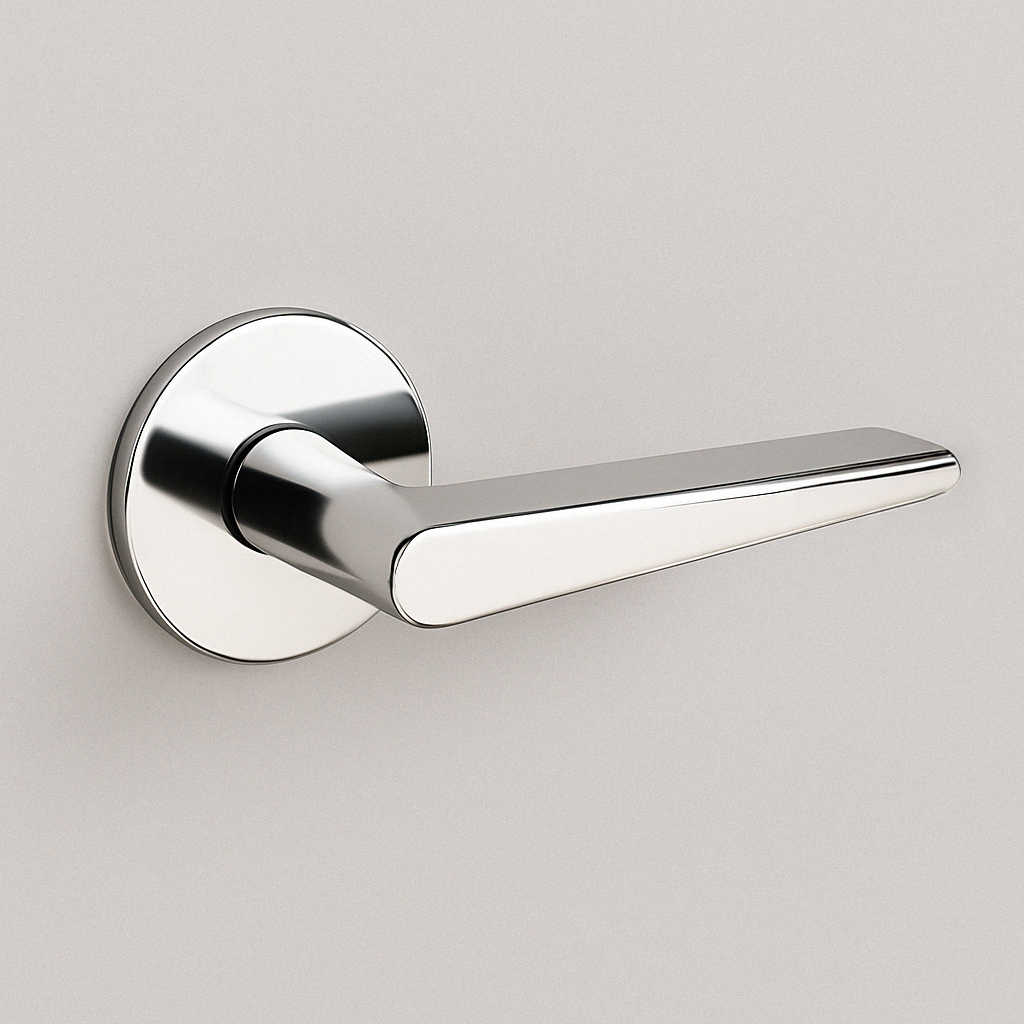

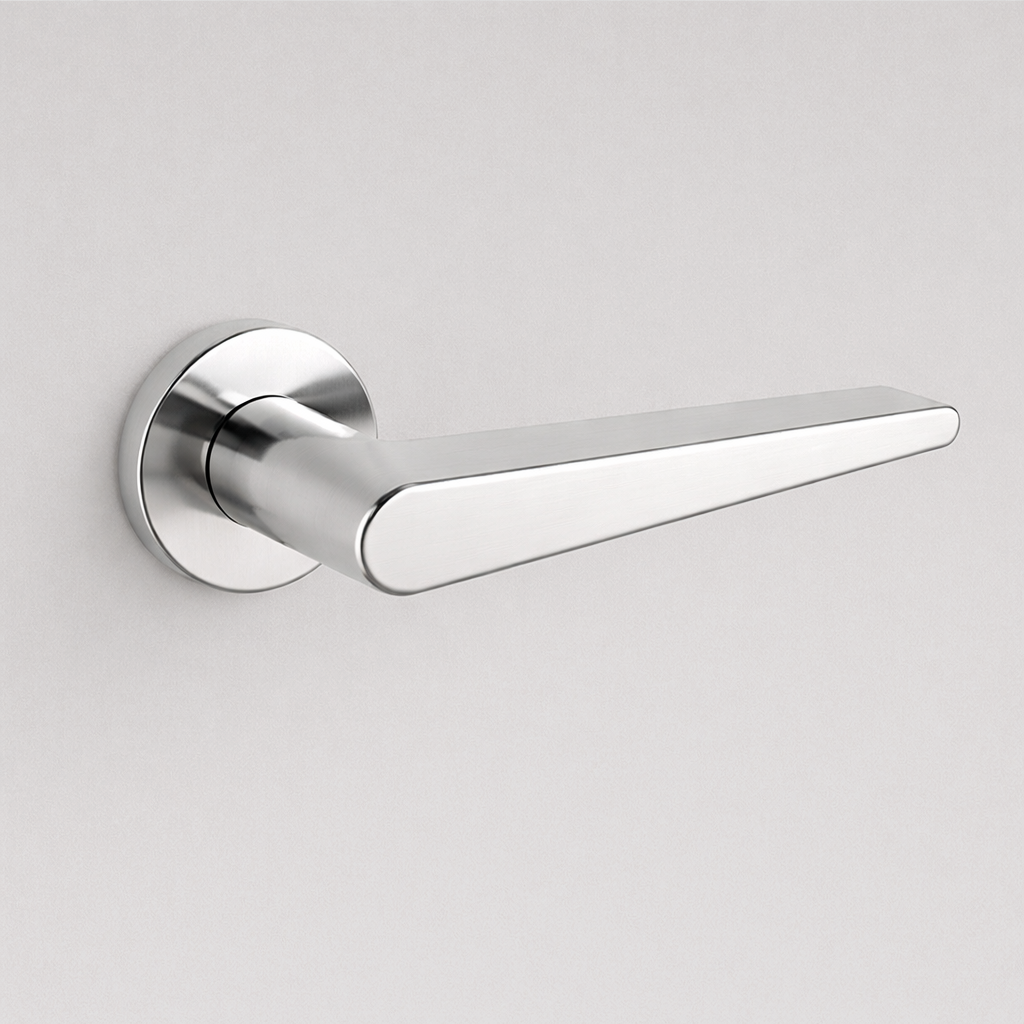

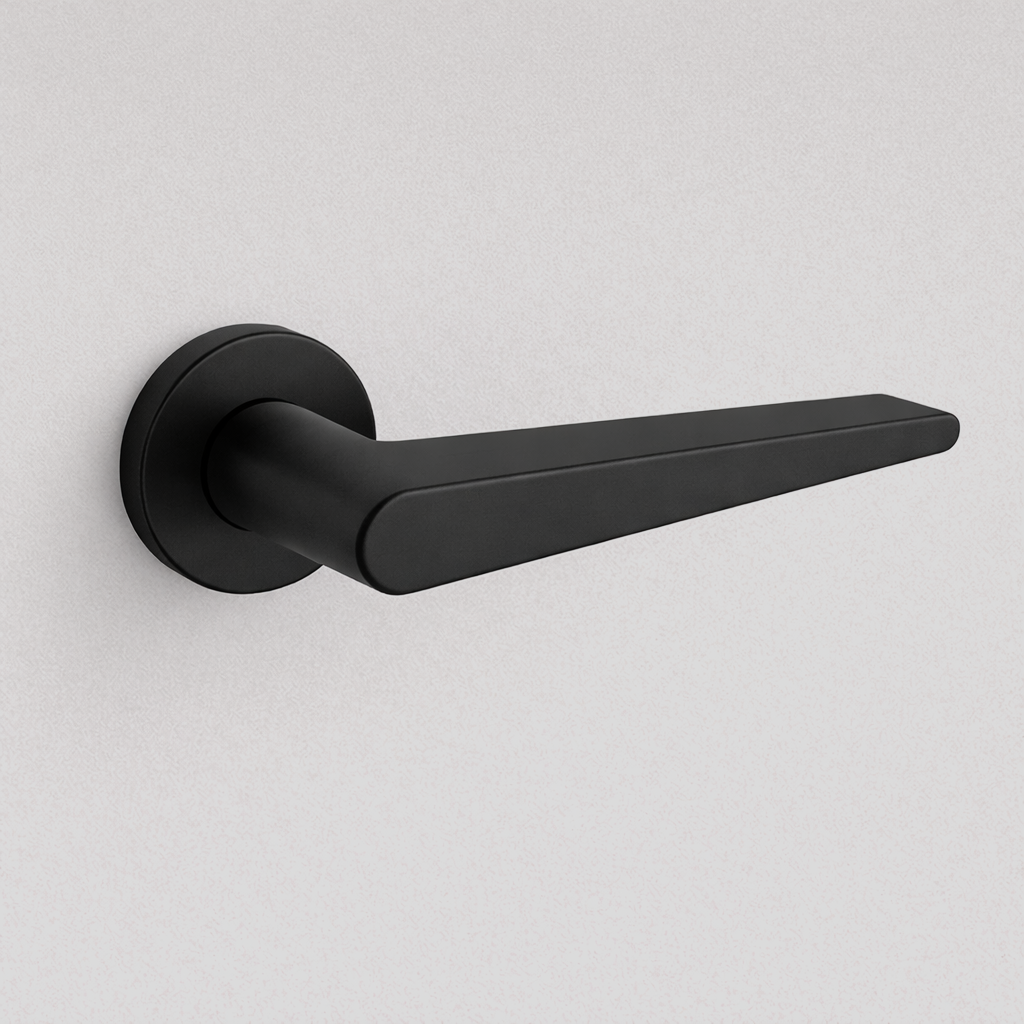

Solid stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.
Product Downloads
- Door Lever No. 135 Product Sheet (JPG)
- Door Lever No. 135 Drawing (PDF)
- Installation Guide (PDF)
- Heavy Duty Installation Guide (PDF)
- Rose 200 Drawing (PDF)
- Rose 201 Drawing (PDF)
- Rose 203 Drawing (PDF)
- Rose 204 Drawing (PDF)
- AHI Catalogue
