Description

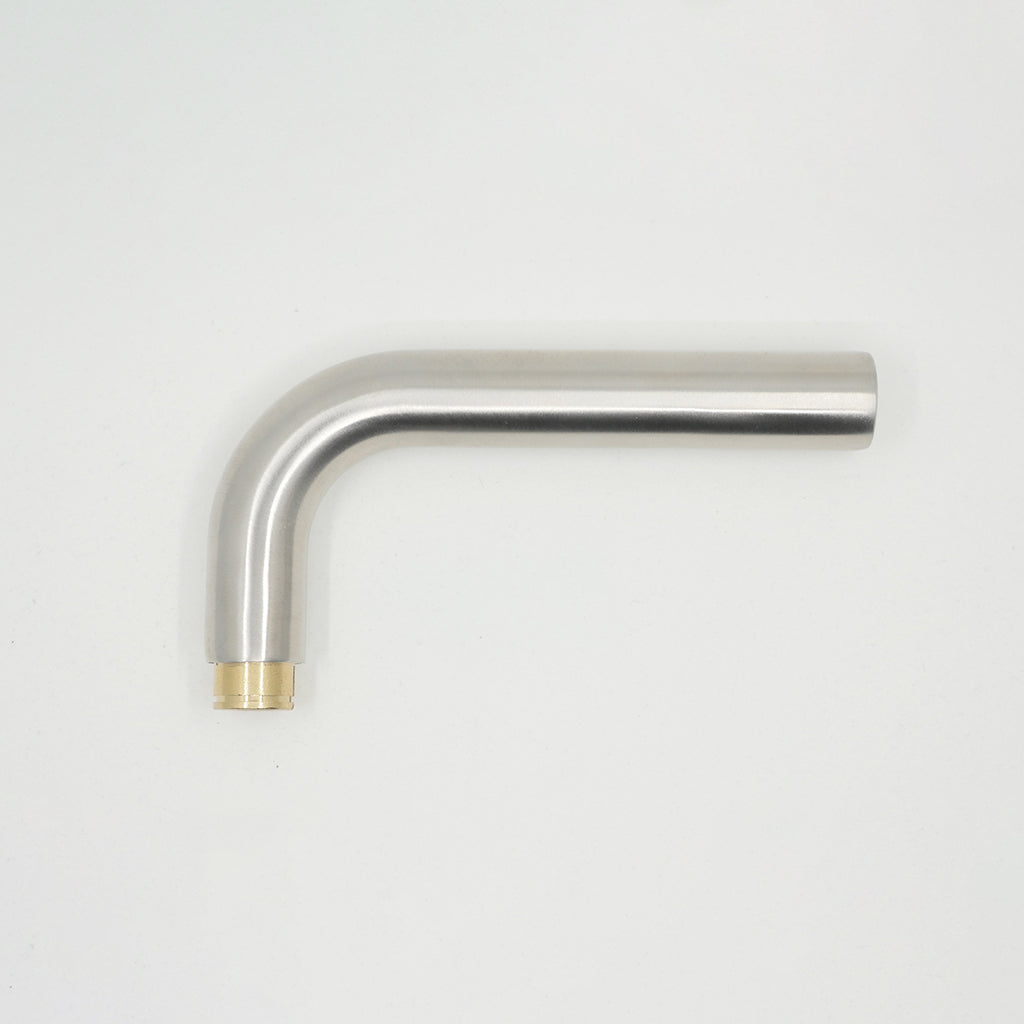

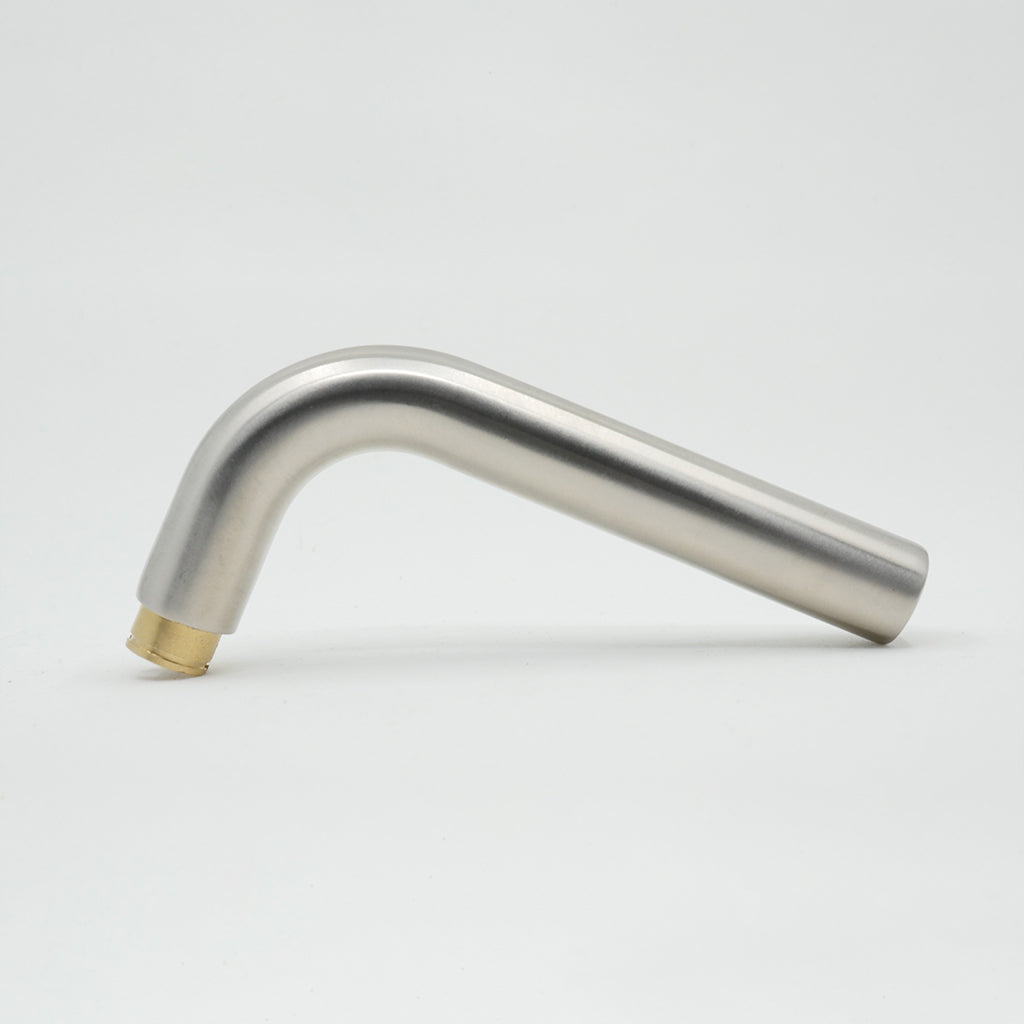

The AHI 105 Single Dummy Lever by AHI is a hollow stainless steel door lever with a slim cylindrical profile and gently curved form, configured for single dummy function — a decorative lever mounted on one side of the door with no operating latch. Ideal for closets and push/pull applications.
Also available in passage, privacy, and double dummy configurations.
Specifications
- Lever Dimensions: L 141 mm (5.56″) × W 22 mm (0.87″)
- Door Thickness: 1 3/8″ – 2″
- Thumb Turn: Push/pull pin on rose
- Rose Style:

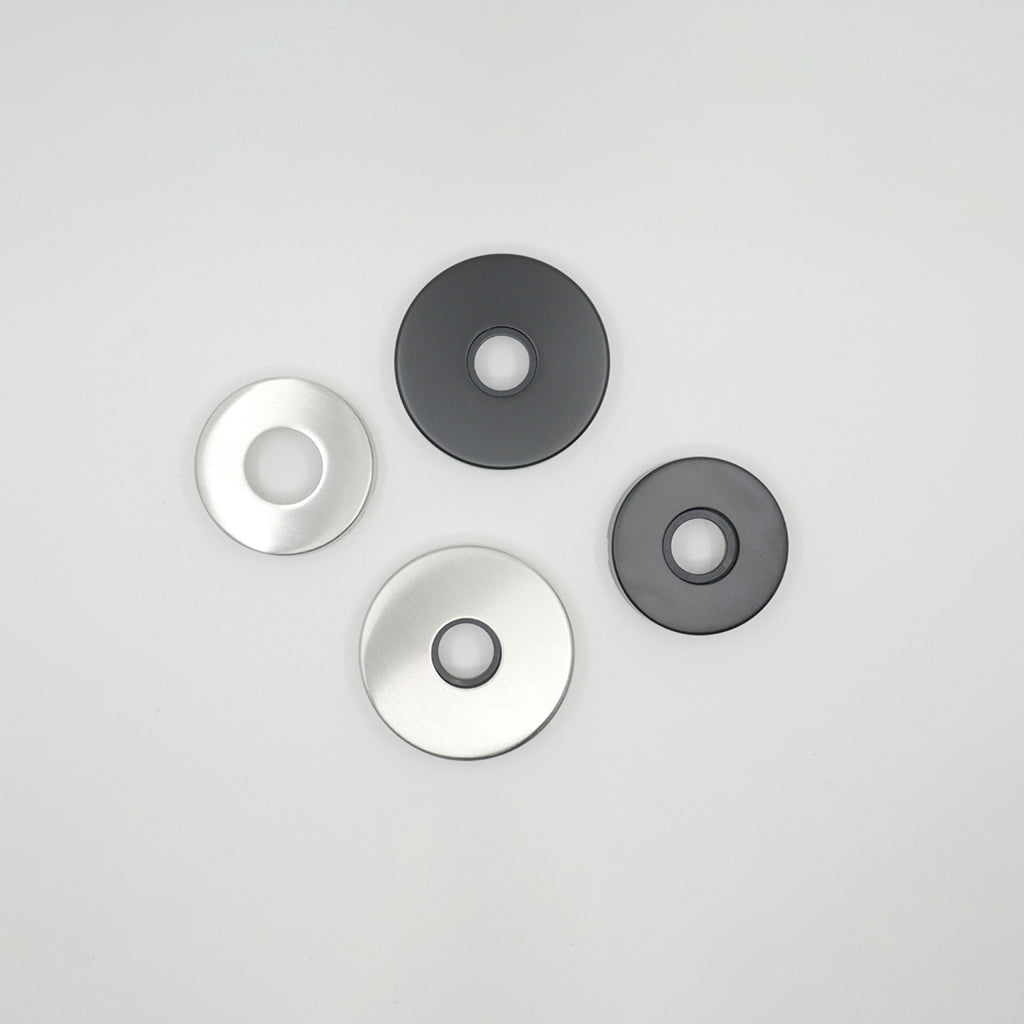

- Circle SM: Ø 52 mm (2 1/16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
- Circle LG: Ø 62 mm (2.44″) × D 10 mm (0.3″) — fits Ø 53.97 mm (2.12″) bore hole

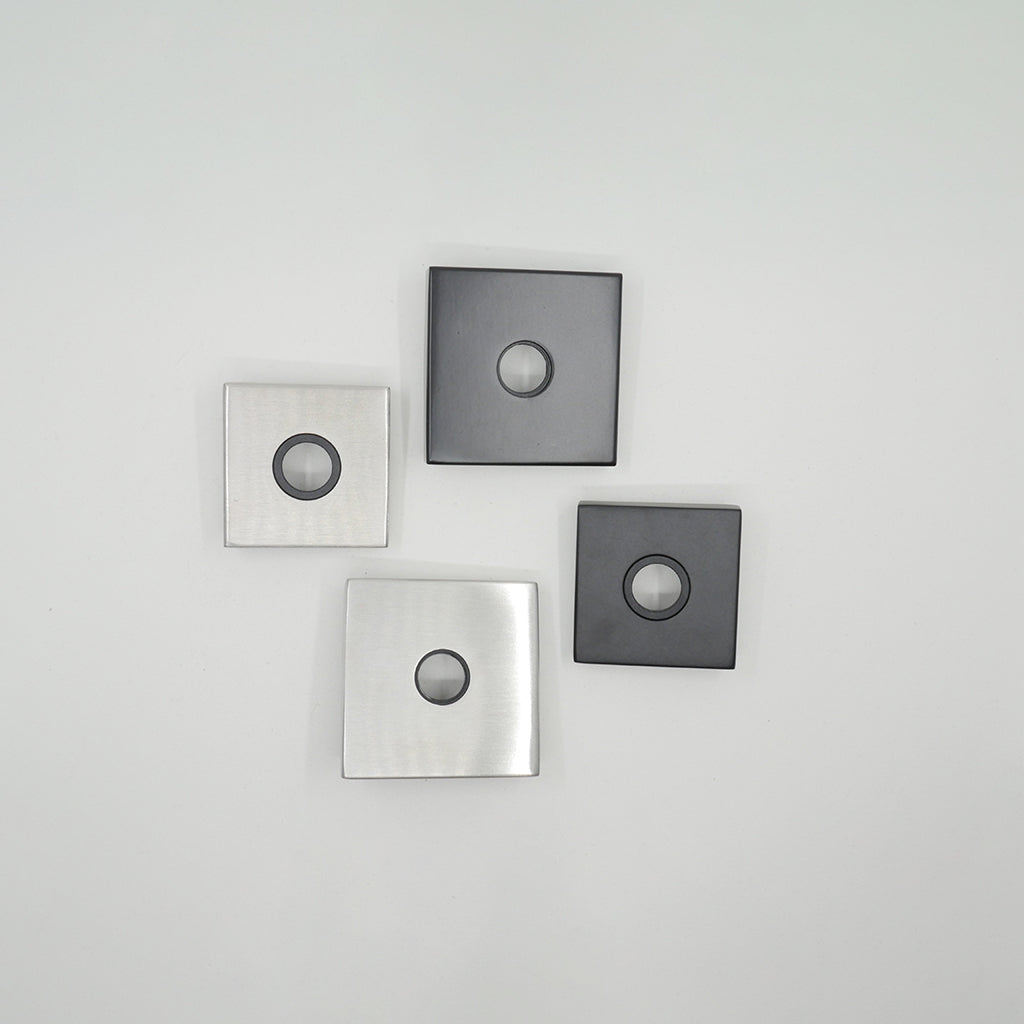

- Square SM: 55 mm × 55 mm (2.16″) × D 11 mm (0.4″) — fits Ø 19 mm (0.75″) bore hole
- Square LG: 64 mm × 64 mm (2.5″) × D 10 mm (0.5″) — fits Ø 53.97 mm (2.12″) bore hole
Installation Disclaimer: Pre-drilling or pre-milling for hardware components is not recommended until all items are received and measured. Slight variations may occur as many pieces are hand-finished. Gohardware is not responsible for damages resulting from improper installation.
Materials

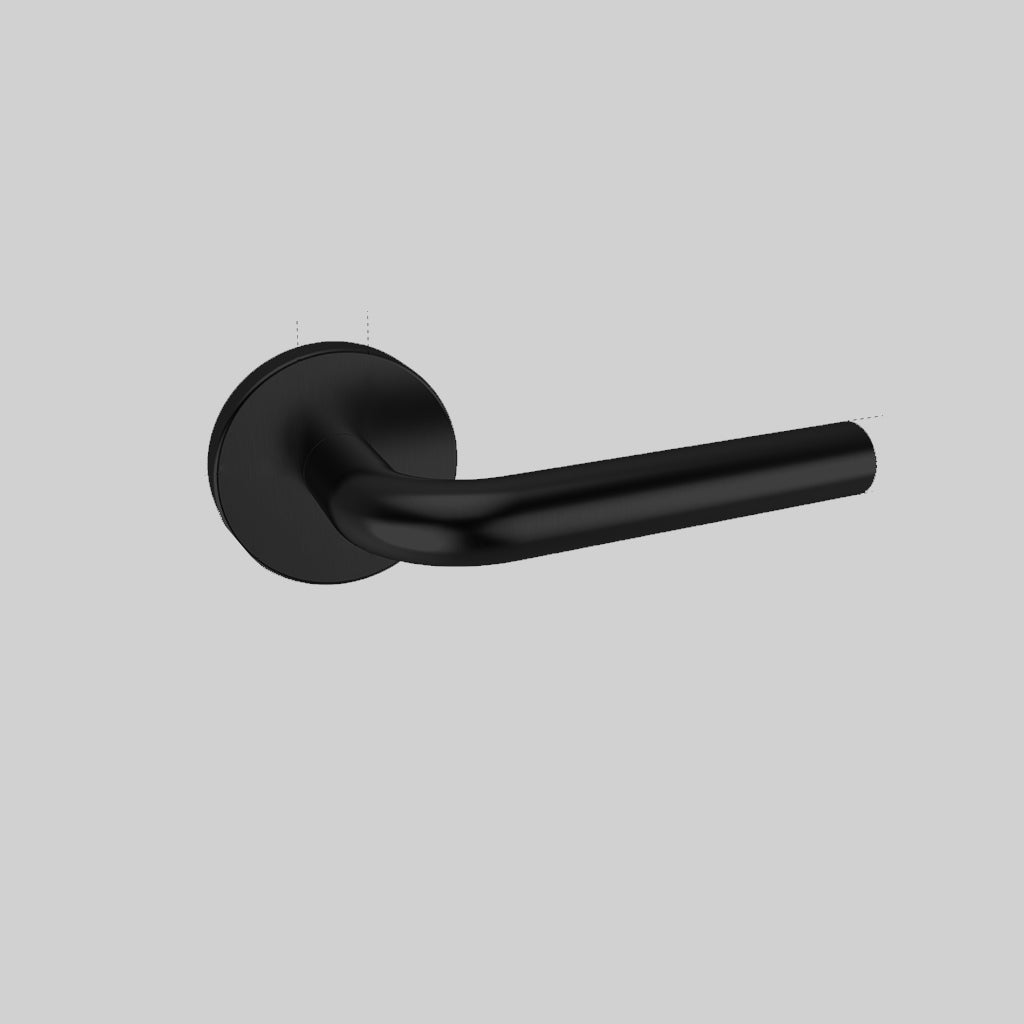

Hollow stainless steel. Available in satin stainless steel, mirror-polish stainless steel, and powder coated black.
Product Downloads
- AHI 105 Spec Sheet (PDF)
- AHI 105 Drawing 2D (PDF)
- AHI Catalogue
