Description
The AHI 103 Door Lever — Passage by AHI is a hollow stainless steel lever set in passage configuration, providing a latching closure without a locking mechanism. Suited to hallways, closets, and interior doors where secure closure is needed but privacy locking is not required.
Includes a pair of levers, tubular latch, and strike plate. Four rose styles accommodate standard and oversized bore preparations.
Specifications

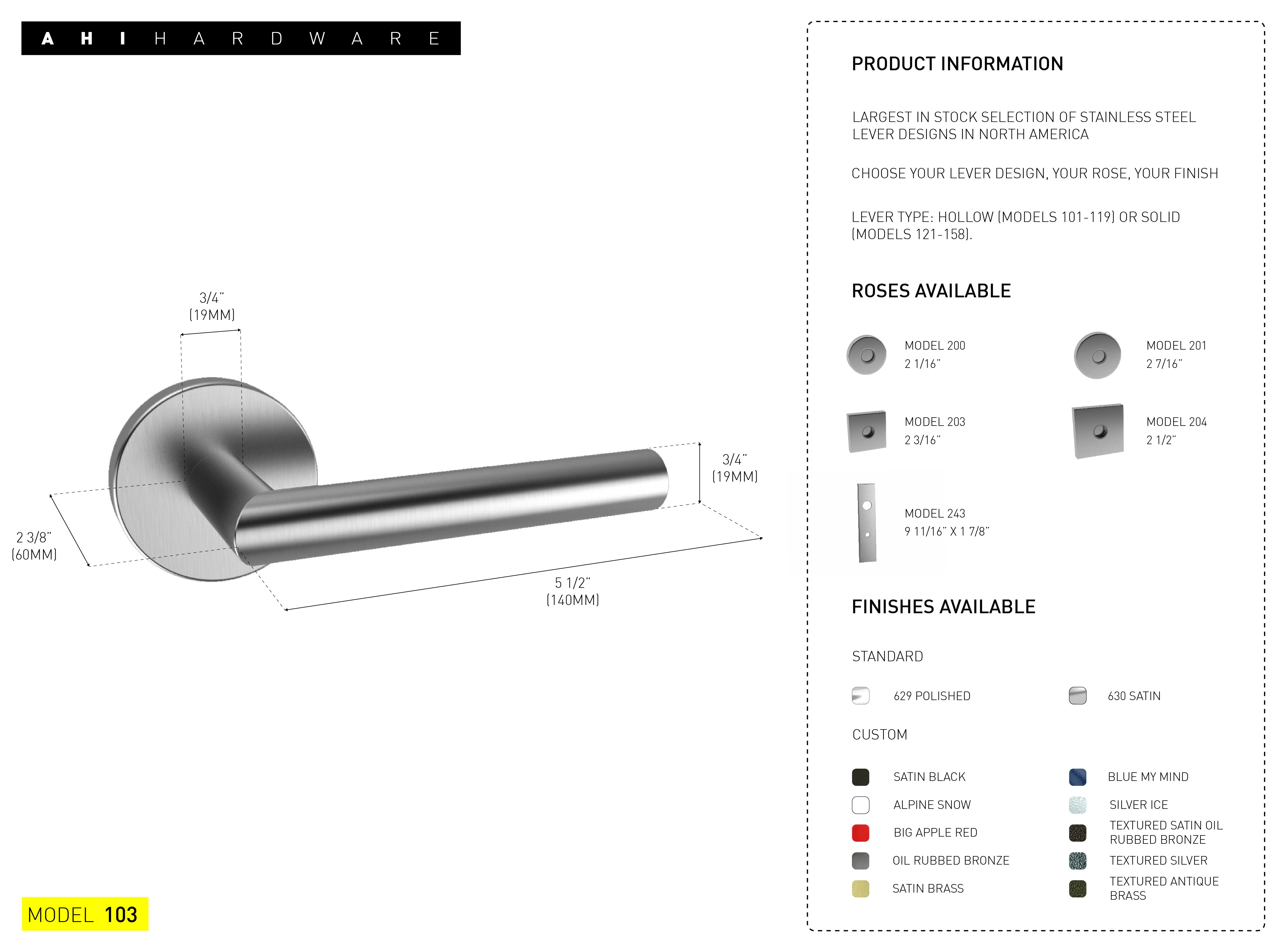

- Lever Dimensions: L 132 mm (5.2″) × W 23 mm (0.87″)
- Door Thickness: 1 3/8″ – 2″
-
Rose Options:
- Rose 200 (Circle SM): Ø 52 mm (2 1/16″) × D 11 mm (0.4″) · Fits Ø 19 mm (0.75″) bore hole
- Rose 201 (Circle LG): Ø 62 mm (2.44″) × D 10 mm (0.3″) · Fits Ø 53.97 mm (2.12″) bore hole
- Rose 203 (Square SM): 55 mm × 55 mm (2.16″) × D 11 mm (0.4″) · Fits Ø 19 mm (0.75″) bore hole
- Rose 204 (Square LG): 64 mm × 64 mm (2.5″) × D 10 mm (0.5″) · Fits Ø 53.97 mm (2.12″) bore hole
Materials
Hollow stainless steel construction.
Available Finishes

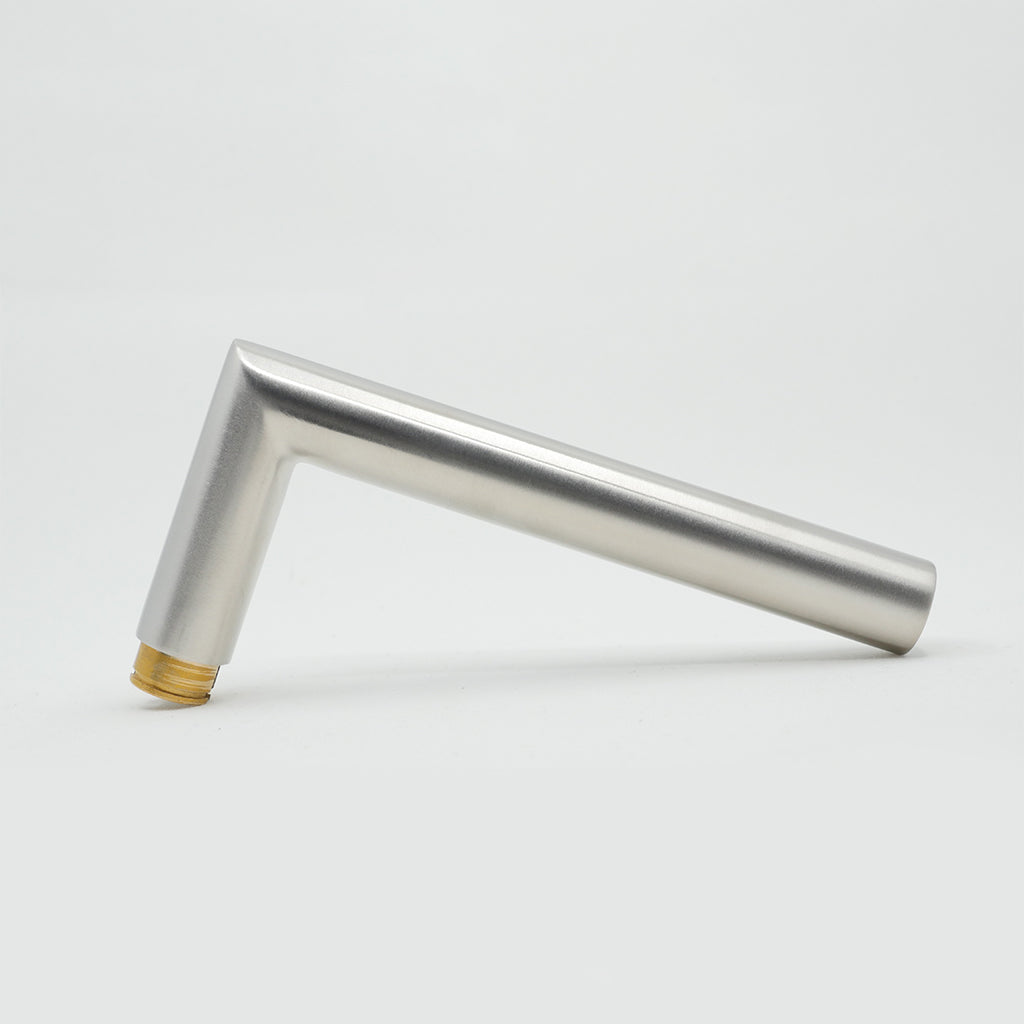

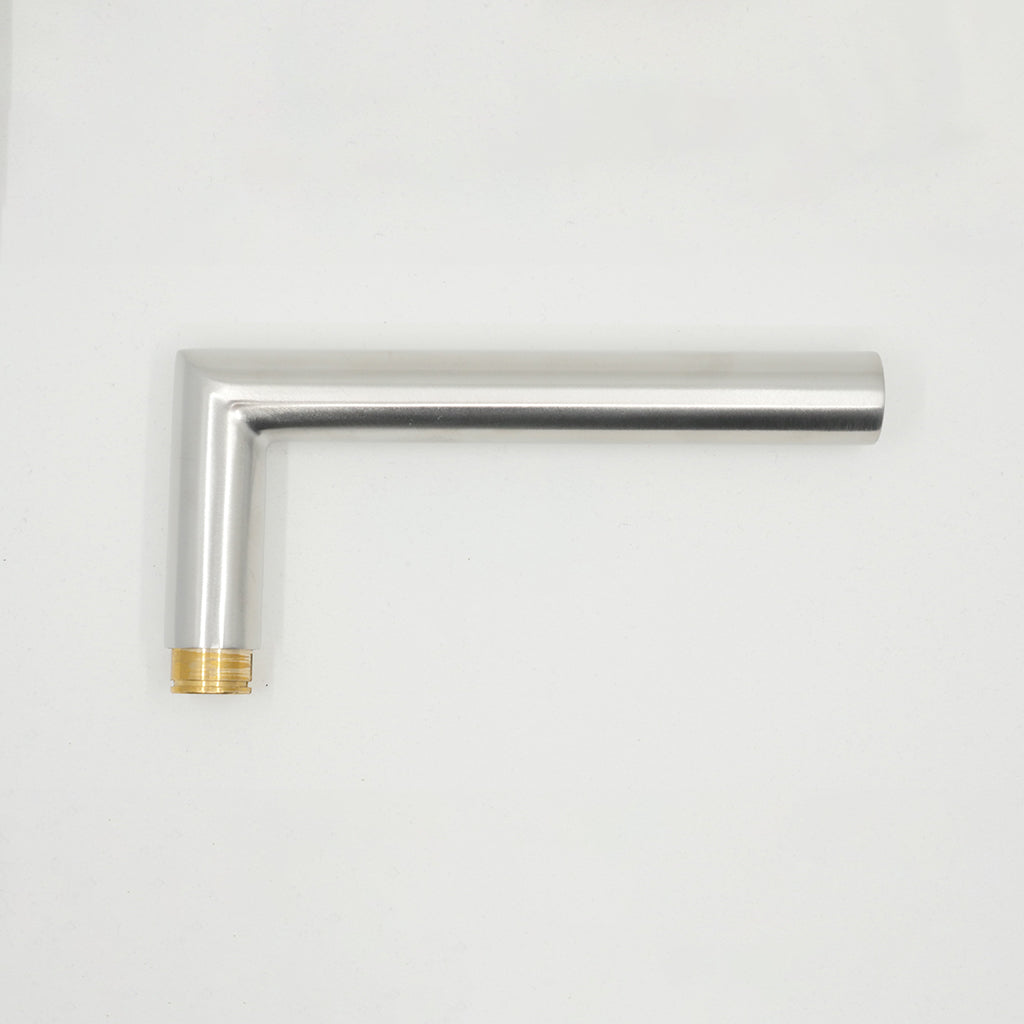

- Satin Stainless Steel

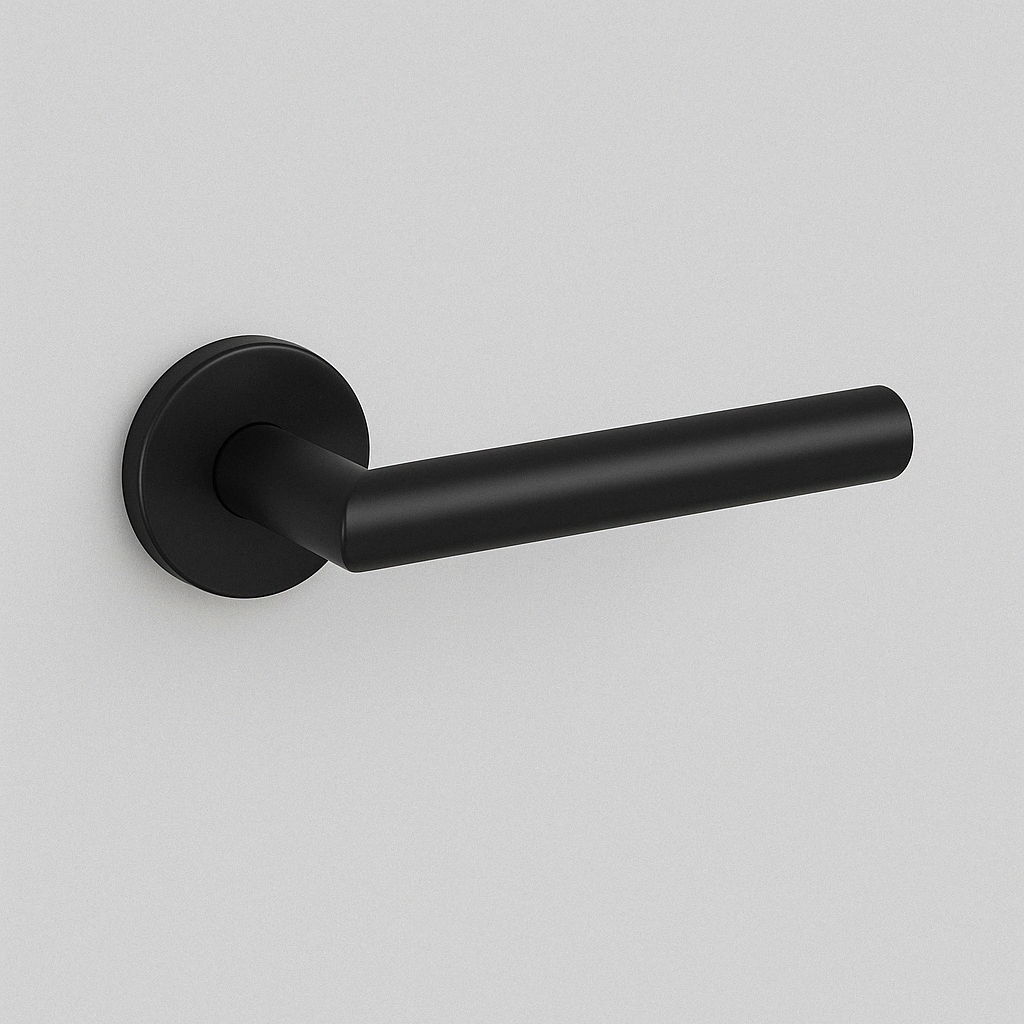

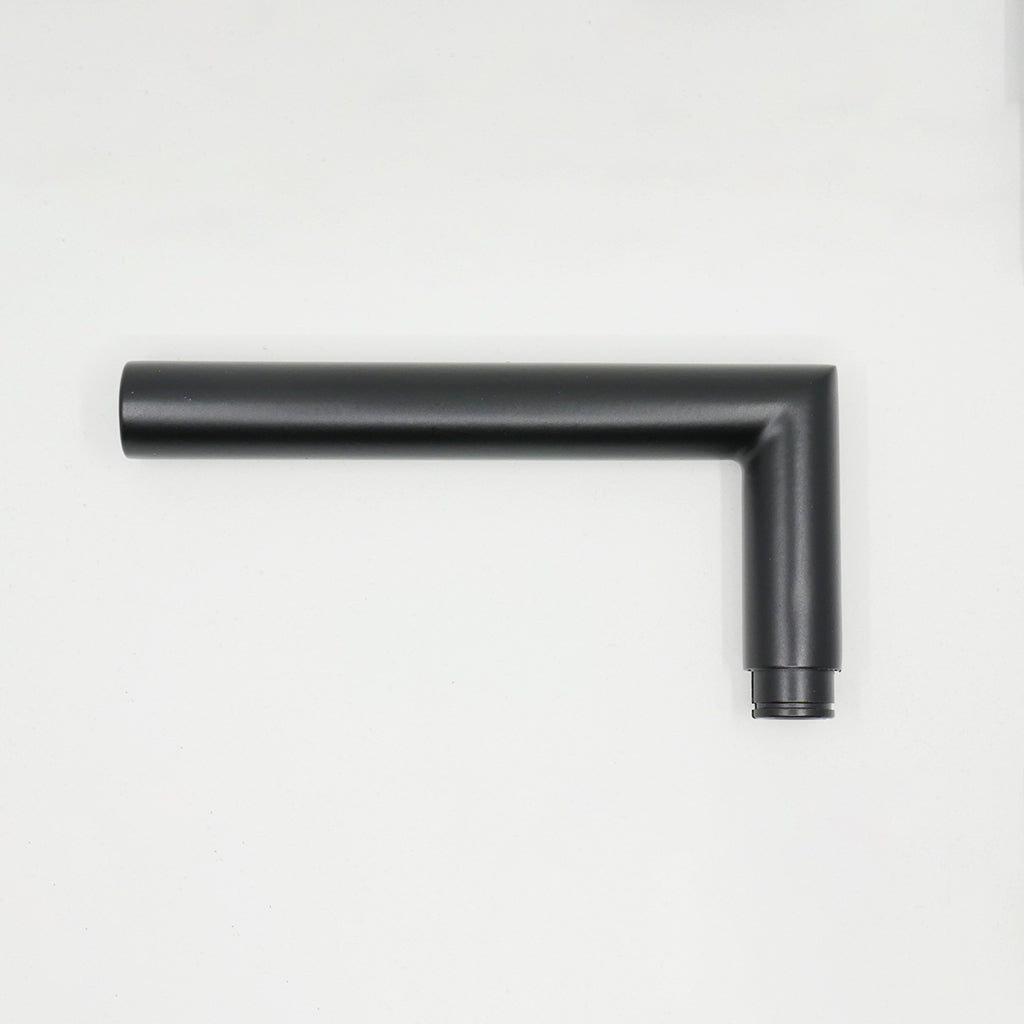

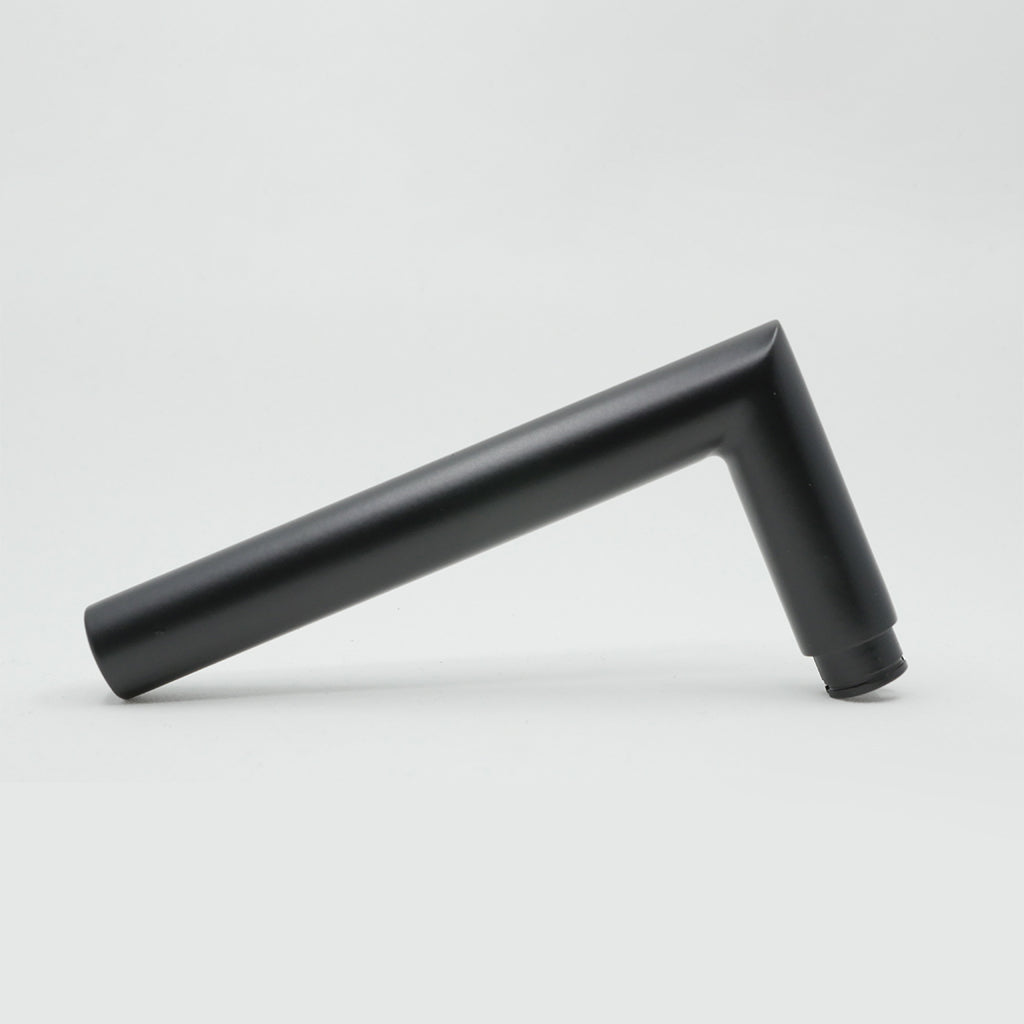

- Powder Coated Black
