Description

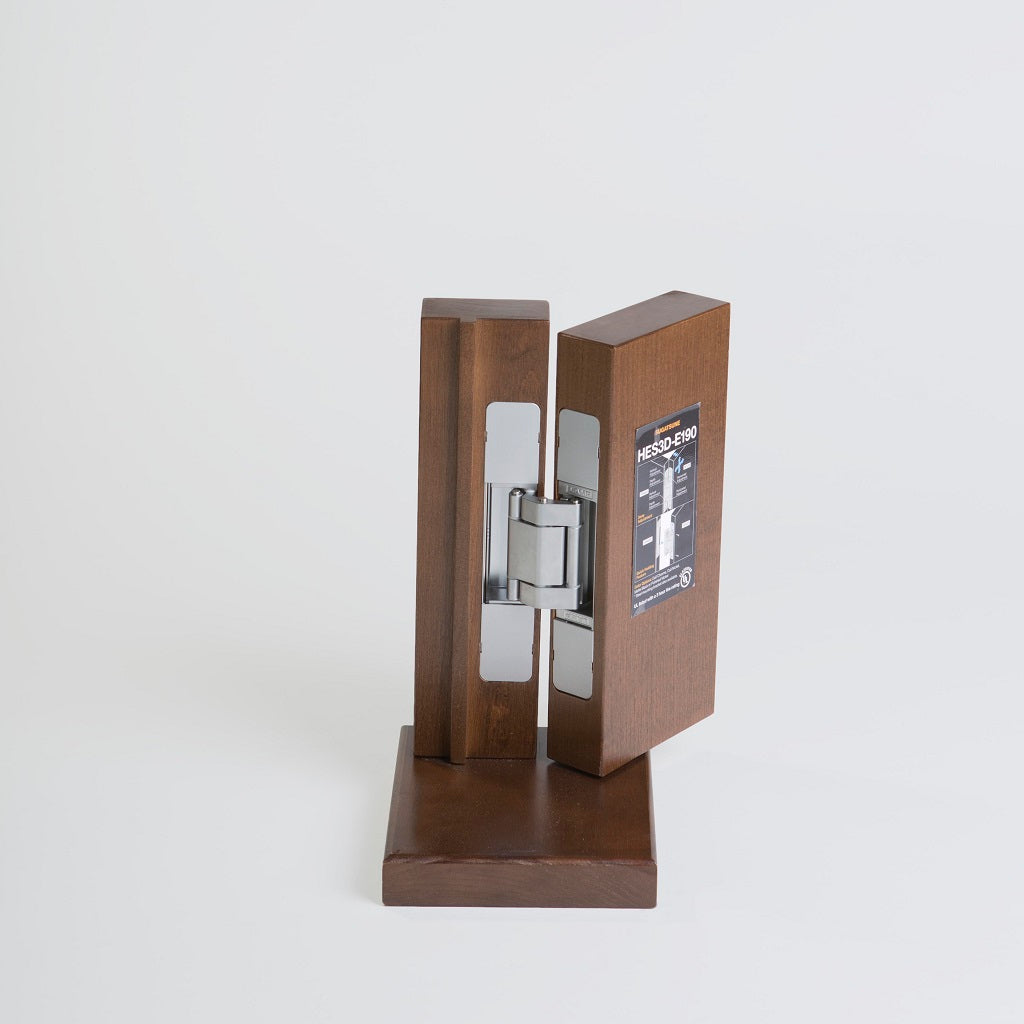

The Sugatsune Concealed Hinge by Sugatsune is a 3-way adjustable concealed door hinge — allowing vertical, horizontal, and depth adjustment after installation. Opens 180 degrees. Tested to 300,000 open/close cycles. The ultimate invisible hinge for flush-to-wall doors.
Specifications
- HES3D E190 Standard
- Max door: H 2400 mm (94-1/2″) x W 900 mm (35-7/16″)
- Max weight: 100 kg (220 lbs) with 2 hinges, 125 kg (275 lbs) with 3 hinges

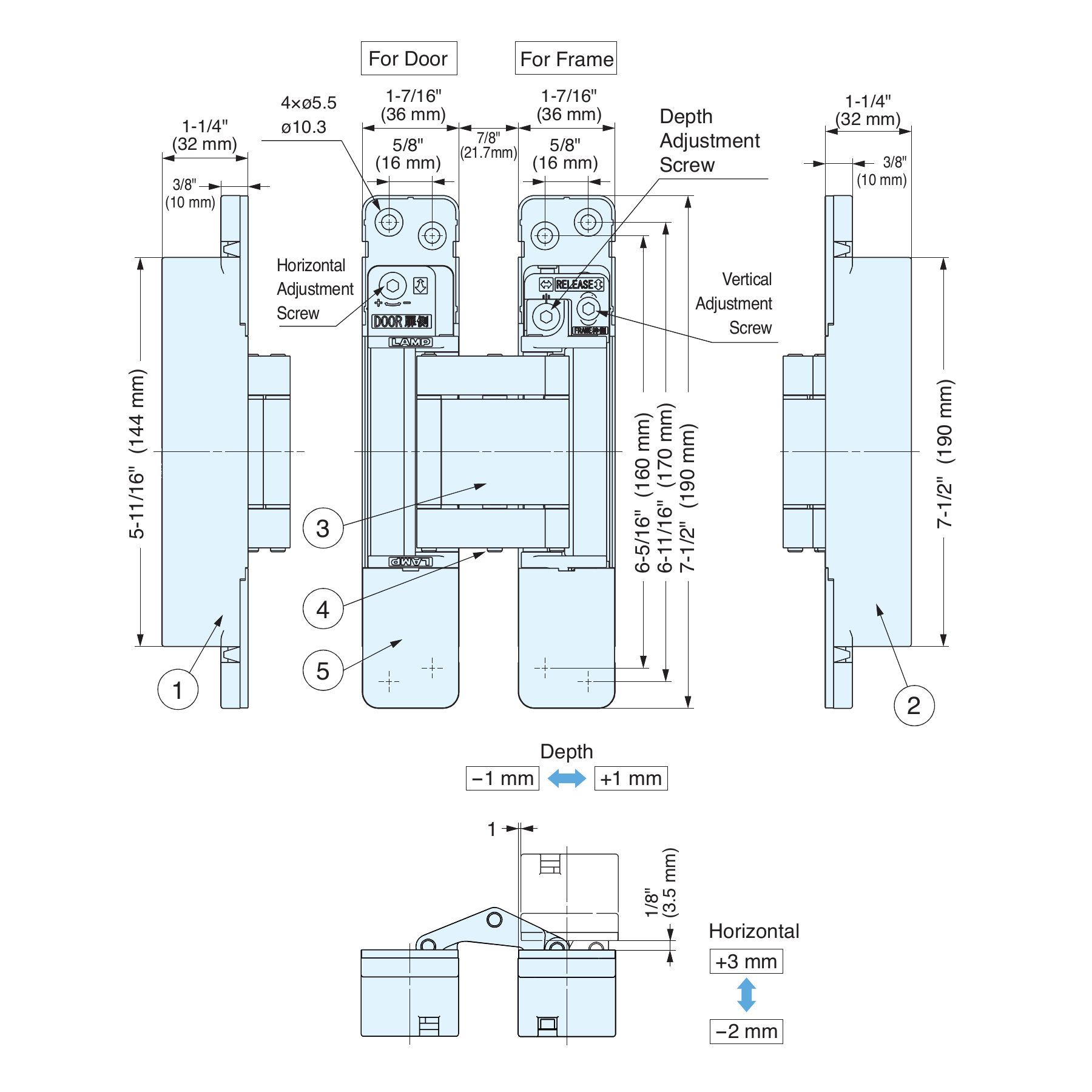

- HES3D W190 Wide Throw
- Wide-throw version for thicker jambs or casing
- 3-way adjustment: vertical, horizontal, and depth
- Opening: 180 degrees
- Cycle tests: 300,000 open/close
Materials
Zinc alloy and aluminum.

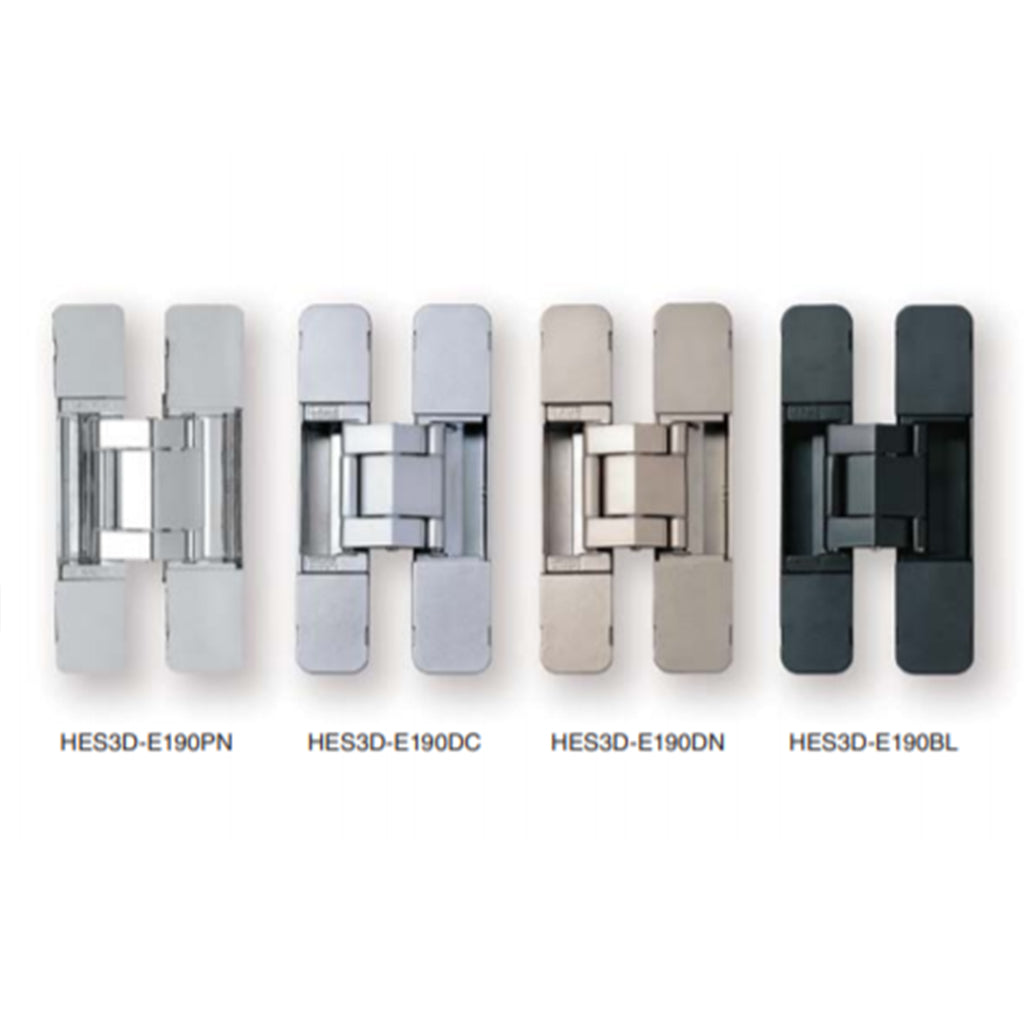

Available Finishes
- Matte Black
- Dull Chrome
- Dull Nickel
- Polished Nickel
Video Overview
Product Downloads
Product Sheets
- HES3D E190 Product Sheet
- HES3D Concealed Hinge Product Sheet
- HES3D Concealed Hinge Template
- Additional Components
