Description
The Top Mounted Barn Door Hardware by 1925Workbench is a premium top-mount sliding door system showcasing heritage craftsmanship and exposed mechanisms. Tracks are custom-cut to exact length. Rated for doors up to 200 lbs.
Designed and manufactured in Toronto by 1925Workbench. Patented in Canada and the USA.
Tracks are custom-cut to your exact length. Contact us with the following for a quote:
- Style: Top Mount / Face Mount / Bi-Part
- Finish: Brass / Raw Steel / Stainless Steel / Black
- Length
- Drilling: Pre-drilled or Not drilled
Specifications
- Pre-Drilled vs. Not Pre-Drilled
- Pre-drilled holes are spaced evenly every 14.75″–17.25″ along the track
- Pre-drilled tracks must be mounted on a backing piece to clear baseboards or moldings
- Not pre-drilled tracks require on-site drilling and can be installed directly to the wall if baseboards are flush with adequate blocking
- For Black Powder Coated “Not Pre-Drilled” orders, a hole is drilled 1.5″ from each end for the powder coating process
- Track Length & Measuring
- Track length: order at least twice the width of the door plus a minimum 2″ overlap on each side
- Door should be 4″ wider than the opening (2″ overlap per side) and large enough to cover any door casing
- Tracks over 93″ ship in two pieces
- Recommended headroom: 8″–10″ (minimum 6″)
- Weight Capacity
- Rated for doors up to 200 lbs per pair of hangers
- Actual capacity varies depending on how the track is fastened to the wall
- Additional Components
- Door guides (floor or wall mount) included in kit — extra floor guides available separately
- Floor Guide: Bracket mounted on the floor at the bottom of the door
- Wall Guide: Mounts to baseboards or wall
- Price includes hardware only. Door and header piece not included.
Materials

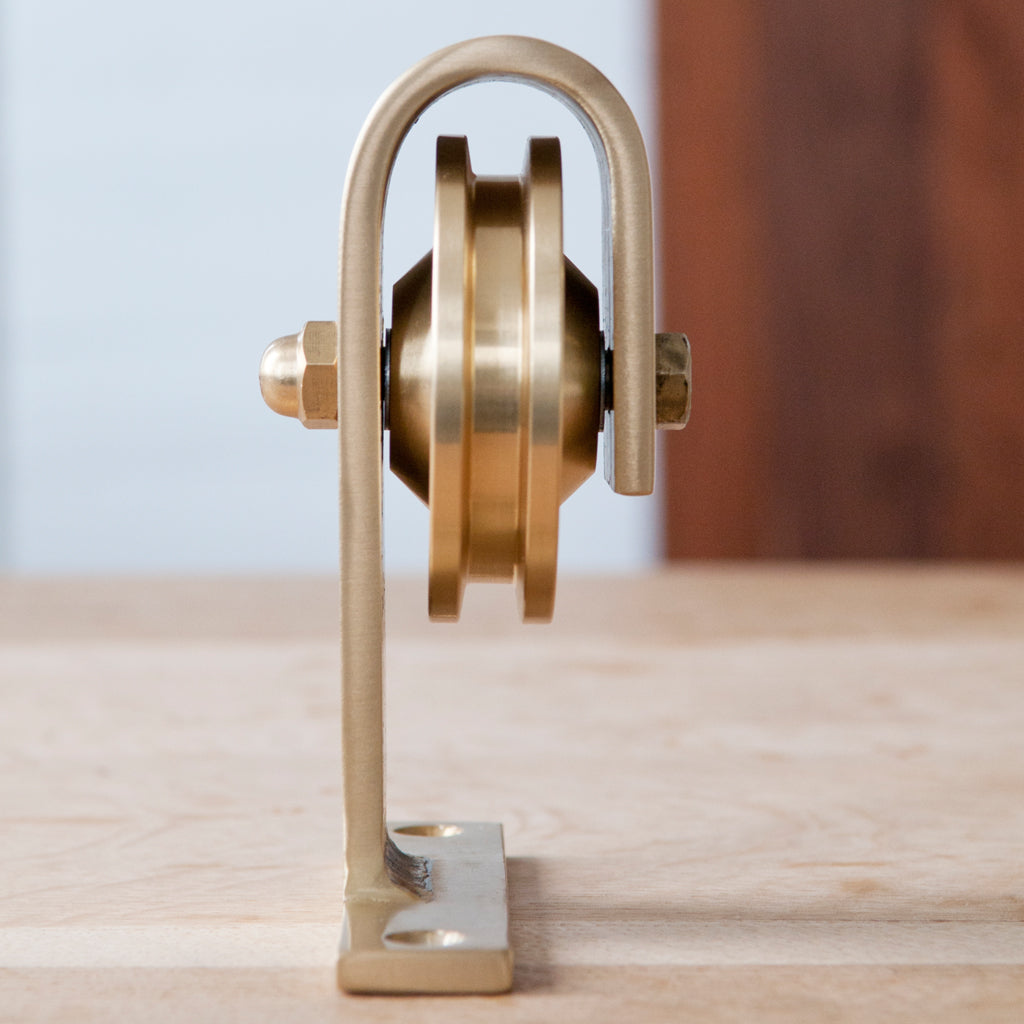

Crafted from solid brass, stainless steel, and hot rolled steel. High-quality solid brass rollers with double built-in ball bearings deliver smooth, quiet door motion.
Available Finishes
- Solid Brass (light oil coat — will develop patina over time)
- Stainless Steel (hand-brushed)
- Hot Rolled Steel (raw, minimal treatment)
- Matte Black (powder coated)
Suitable for outdoor applications — finishes will patina more quickly when exposed to the elements.
