Mineral Metal Appliance Bar Pull — 2 Posts

Description

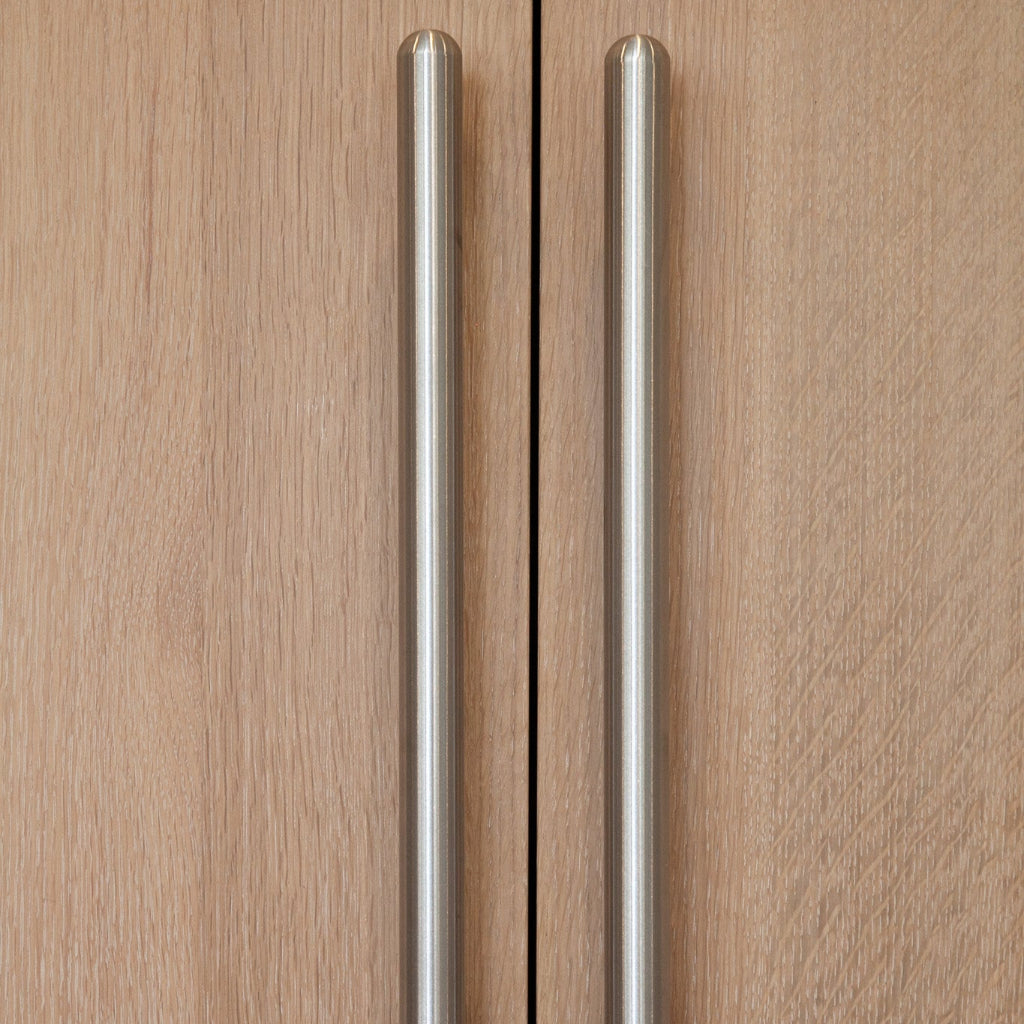

The Mineral Metal Appliance Pull by Chapman & Bose is a substantial bar pull crafted from solid brass and stainless steel, designed for integrated refrigerators, dishwasher panels, tall pantry doors, and other large appliance applications. Its elongated, softly rounded profile delivers a minimalist aesthetic with confident presence.

Available in 5/8″ and 1″ diameters, in lengths from 12″ to 36″. Choose between 2-standoff and 3-standoff configurations depending on your application.

Explore the full Chapman & Bose collection here.

Two vs. Three Standoffs

Standoff count is application-based rather than determined by panel size or weight. Two standoffs are suitable for the majority of installations. For pulls over 24″ in the 1″ diameter — particularly on built-in refrigerator panels (e.g., Sub-Zero integrated) — three standoffs may be recommended for additional support. In the 1-1/4″ diameter, two standoffs are sufficient for all lengths; a third is an aesthetic choice.

See the 3-standoff version.

Specifications — 2 Posts

1″ Diameter (25.4 mm) — Projection: 51 mm (2″):

• 18″: 457 mm L
• 24″: 610 mm L
• 30″: 762 mm L
• 36″: 914 mm L

5/8″ Diameter (15.88 mm) — Projection: 37 mm (1.46″):

• 12″: 305 mm L
• 18″: 457 mm L
• 24″: 610 mm L
• 30″: 762 mm L
• 36″: 914 mm L

Specifications — 3 Posts

1″ Diameter (25.4 mm) — Projection: 51 mm (2″):

• 24″: 610 mm L
• 30″: 762 mm L
• 36″: 914 mm L

5/8″ Diameter (15.88 mm) — Projection: 37 mm (1.46″):

• 24″: 610 mm L
• 30″: 762 mm L
• 36″: 914 mm L

Materials

Solid brass and stainless steel throughout.

Finishes

• Satin Brass
• Polished Brass
• Unlacquered Raw Brass
• Weathered Brass
• Blackened Brass
• Polished Stainless Steel
• Brushed Stainless Steel

Product Downloads

• Mineral Bar Pull Product Sheet (PDF)
