Knud Shower Door Set

Description

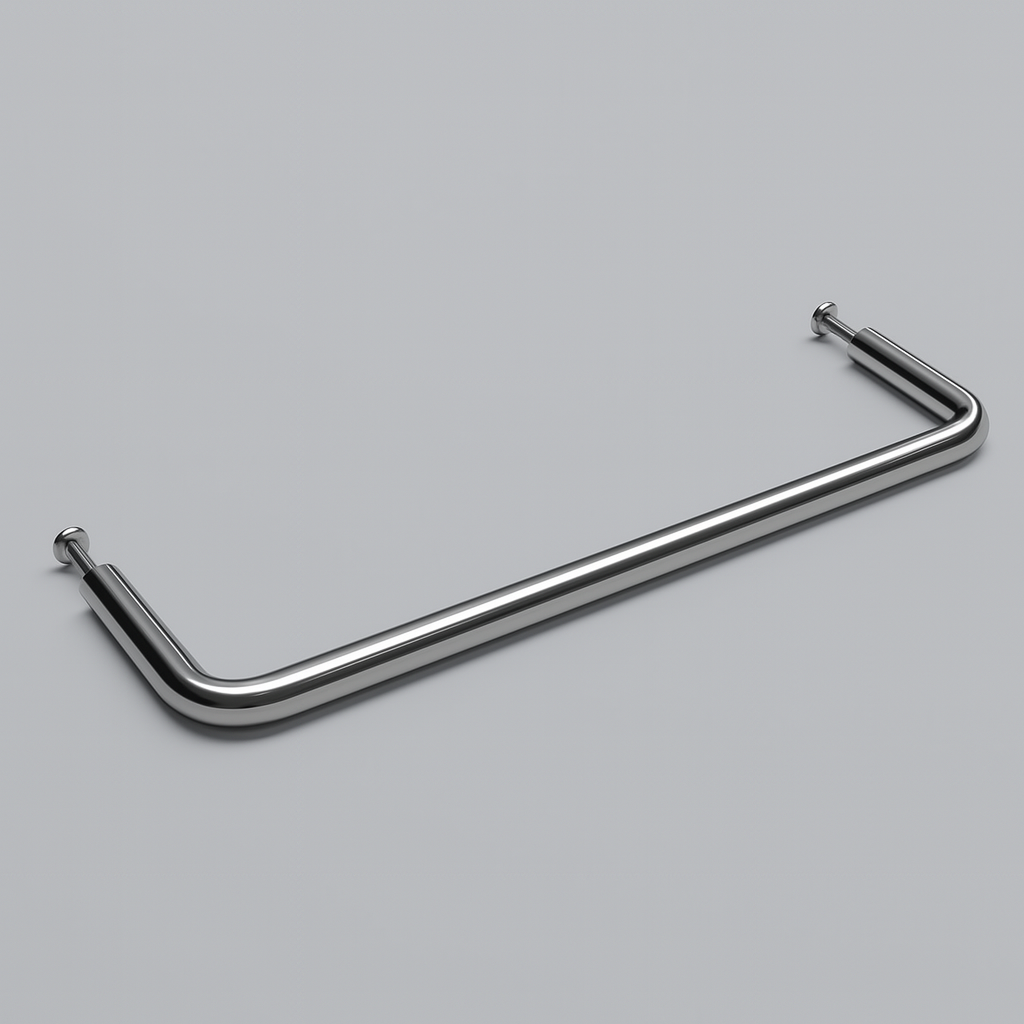

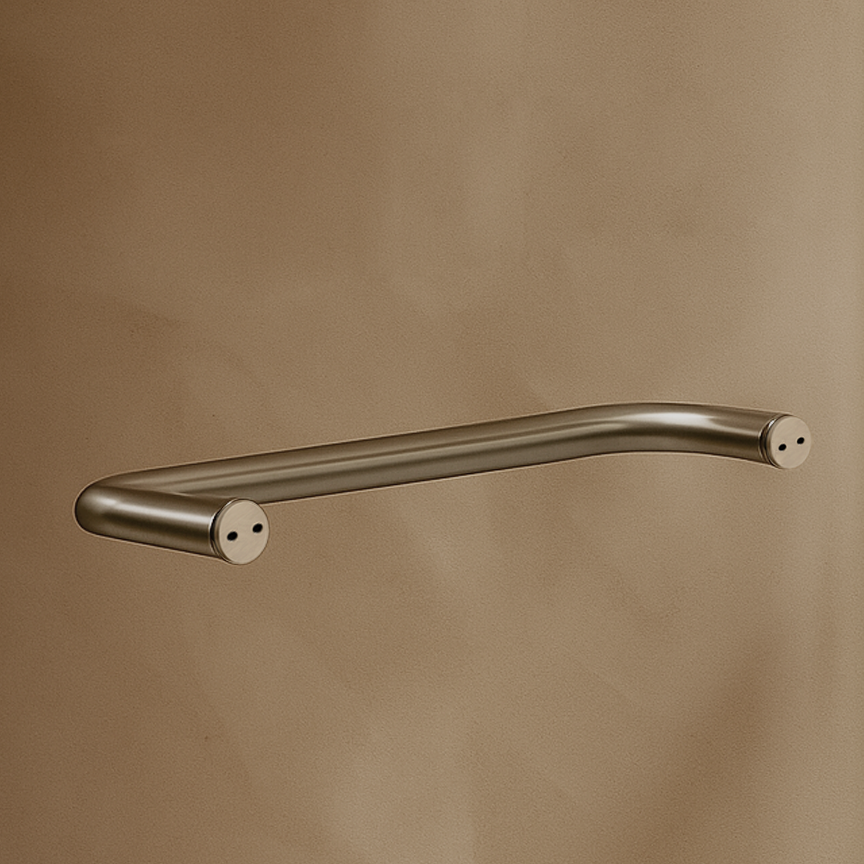

The Knud Shower Door Set by d line is a marine-grade AISI 316 stainless steel single-sided pull with integrated door stop, designed for frameless glass shower doors. Functions as a push/pull handle, slide-open/close mechanism, or towel bar when used in tandem. Mounts vertically or horizontally.

Part of the Knud Holscher Collection. Every component is made from AISI 316 stainless steel — acid-proof, non-corrosive, and built for wet, humid bathroom environments. Hand-finished in Europe.

Specifications

• Ø 14 mm (0.5″): L 464 mm (18.27″), CC 450 mm (17.7″), Projection 75 mm (2.95″)
• Ø 19 mm (0.75″): L 464 mm (18.27″), CC 450 mm (17.7″), Projection 75 mm (2.95″)

Mounting

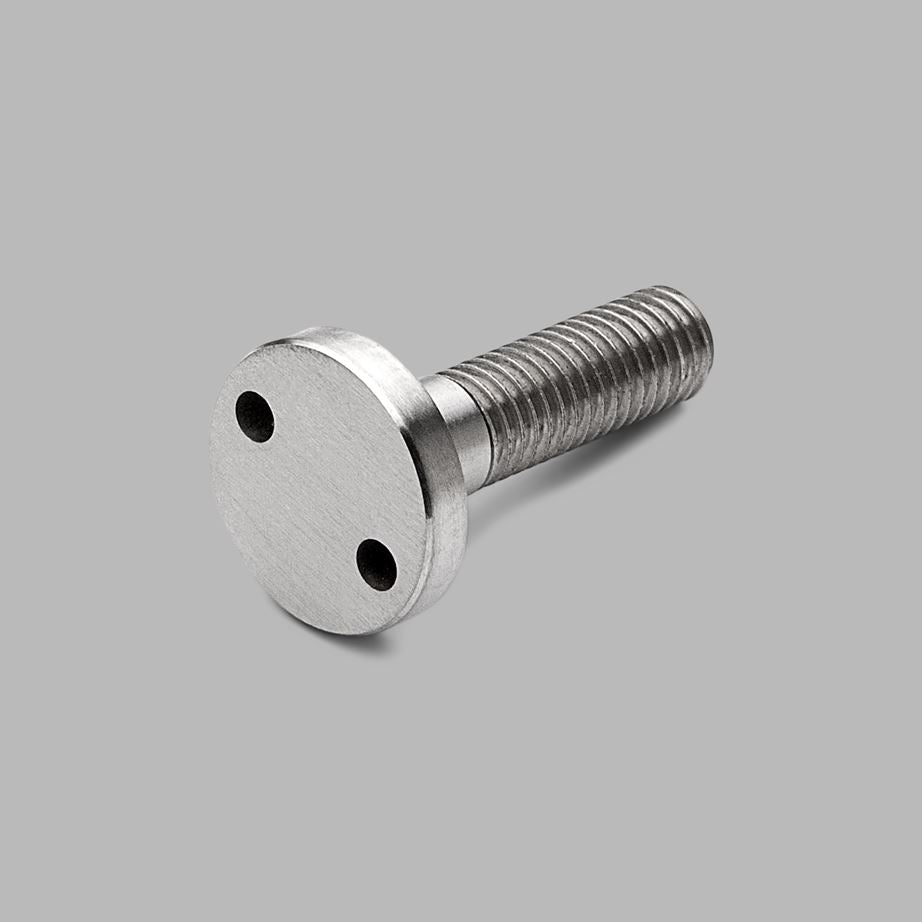

Single sided glass shower door pull: through-bolted with pig nose bolt on the interior of the shower, featuring a glass rubber rose and channel to protect the glass. One end acts as a door stop during sliding function. Contact us for custom mounting or back-to-back installations.

Materials

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).

Additional Finishes (Available Upon Request)

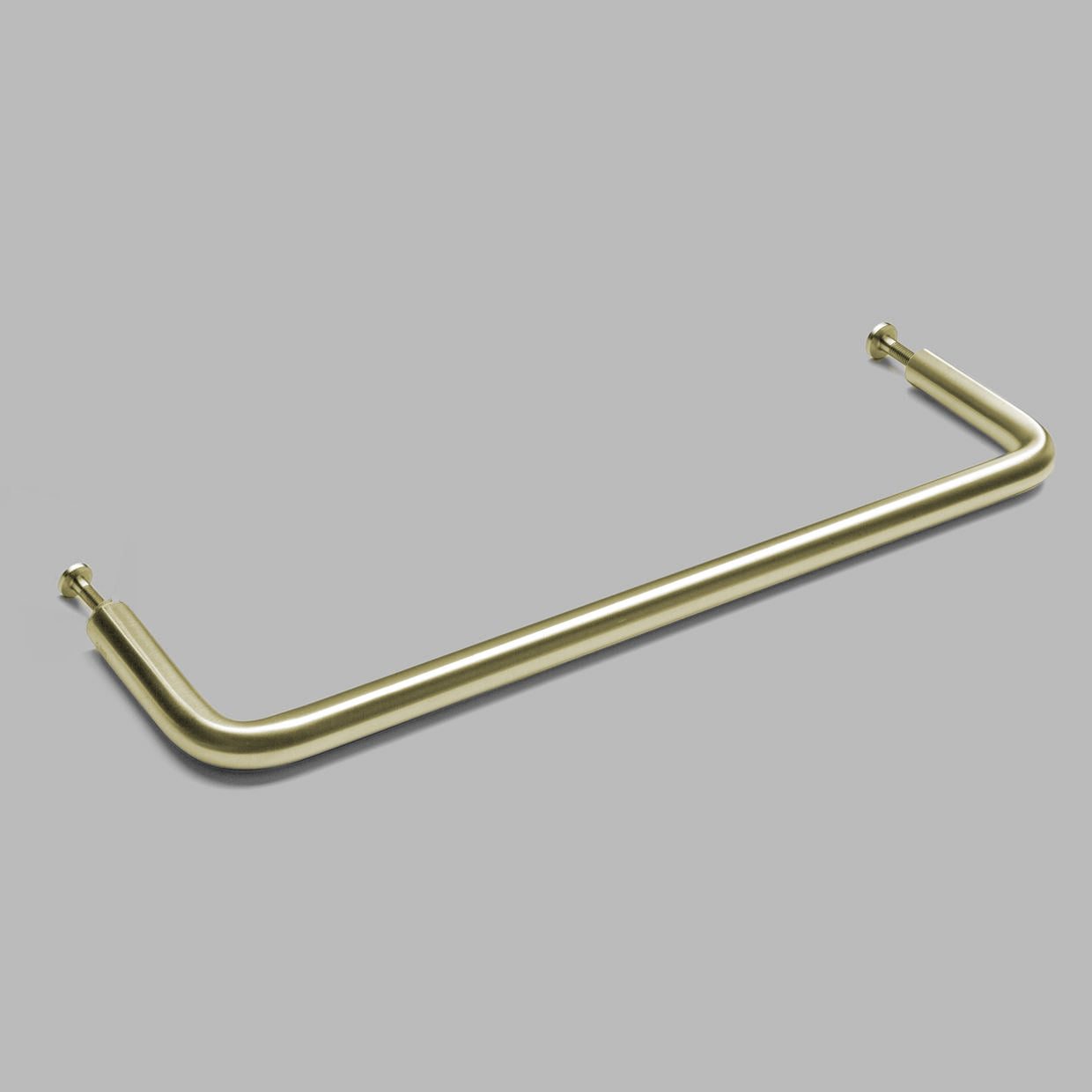

• PVD Satin Brass

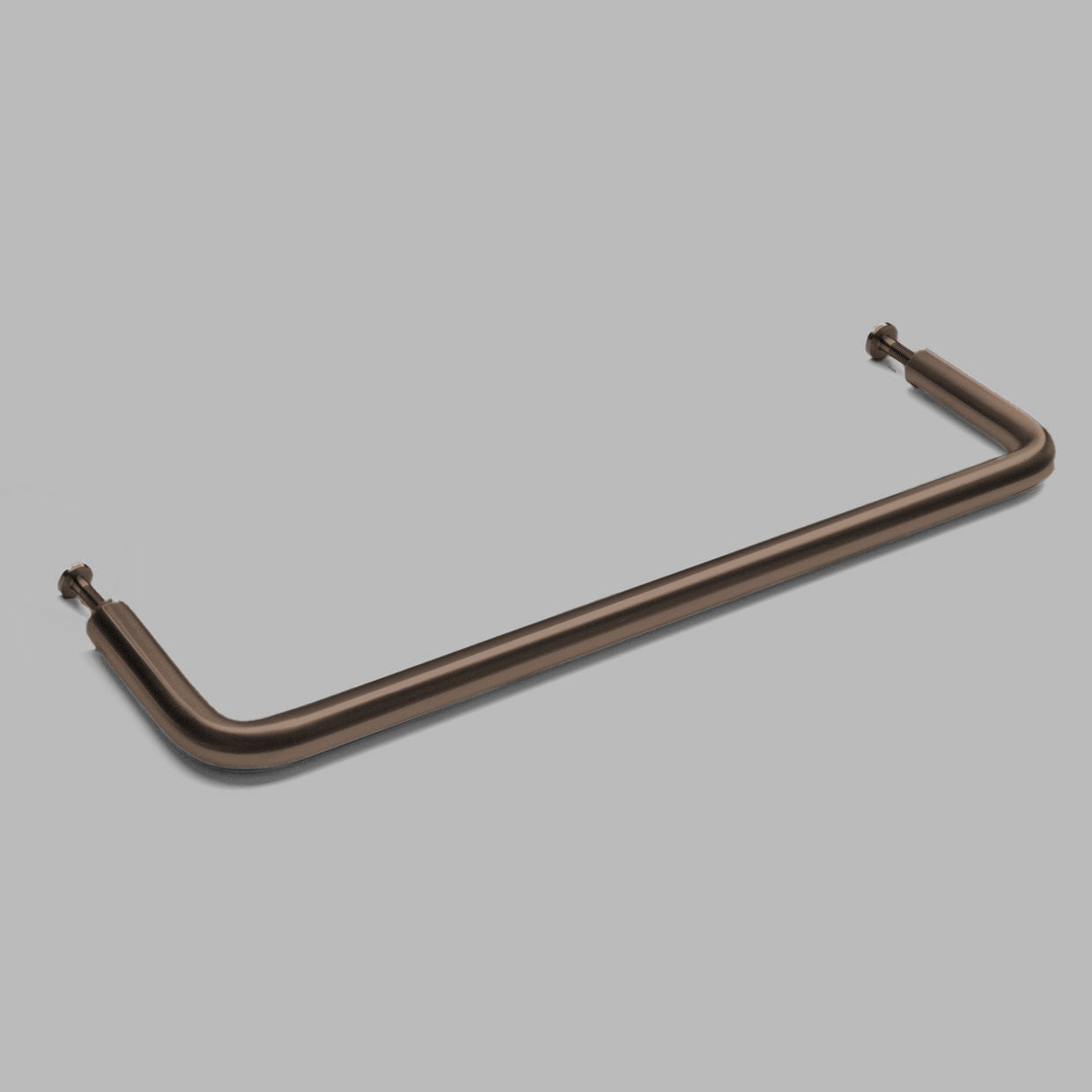

• PVD Satin Bronze
• PVD Satin Black
• Polished versions
• X-BAC antimicrobial coating

Product Downloads

• Data Sheet (PDF)
• Drawing (PDF)
• d line Catalogue
