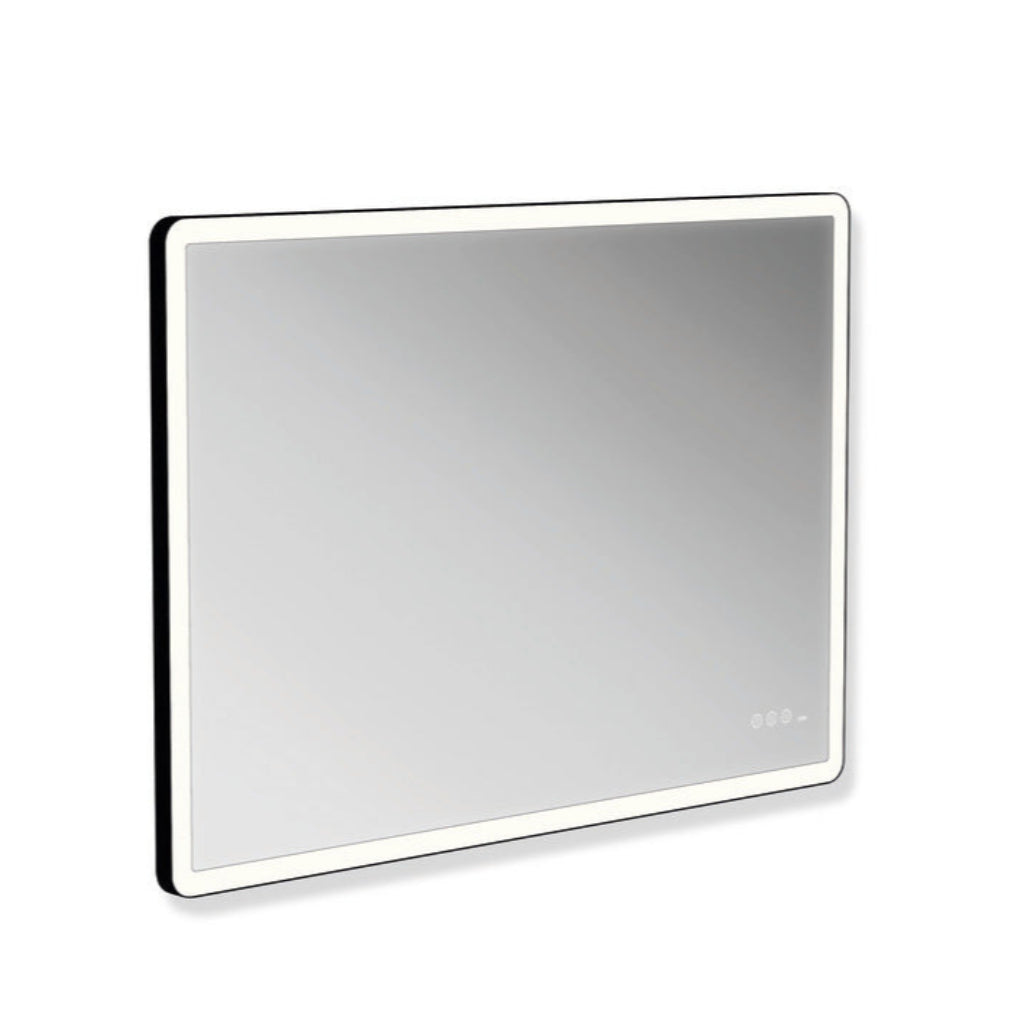

Hewi 480 LED illuminated Mirror Rectangular Horizontal

Description

The HEWI LED Illuminated Mirror (Rectangular, Horizontal) by Hewi is a wall-mounted float glass mirror with all-round LED backlighting, designed exclusively for horizontal mounting. Its elongated horizontal silhouette provides a generous reflective surface with integrated lighting that adjusts seamlessly from warm white to cool white (approx. 2700–6500K) and is continuously dimmable.

A discreet sensor button provides intuitive operation, and the memory function automatically saves the last selected light setting. Suited to residential bathrooms, hospitality settings, and commercial environments.

Range 480 refines the round-tube archetype with precise radii, reduced wall connections, and a clean, minimalist expression. Engineered in Germany, the collection spans accessories for washbasins, WCs, and showers, plus rose-free grab rails. View the entire collection here.

Specifications

• W 700 mm (27.56″) × H 1000 mm (39.37″) × D 25 mm (0.98″)
• Mirror thickness: 4 mm (0.16″)
• Colour temperature: approx. 2700–6500K (warm white to cool white)
• Total output: approx. 44 watts · Luminous flux: 3960 lm
• Continuously dimmable via sensor button
• Memory function retains last light setting
• 220–240 VAC, 50–60 Hz · Connection to room switch possible
• Energy efficiency class G
• Protection class I · IP44 · CE marked (EMC 2014/30/EU)
• Electrical safety according to VDE 100
• Horizontal mounting only

Materials

High-quality float glass with polished edges and all-round LED backlighting.

Available Finishes

• Exposed Glass
• PC Matte Black

Product Downloads

For the complete collection, download the catalogue here.

Hewi Colour Chart

PVD Finish Chart

PVD Finish Catalog

Product Sheets

• Hewi Mirror Product Sheet

Dimensional Cut Sheets

• Hewi Mirror Cut Sheet

2D CAD Drawings

• 2D Drawing

Installation & Care

• Installation Instructions
