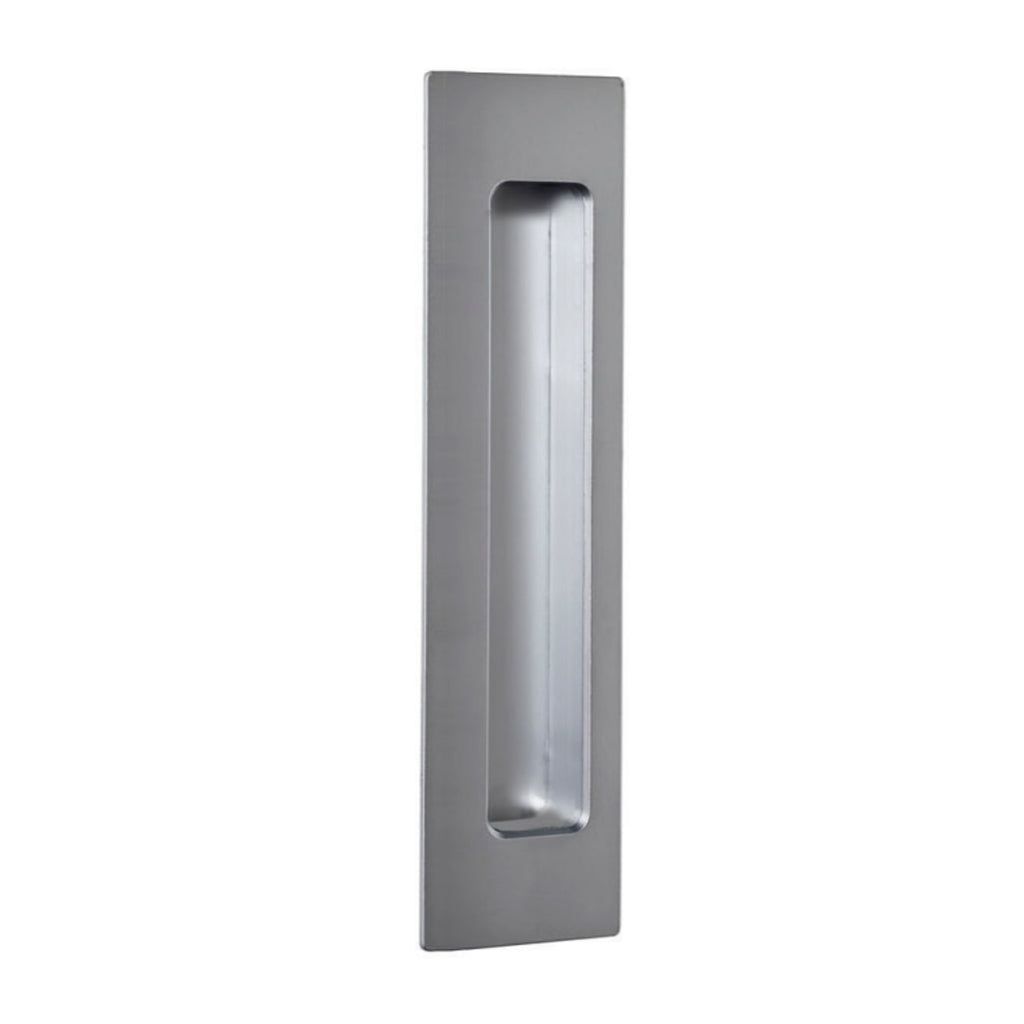

HB 675 Bi-Fold Flush Pull

Description

The HB 675 Flush Pull by Halliday Baillie is a flush pull designed primarily for bi-fold and pivot doors, also suited to heavy sliding doors, hinge doors, or horizontal drawer applications. Provides an ample lip and generous 15 mm internal depth for a more substantial grip. Concealed fixing (no exposed screw fasteners) for a pared-back, sophisticated look.

Sold individually. For double-sided use, install one pull on each side of the door. If installing on a pocket door, pair with an Edge Pull to pull the door from its recessed position. Combine with the HB 680 Push Button Edge Pull for a matching set. This flush pull is handed — specify LH or RH when ordering.

Made in New Zealand.

Specifications

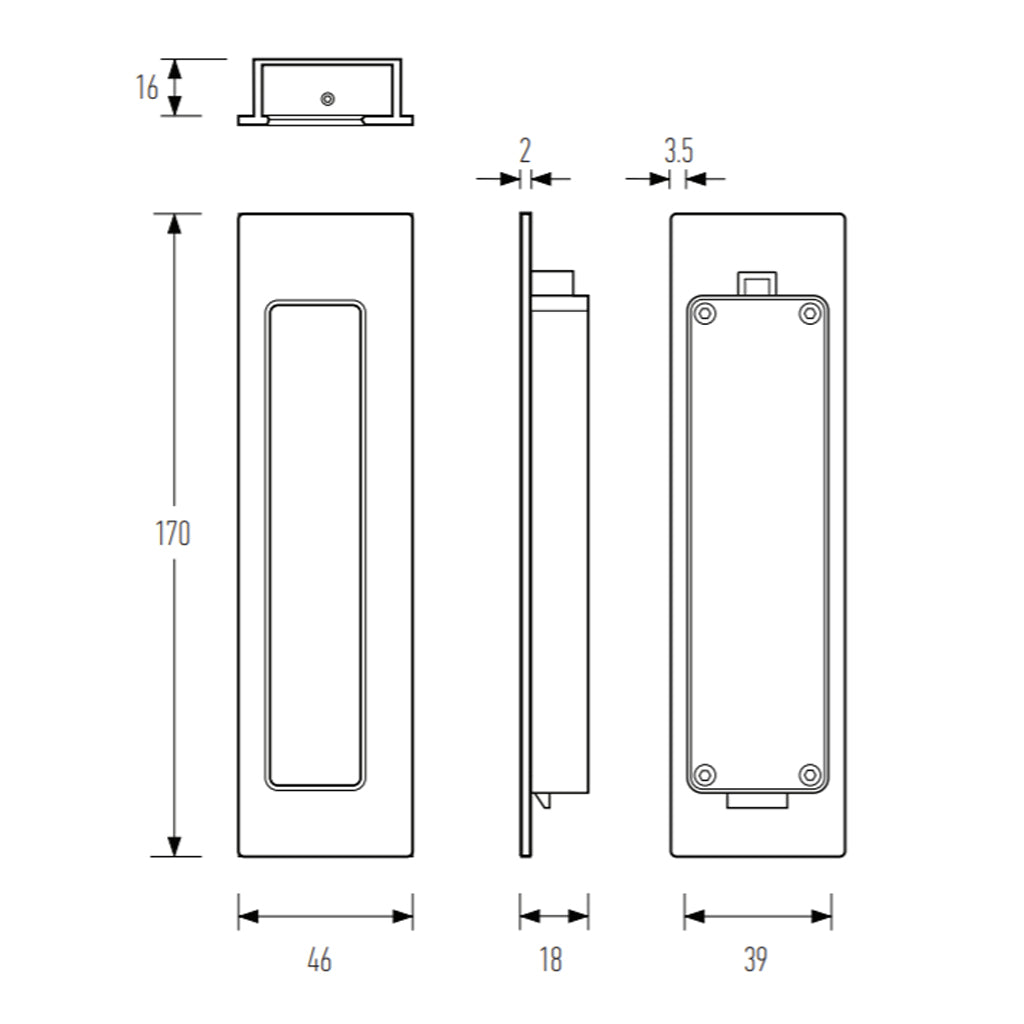

• Dimensions: L 170 mm (6.6″) x W 46 mm (1.8″) x D 18 mm (0.67″)
• Internal Grip Depth: 16 mm (0.70″)
• Suitable for wood or aluminum doors
• Minimum door thickness for back-to-back installation: 1-1/2″
• Includes: Handed flush pull (QTY 1) with Timber Fixing Kit HB 604 (required for installation in wood doors)
• Glue, epoxy, or silicone products are not required or recommended for installation

Materials

Diecast zinc and brass.

Available Finishes

• SC: Satin Chrome
• PC: Polished Chrome
• BN: Brushed Nickel
• PB: Polished Brass
• WHT: Powder Coat White
• EBA: Powder Coat Electro™ Black Ace
• EMB: Powder Coat Electro™ Medium Bronze
• KC: Matte Black Chrome
• ORB: Oil Rubbed Bronze
• EFW: Electro Flat White
• EDB: Electro Dark Bronze

Complete finishes list here.

Product Downloads

• HB 675 Bi-Fold Flush Pull Spec Sheet
• HB 675 Bi-Fold Flush Pull Drawing 2D
• HB 675 Bi-Fold Flush Pull Installation Instructions
• HB 675 Installation Template (PDF)
• HB 675 Wood Fixing Specification Sheet (PDF)
• Halliday Baillie Catalogue
