Forme No. 25 Door Lever

Description

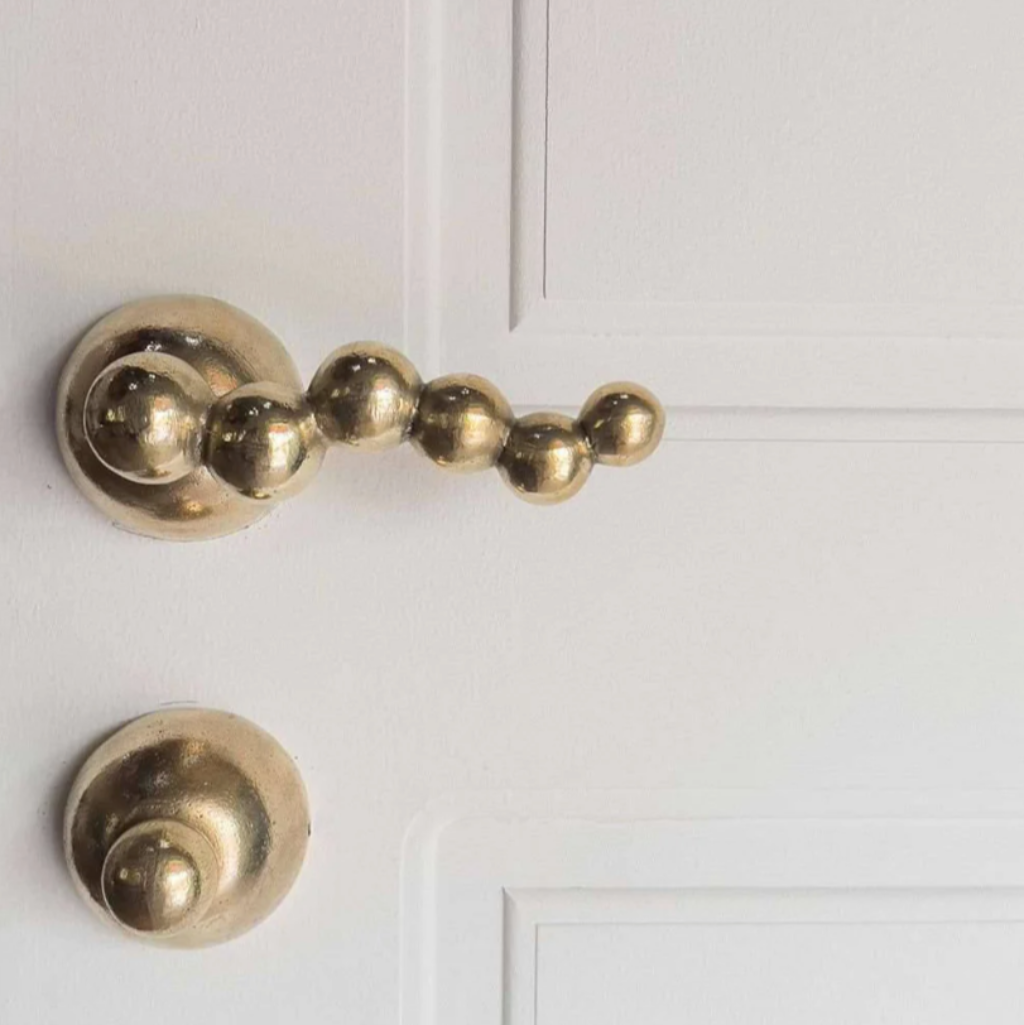

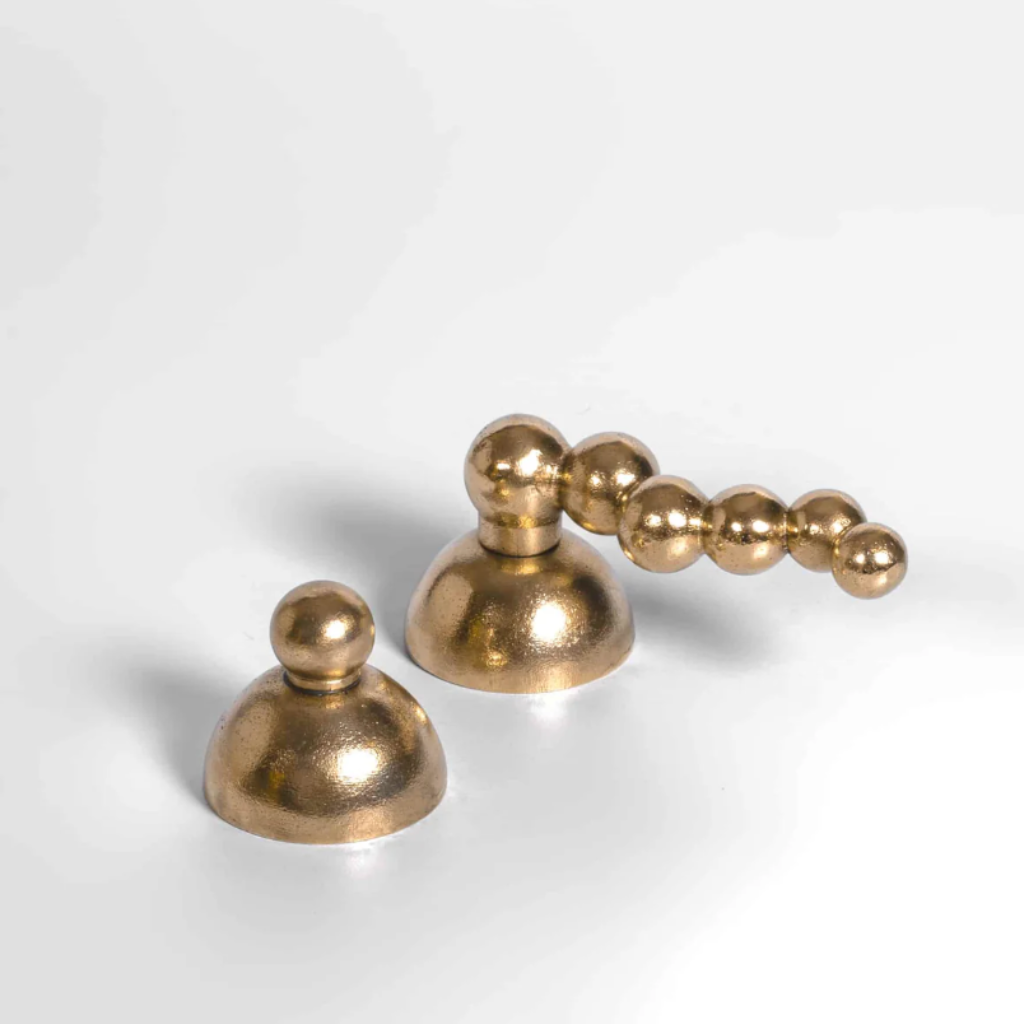

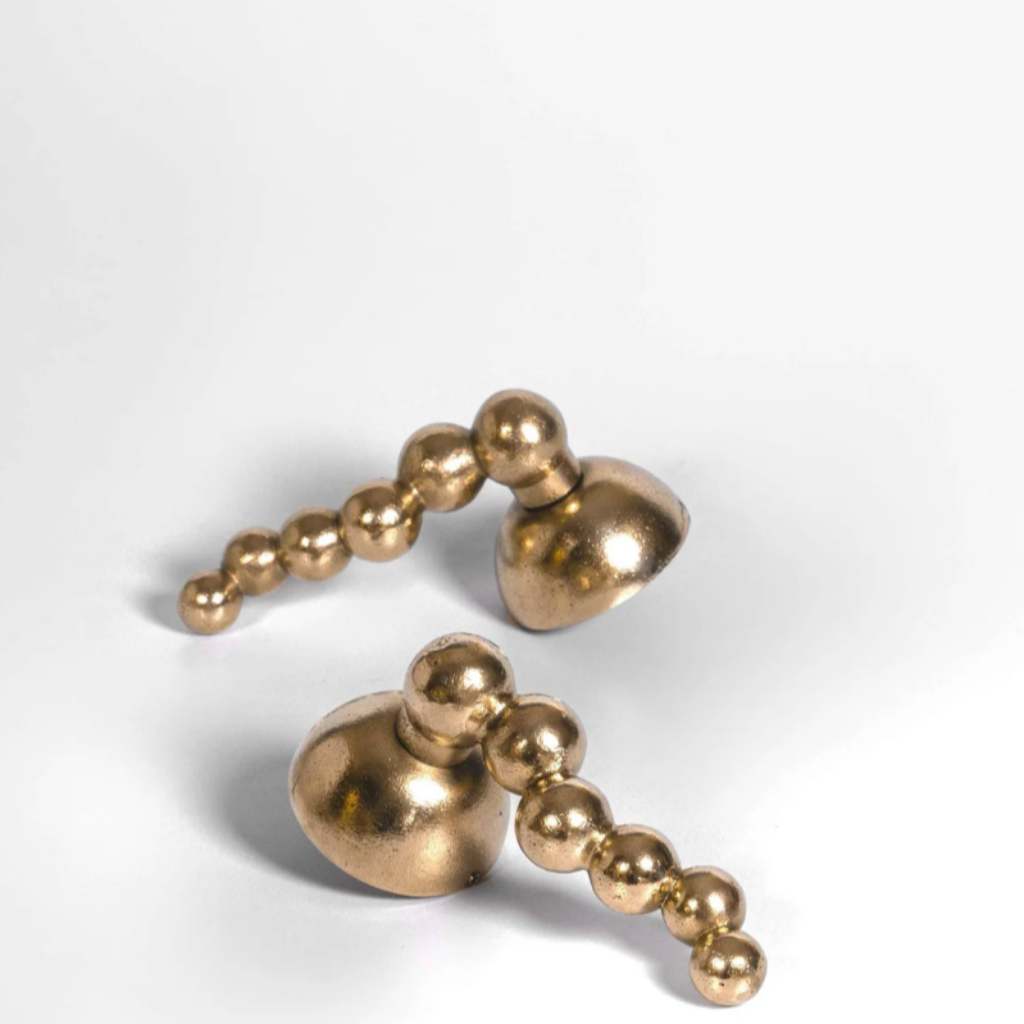

The Forme No. 25 Door Lever by Mi & Gei is a hand-cast solid brass door lever with sculptural bubble-like formations inspired by the concept of infinity. Designed for passage, privacy, and dummy applications in residential and hospitality interiors where tactile, artisan hardware is valued.

Hand-cast in Mumbai from solid, unlacquered brass. Engineered with a concealed fixation system for clean installation. Equally suited to private residences and high-traffic hospitality environments.

Function Overview

Passage

For doors that require latching but no locking (e.g., hallways, closets).

Components Included

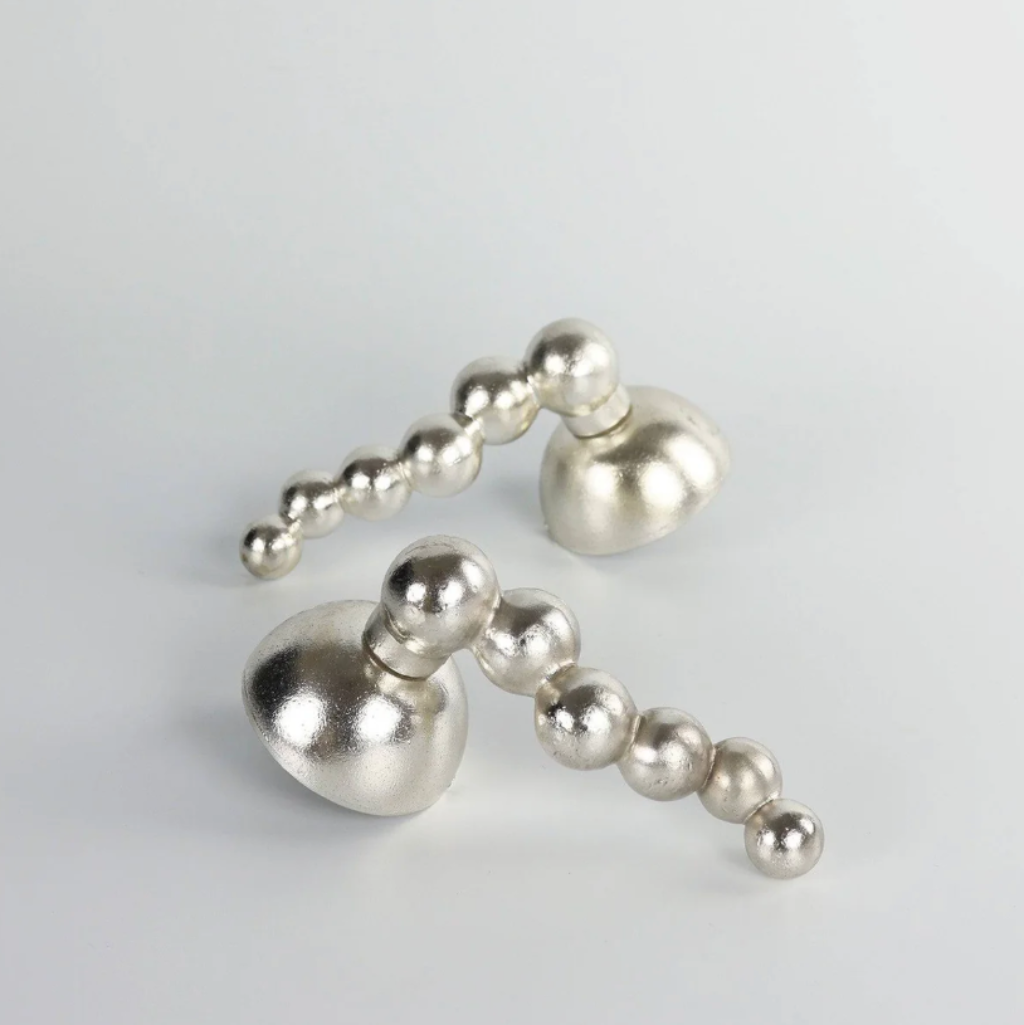

• 1 pair of handles with roses
• 1 handle spindle — 8 × 8 x L 130 mm
• 4 screws
• 2 connecting screw bolts with sleeves
• 1 Allen key

Privacy

For doors that require locking from one side (e.g., bathrooms, bedrooms).

Components Included

• 1 pair of handles with roses

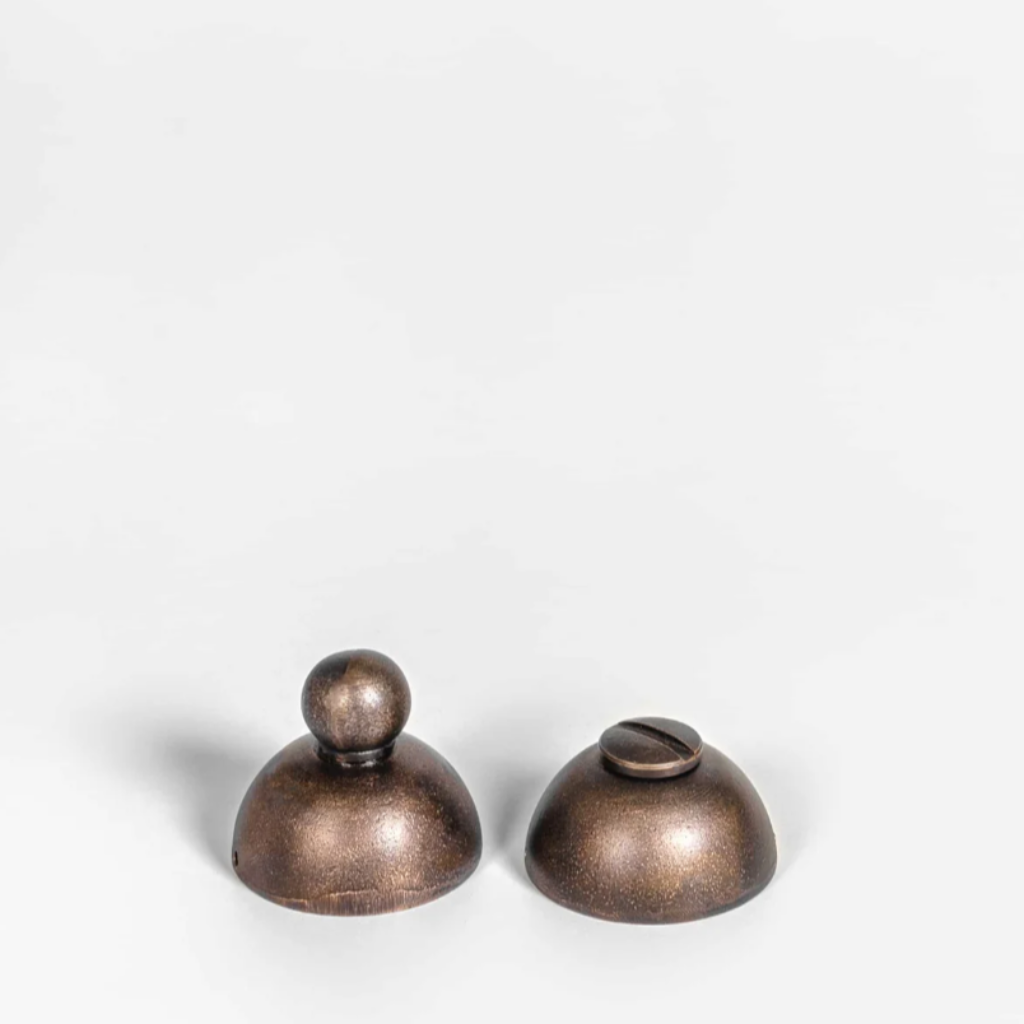

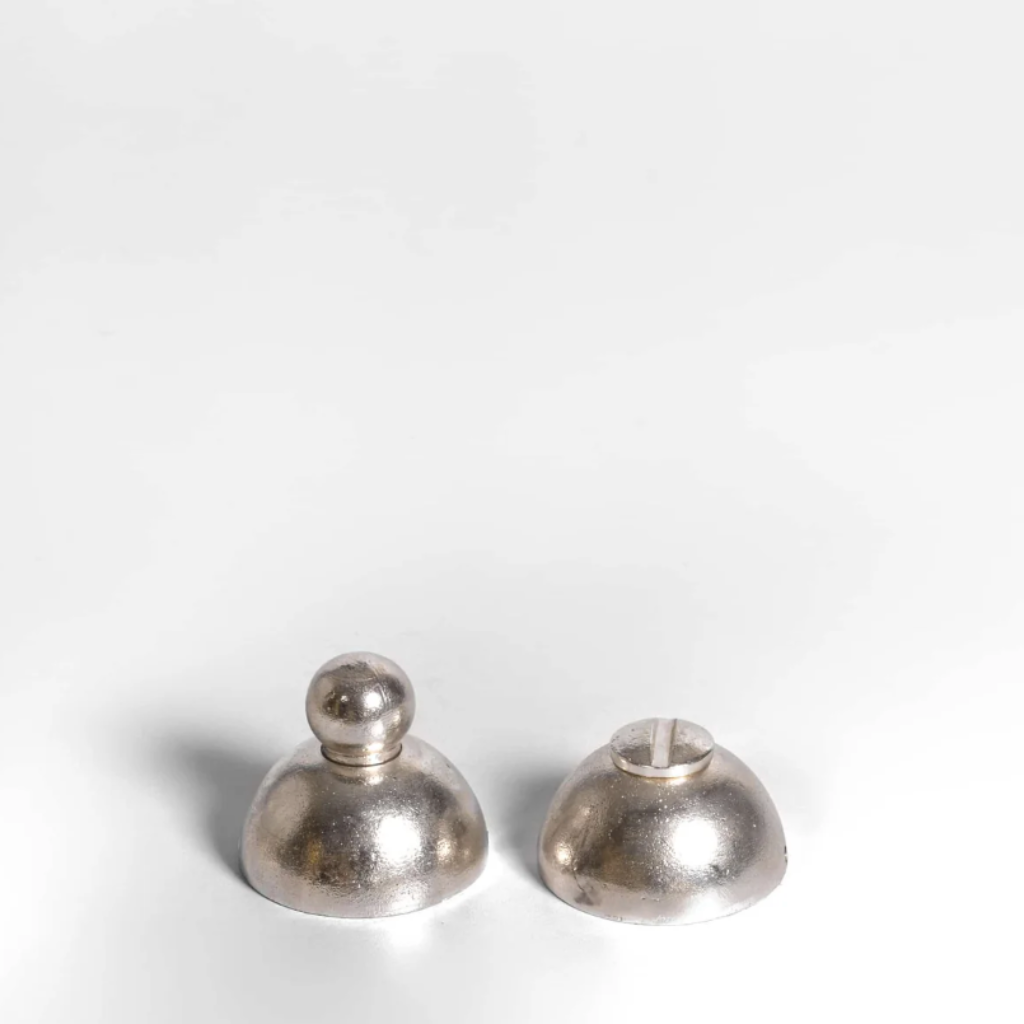

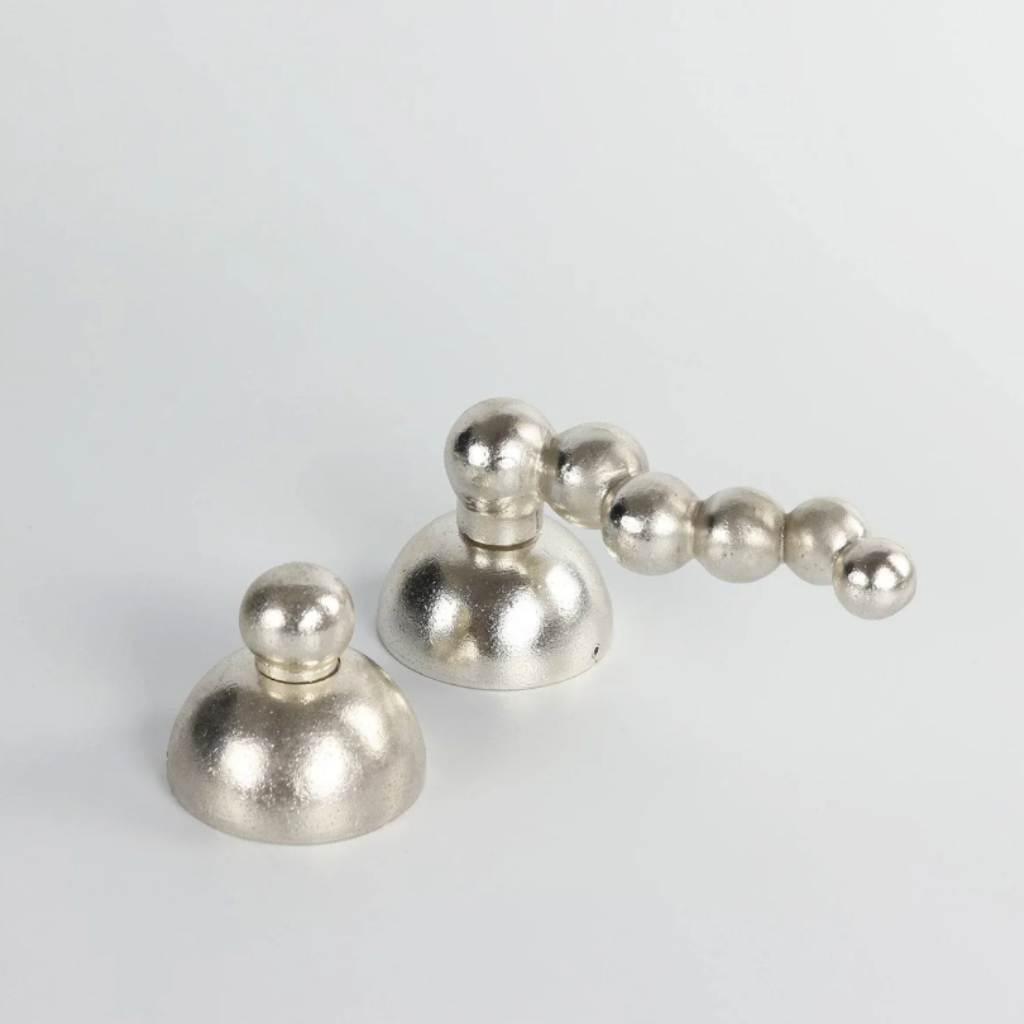

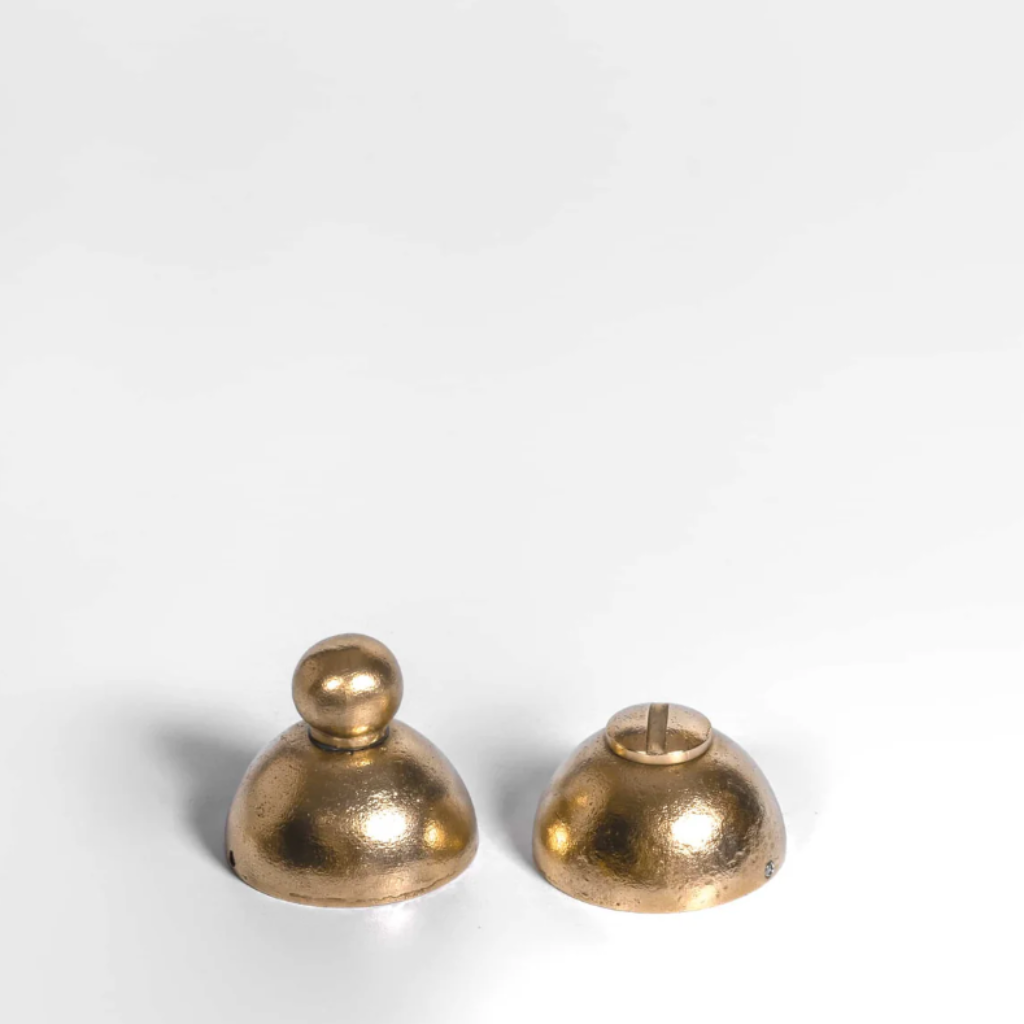

• 1 thumb turn
• 1 handle spindle — 8 × 8 x L 130 mm
• 1 thumb turn spindle — 5 × 5 x 130 mm
• 8 screws
• 4 connecting screw bolts with sleeves
• 1 Allen key

Dummy (Half or Full Set)

For decorative or push/pull applications, such as closet or pantry doors.

Half Dummy Set — A single lever installed on one side of the door with no hardware on the reverse.

Full Dummy Set — A pair of levers installed on both sides of the door, providing a balanced look with no latch or locking function.

Please Note: Mi & Gei dummy handles are not sold as a pre-configured set. They are available as individual Right or Left Dummy units. Order both for a full dummy configuration.

Components Included

• Handle with rose
• 4 screws
• 1 Allen key
• Rigidizer (Full Set)

Specifications

• Handle: L 123.82 mm (4.87″) x W 35 mm (1.37″)
• Rose: 35 mm (1.37″) x 60 mm (2.36″)
• Projection: 62 mm (2.44″)
• Thumb Turn: Ø 52 mm (2.05″)
• Projection Thumb Turn: 53 mm (2.09″)

Latch & Lock Options

• Forme N°35 Door Latch — 82 mm
• Forme N°36 Deadbolt Latch — 82 mm

Door Prep

Door bore 25 mm. Does not fit standard door prep with pre-bored hole 2-3/8″.

Door Thickness

45 mm (1-3/4″) to 50 mm (2″)

Materials

Solid, unlacquered brass. Hand-cast in Mumbai.

Available Finishes

• Brass

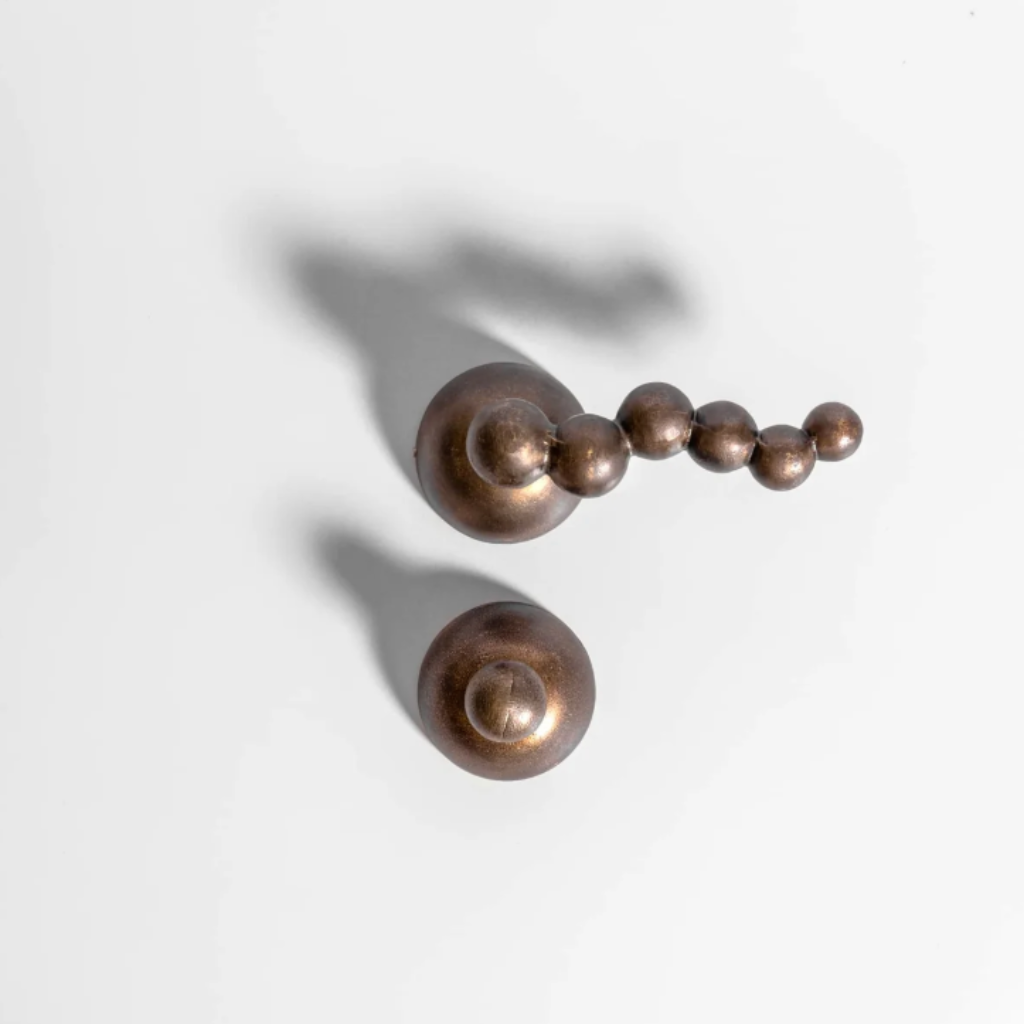

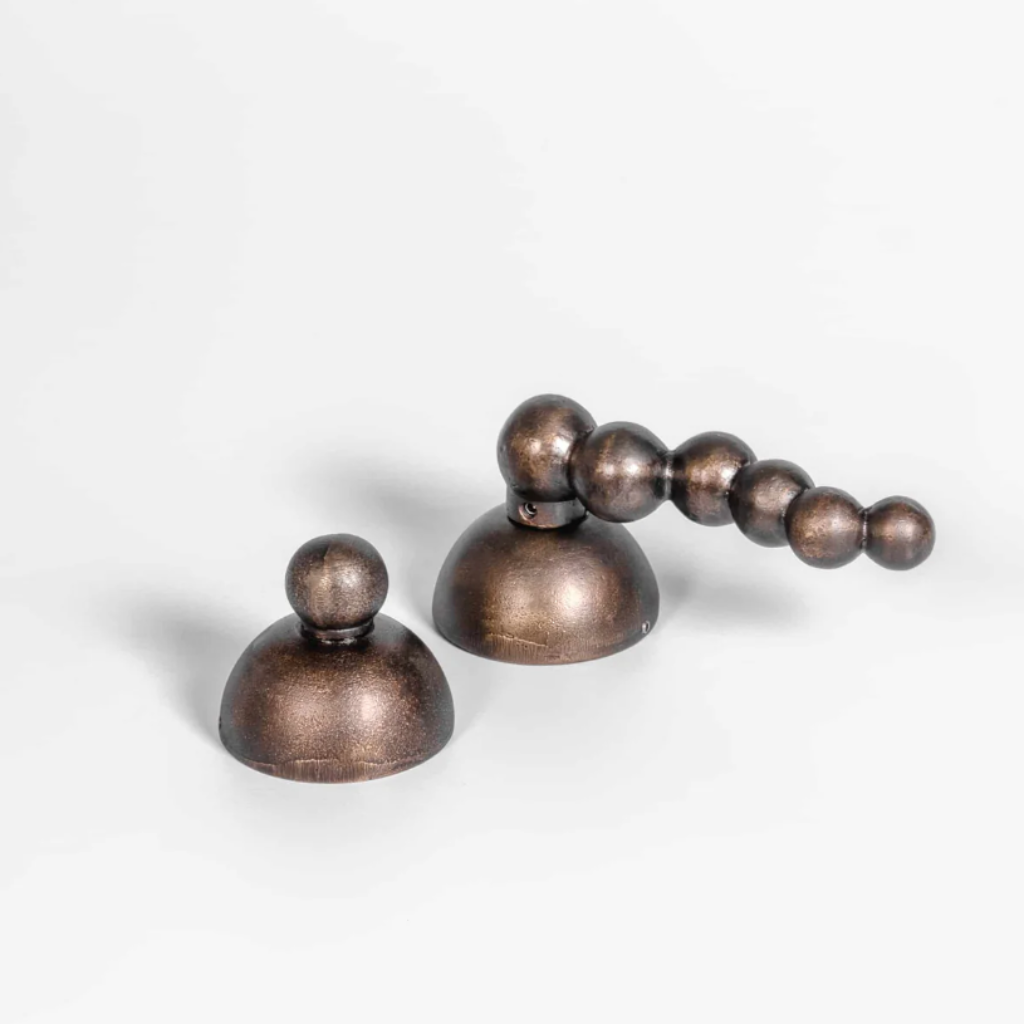

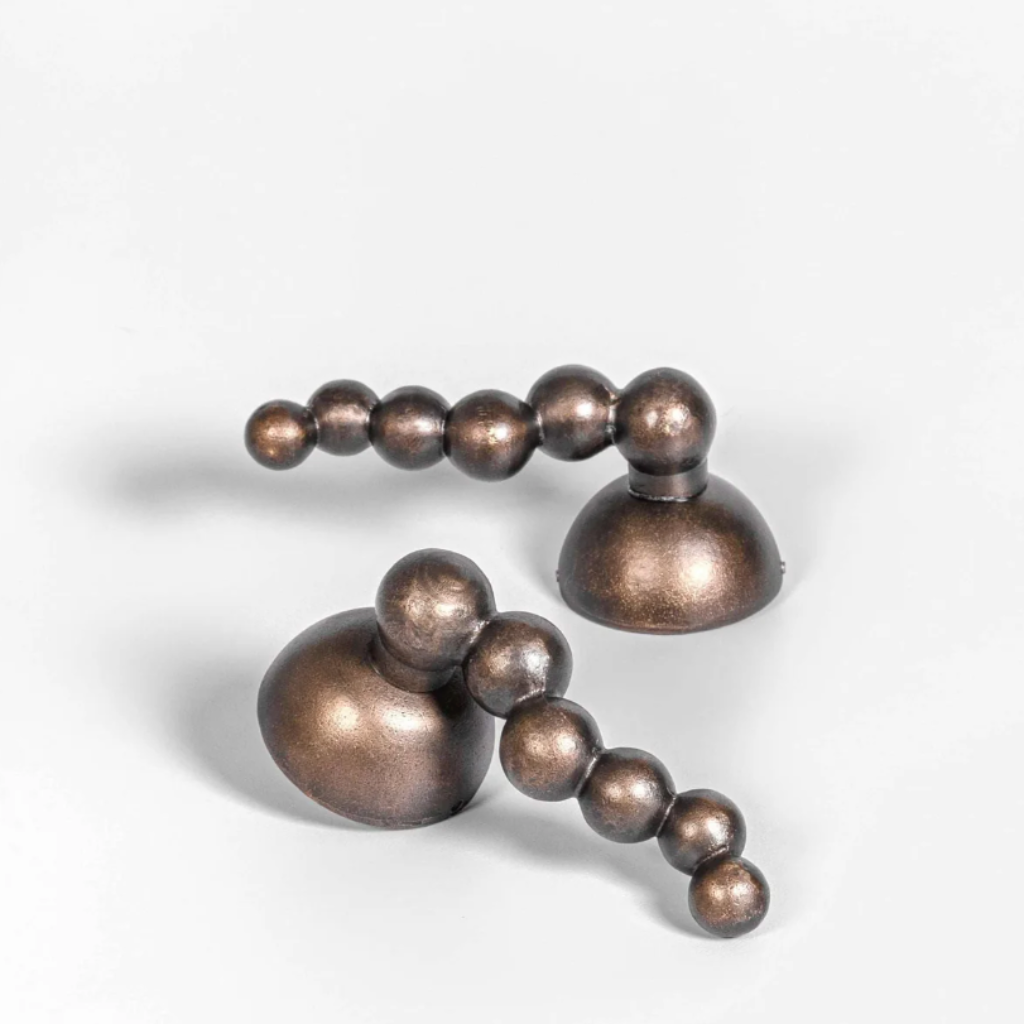

• Bronze
• Satin Nickel
• Polished Nickel

Product Downloads

• No. 25 Spec Sheet (PDF)
