Description

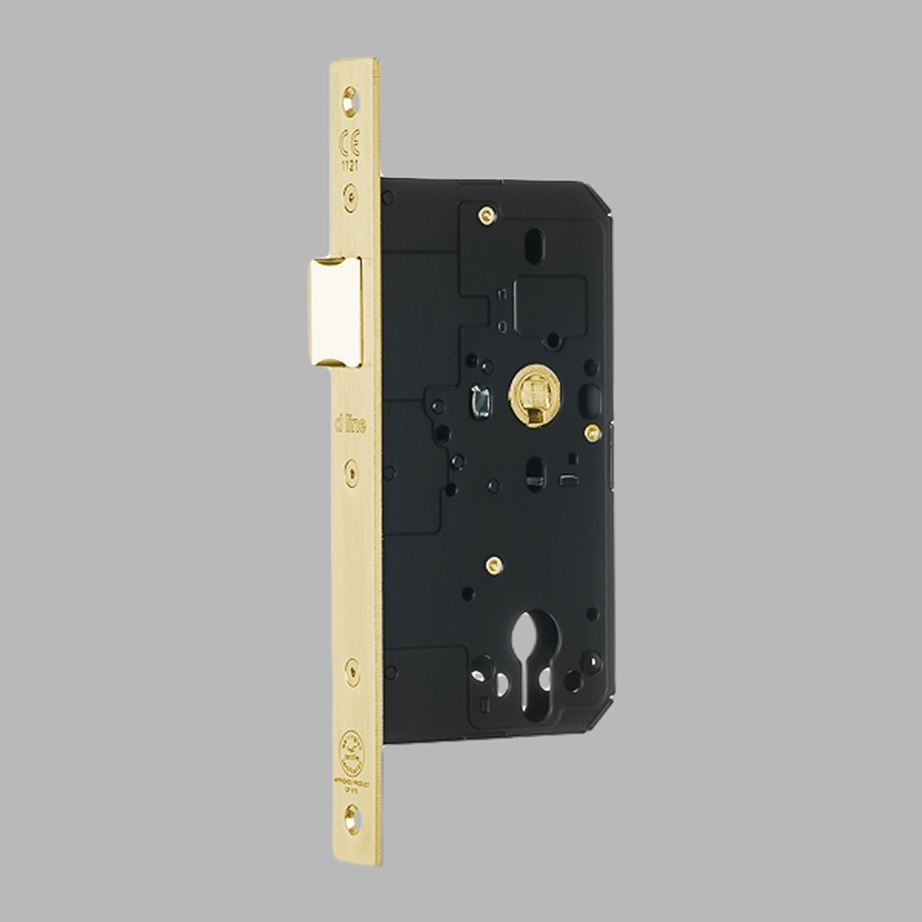

The Euro Mortise Passage Latch Lock from the Knud Holscher collection by d line is a stainless steel passage latch lock for internal doors without a locking mechanism. Designed for hallways, closets, and commercial passage doors. Features a strong spring and strike plate. Available in round or square faceplate.
Made in Europe.
Specifications
- Dimensions: W 24 mm (0.9″) x H 235 mm (9.2″) x D 88 mm (3.4″)
- Backset: 60 mm
- Centres: 78 mm
- Faceplate: Round or Square
- Suitable for sprung and most unsprung lever furniture
- Spindle range: 33–111 mm door thicknesses (for larger, contact us)
Areas of application: residential, commercial.
Materials

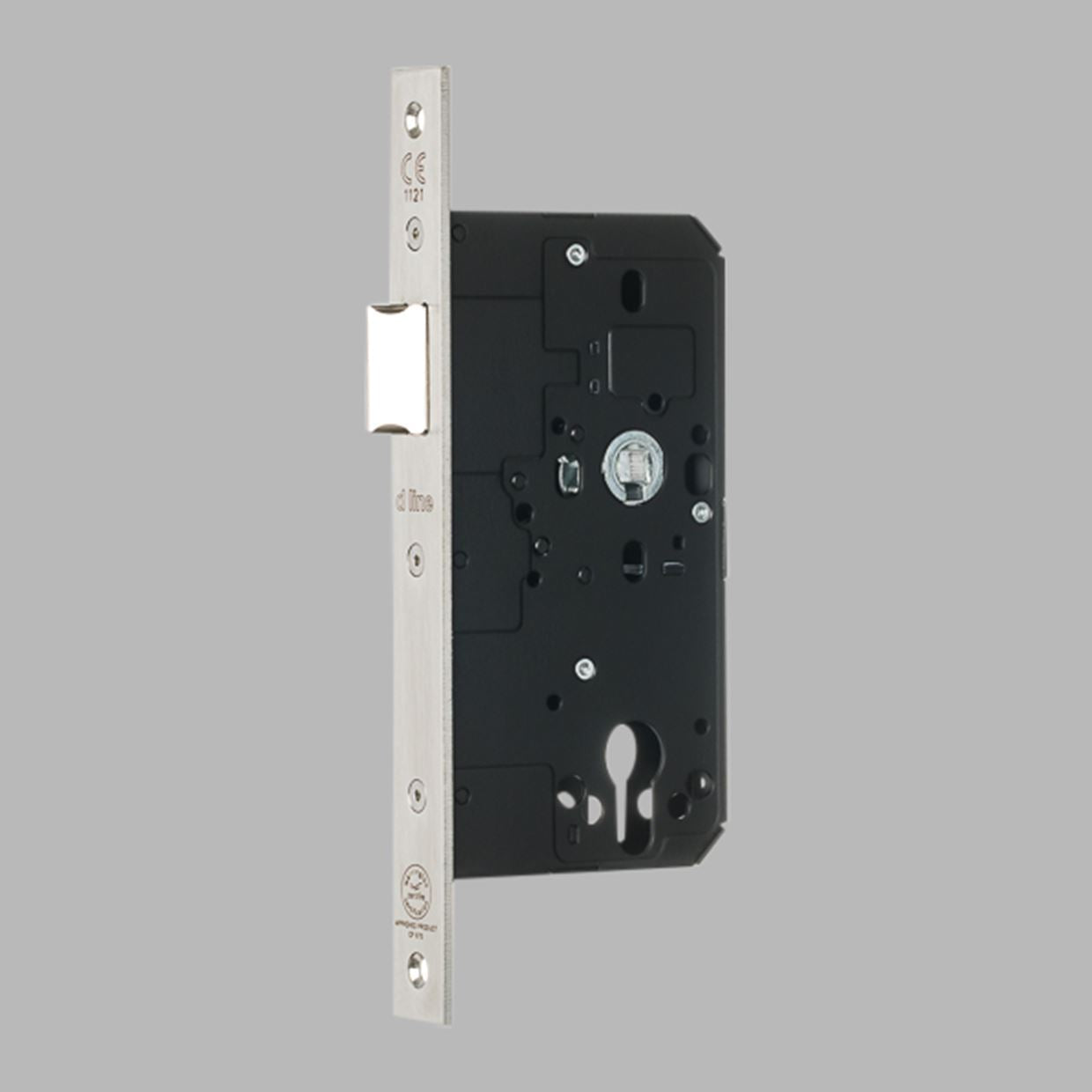

Stainless steel (AISI 304). Standard finish: Satin Stainless Steel (Grain 320).
Additional Finishes (Available Upon Request)

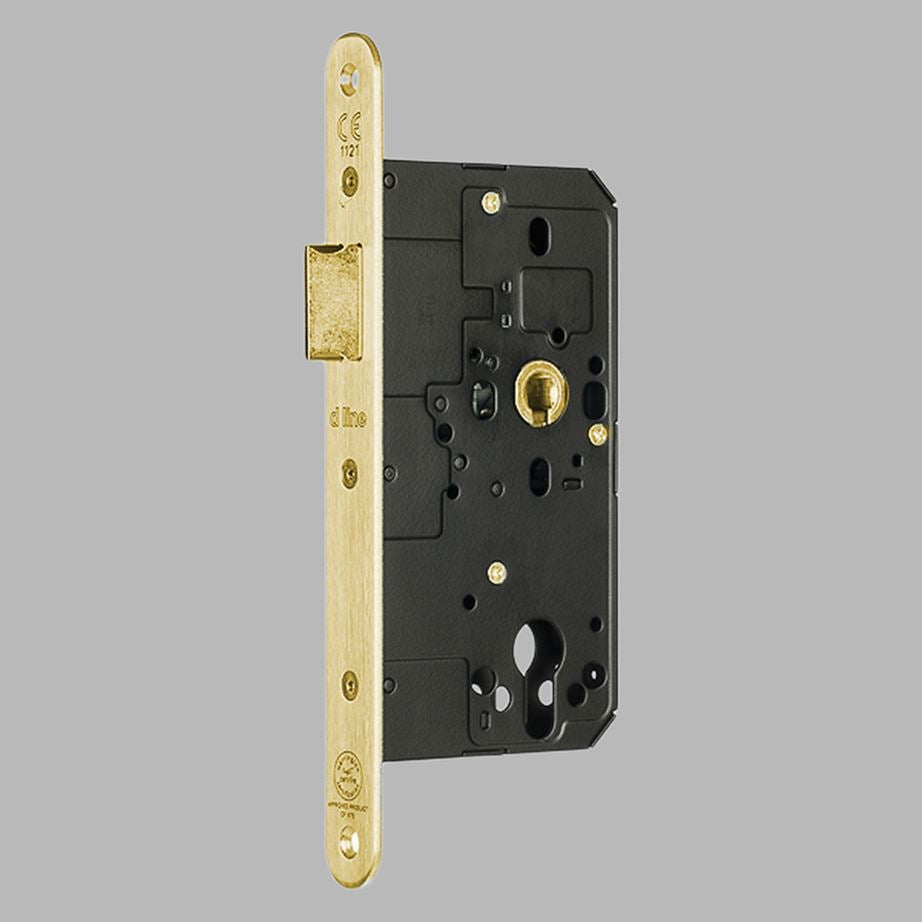

- PVD Satin Brass

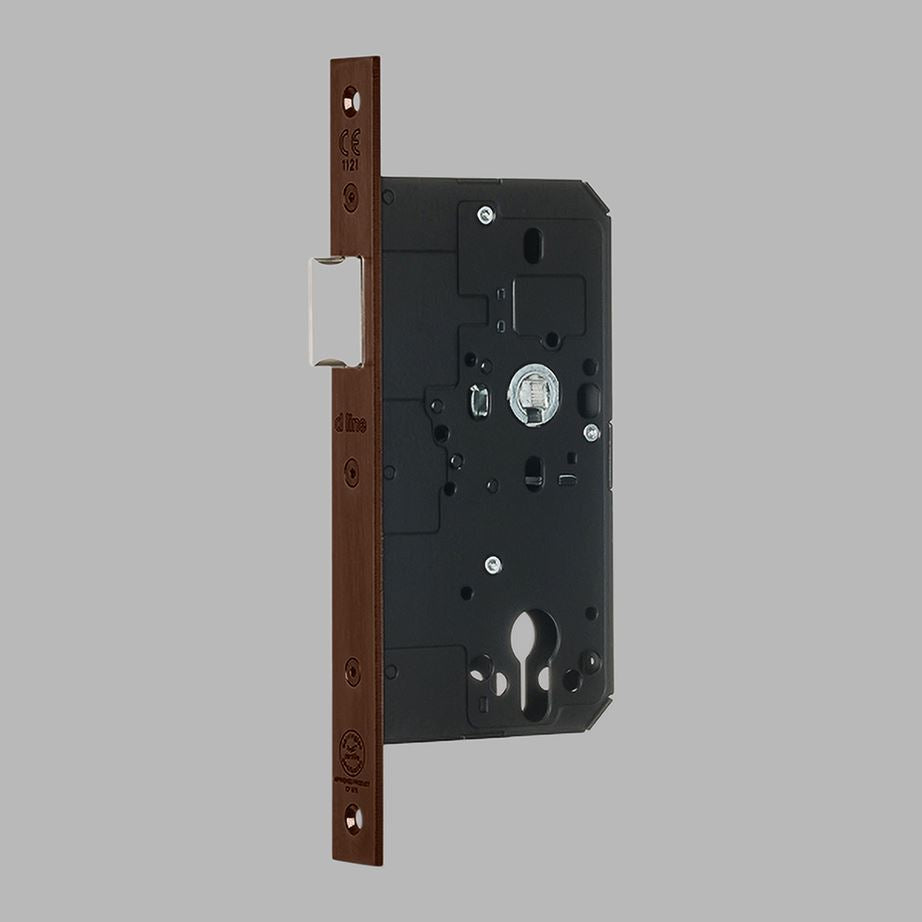

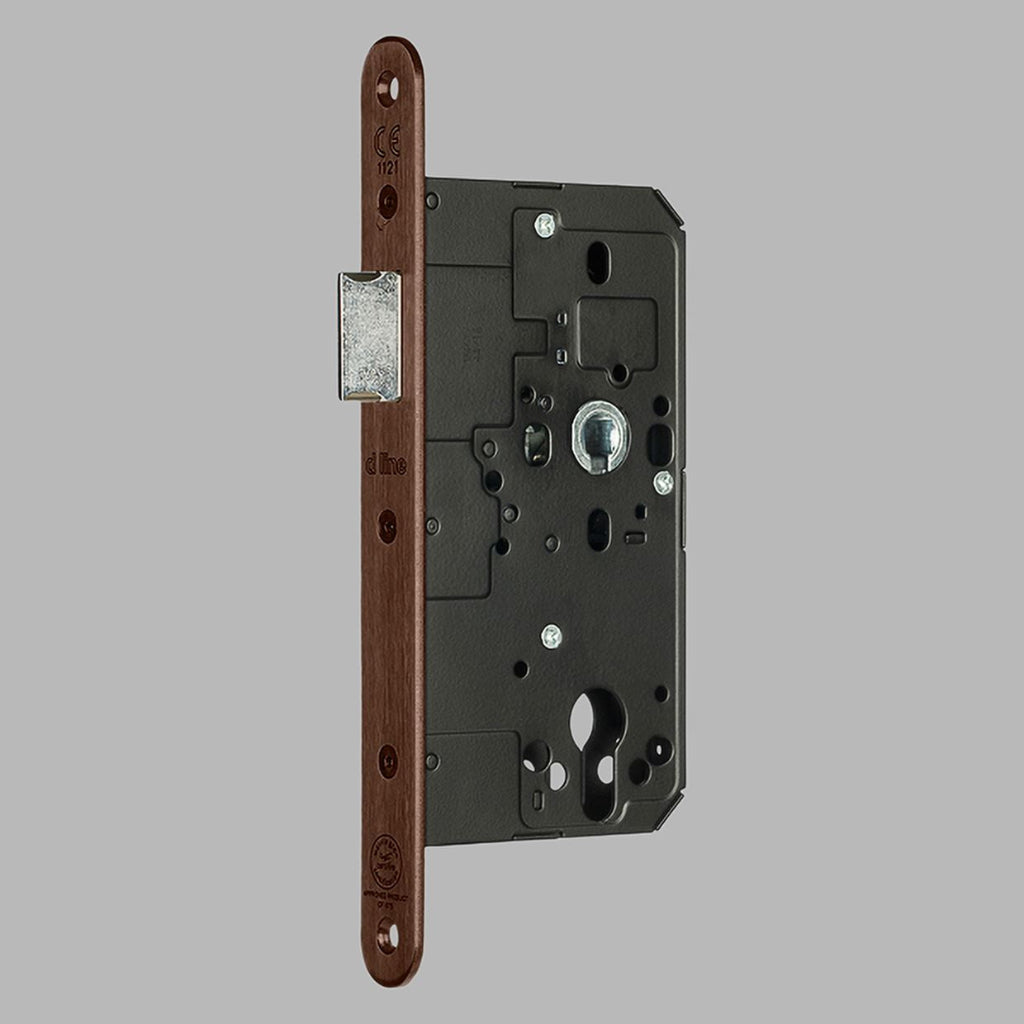

- PVD Satin Bronze

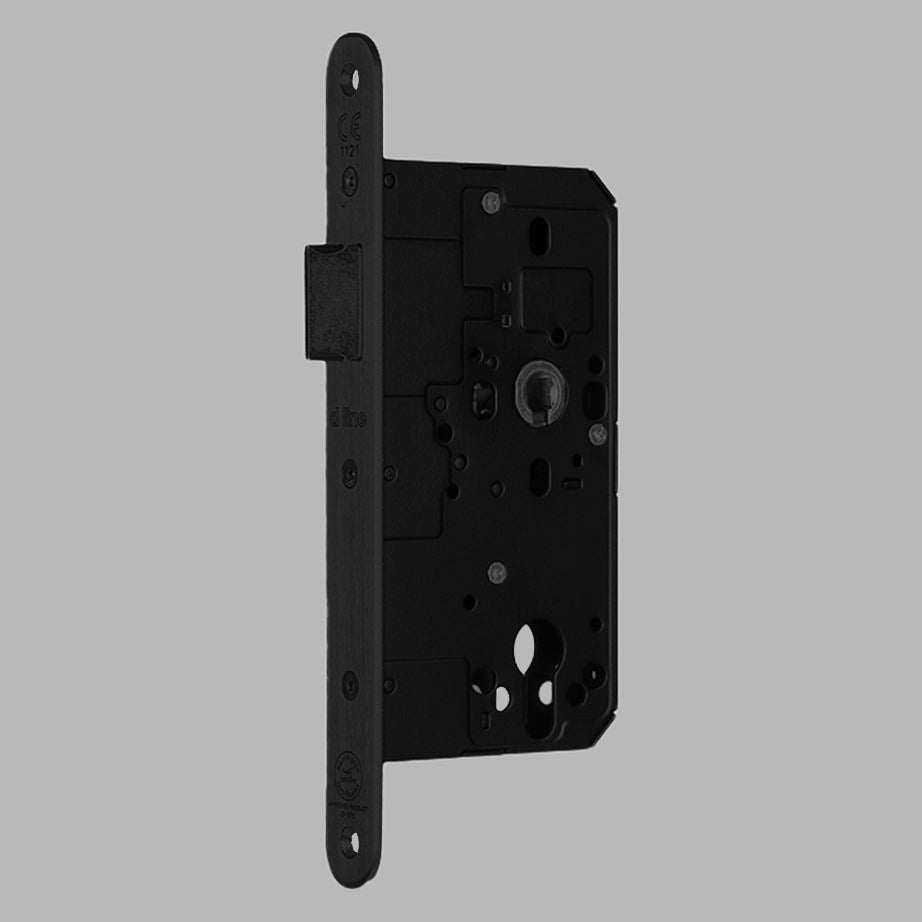

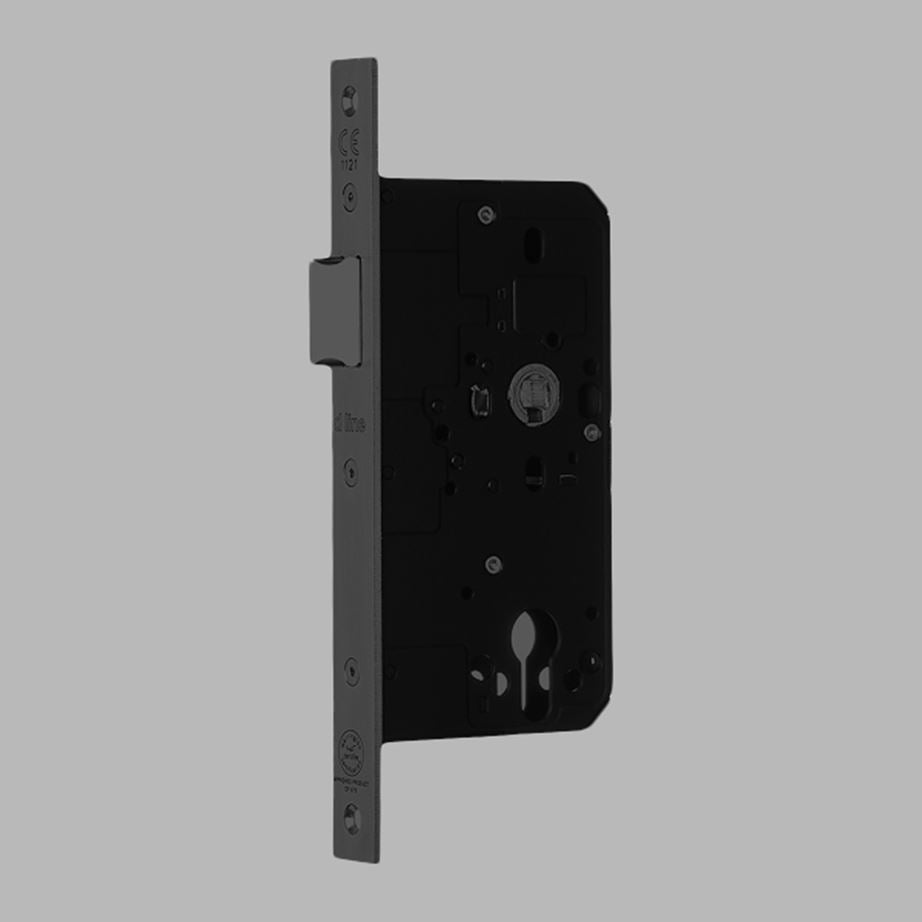

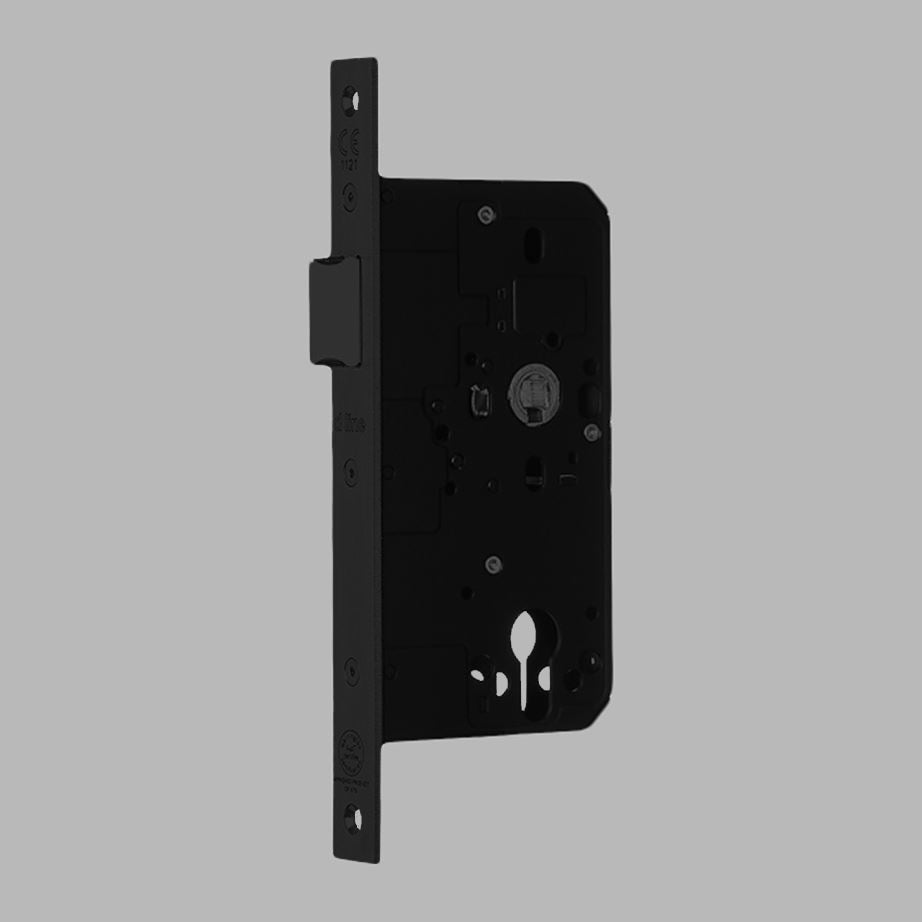

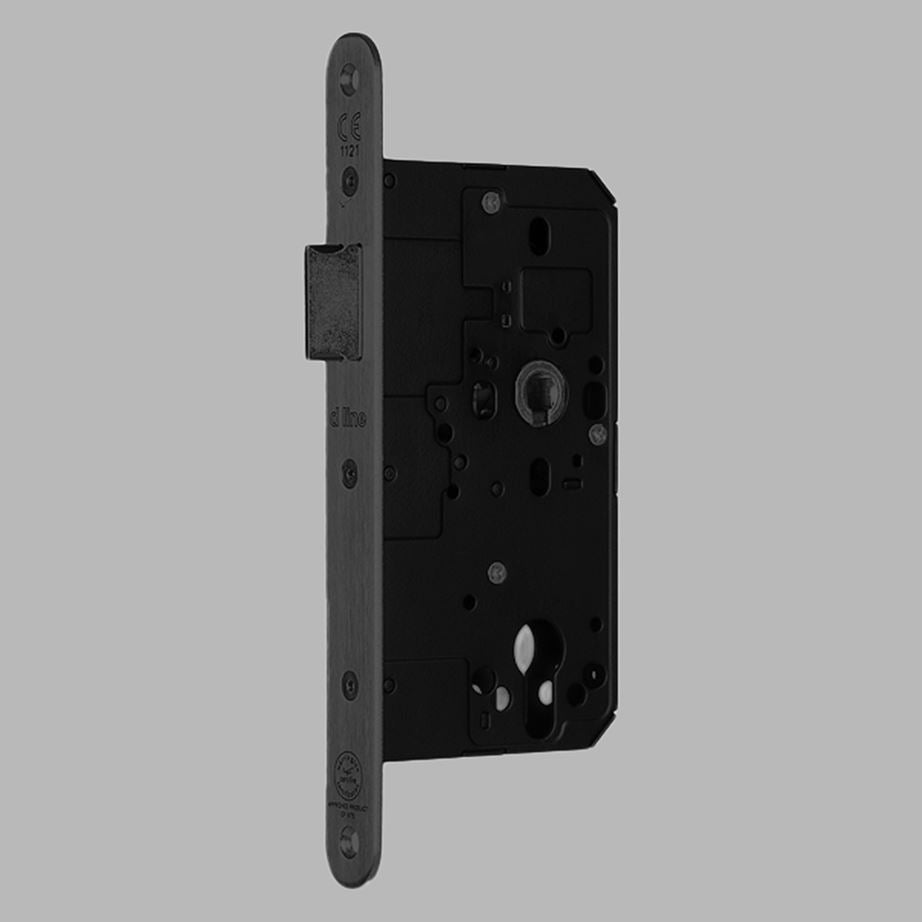

- PVD Satin Black
- Polished versions
- X-BAC antimicrobial coating
Product Downloads
d line Euro Mortise Passage Latch Lock Spec Sheet
d line Euro Mortise Passage Latch Lock Drawing 2D
Data Sheet — 60 mm, Square, Strong Spring + Strike Plate (PDF)
Data Sheet — 60 mm, Round, Strong Spring + Strike Plate (PDF)
Euro Mortise Mounting Instructions (PDF)
