Cham Interior Door Knob Set

Description

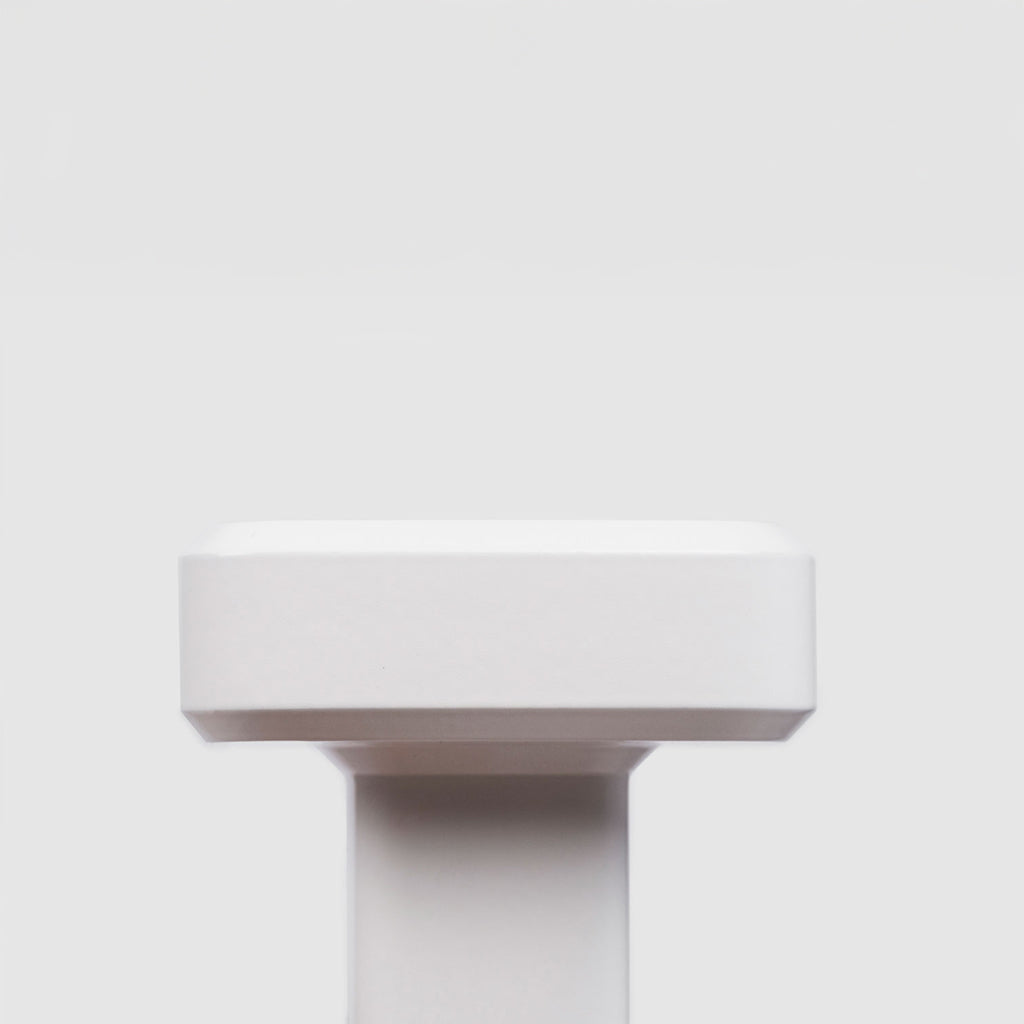

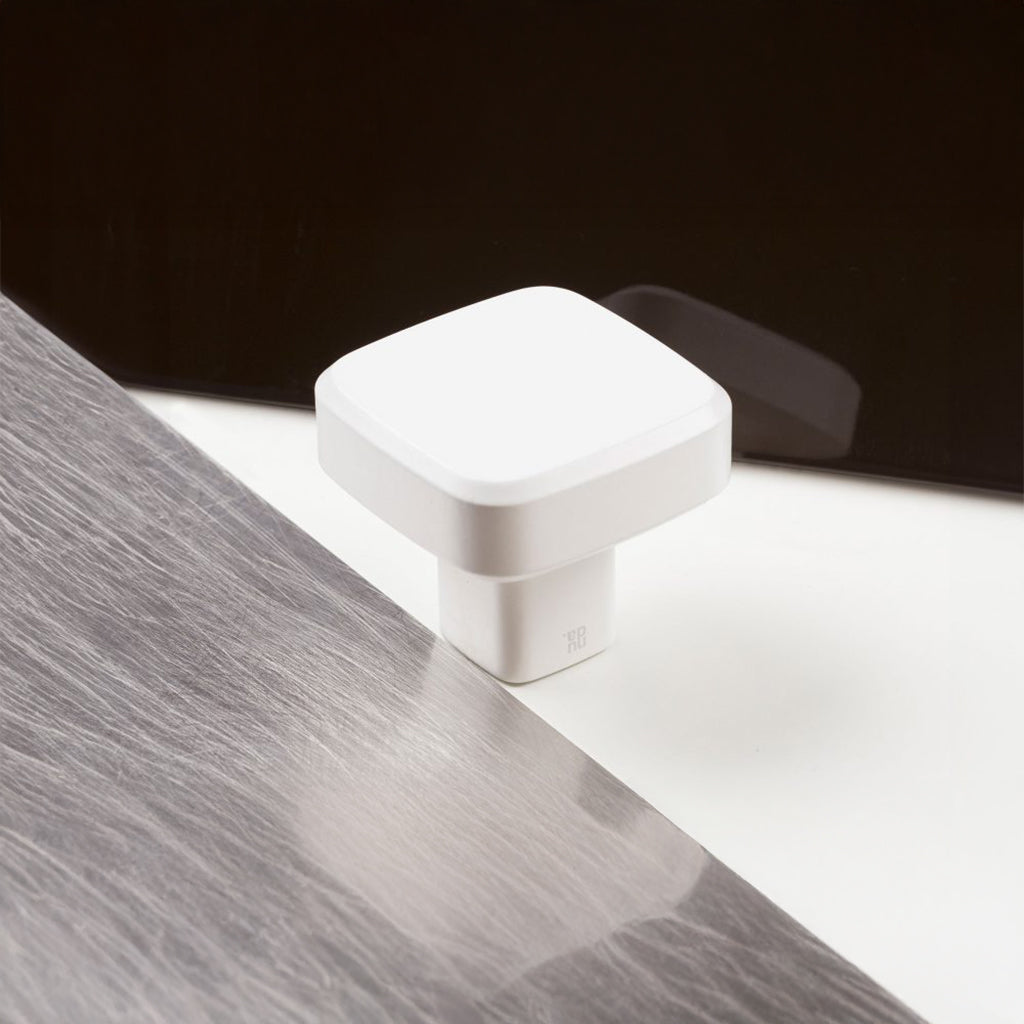

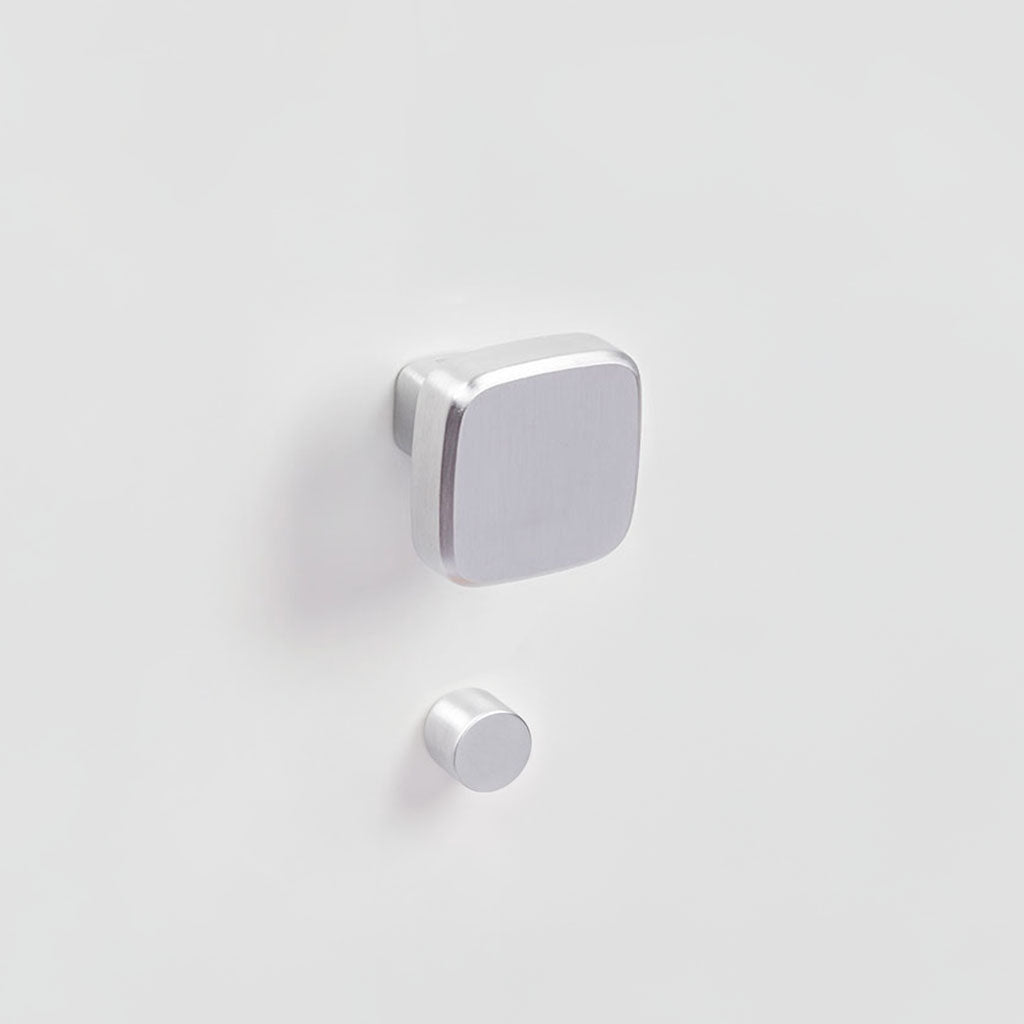

Cham Door Knob Set by Verum Italy departs from traditional round forms, defined by its soft square profile and refined edge detailing. With a gently rounded front face and subtly beveled corners, Cham balances crisp geometry with an approachable tactility. Installed flush to the door with no rose required, Cham is part of Verum’s Nuda collection — a minimalist, contemporary solution that emphasizes both ease of installation and elevated design. Made in Italy.

A key design feature is the absence of a rose backplate, making these handles unsuitable for pre-bored doors.

View the Nuda collection here.

Function Overview

Passage

For doors that latch but do not require a lock (e.g., hallways, closets).

Components included:

• Pair of knobs
• Euro mortise
• Strike plate

Privacy

For doors that lock from one side (e.g., bathrooms, bedrooms).

Components included:

• Pair of knobs
• Thumb turn with emergency release trim
• Euro mortise
• Strike plate

Dummy (Half or Full Set)

For decorative or push/pull applications, such as closets or pantry doors.

Half Dummy Set — A single knob installed on one side of the door only, with no hardware on the reverse.

Full Dummy Set — A pair of knobs installed on both sides of the door, providing a balanced look with no latch or locking function.

Fixing options for Dummy sets

• Standard (rear fixing – with Dummy adapter): Installed using Verum’s Dummy adapter, which secures the knob through an internal cylinder. The fixing is concealed, leaving the front face clean. Recommended when rear access is available.
• Custom (frontal fixing – knob for through fixing): Uses a knob designed specifically for frontal installation. The fixing screw passes through the door or panel and connects directly into the knob. Suitable for panels up to 100 mm (3.94″) thick and can be cut to size as needed. Additional lead time applies.

Components included (Dummy):

• Knob(s)
• Dummy adapter

Dummy sets are compatible with the Sugatsune Magnetic Latch (sold separately).

Specifications

• Knob: W 57 mm (2.24″) × D 50 mm (1.97″)
• Thumb turn (privacy only): W 27 mm (1.06″) × D 23 mm (0.91″)
• Thumb turn spindle (privacy only): Ø 6 mm. Installs on the external (non-locking) side of the door.
• Thumb turn spindle hole (privacy only): Ø 16 mm. Spindle length must suit door thickness and may require shortening.
• Privacy latch: Must accommodate a 6 mm spindle.
• Door bore hole allowance: Ø 16 mm (0.63″) – Ø 30 mm (1.18″)
• Not suitable for pre-bored doors.
• Commercial installations: Nuda handles can be ordered with preassembled spindles featuring a single fixing grain. Contact us for details.

Materials

Base material: Zamak.

Available finishes

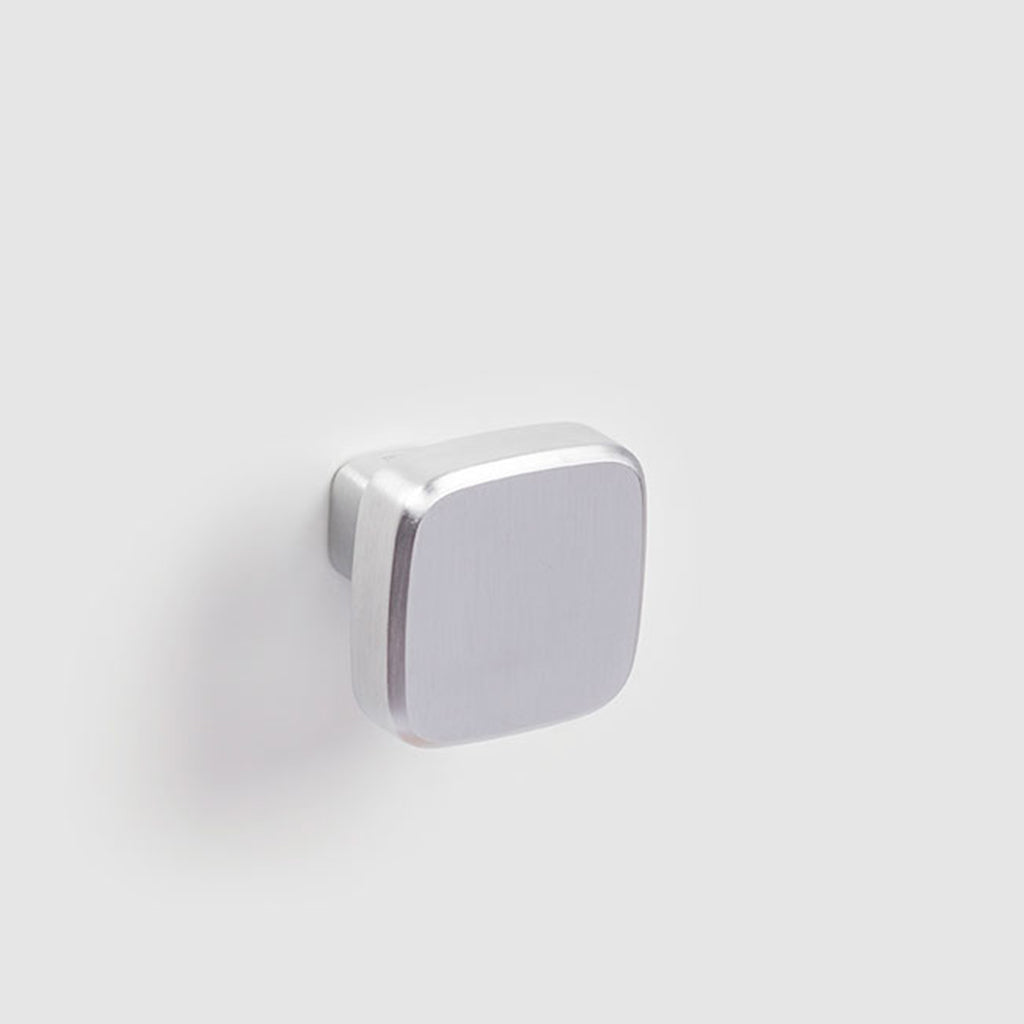

• Plated Satin Chrome Lacquered
• Plated Polished Chrome Lacquered

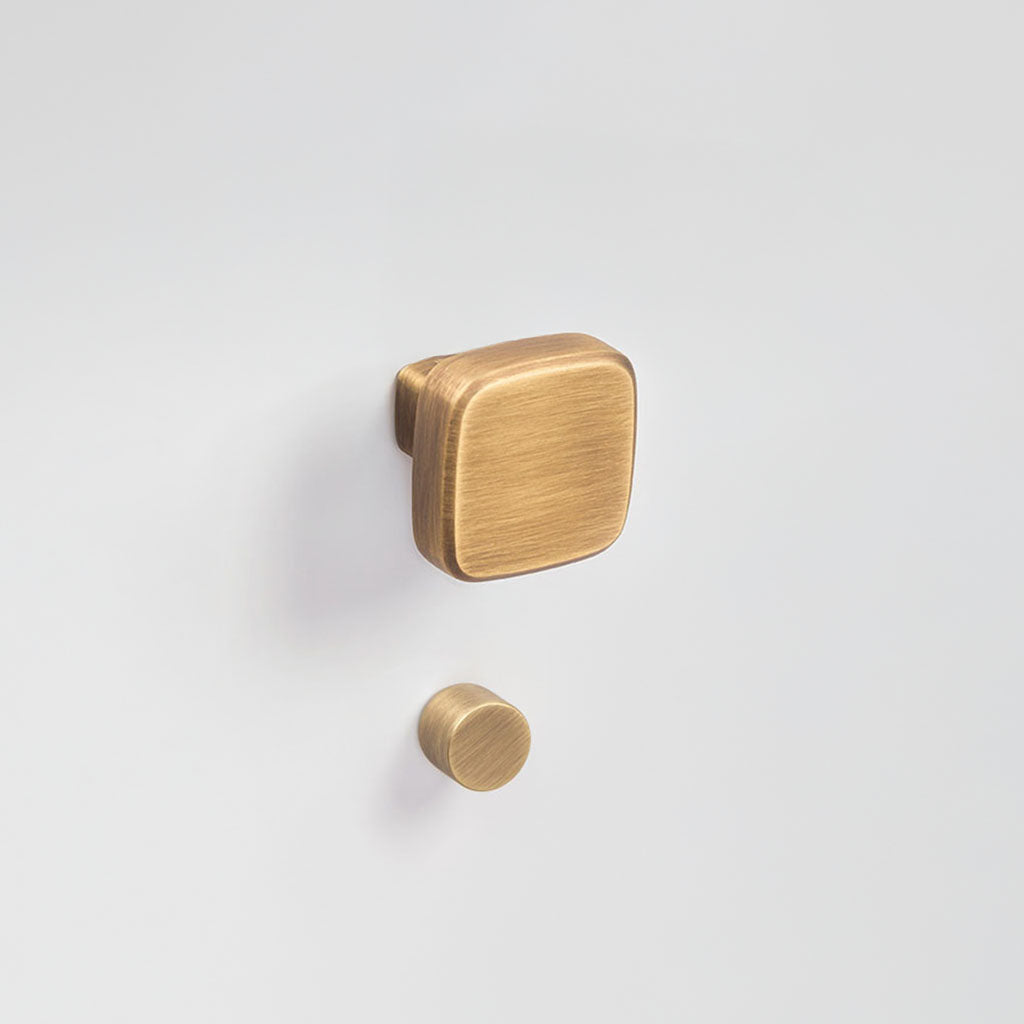

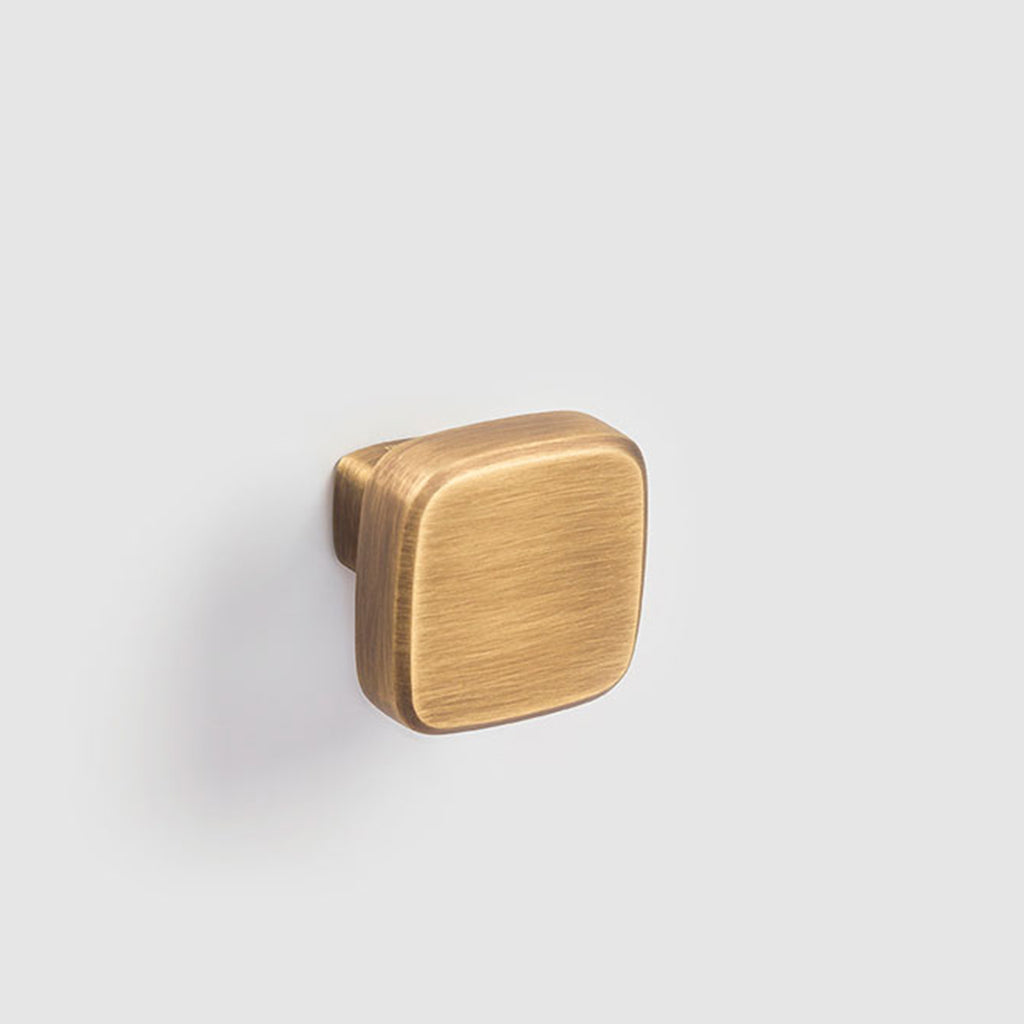

• Plated Bronze Lacquered

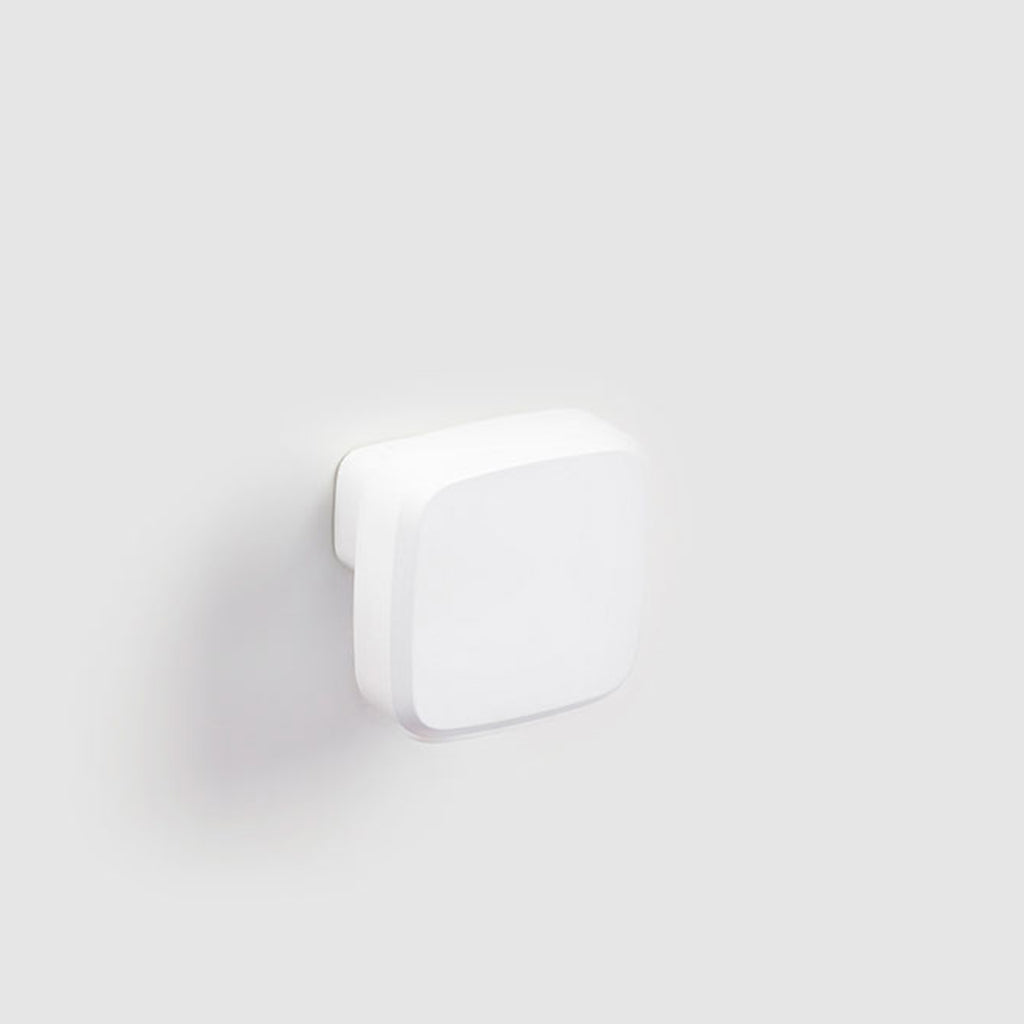

• Powder Coated White

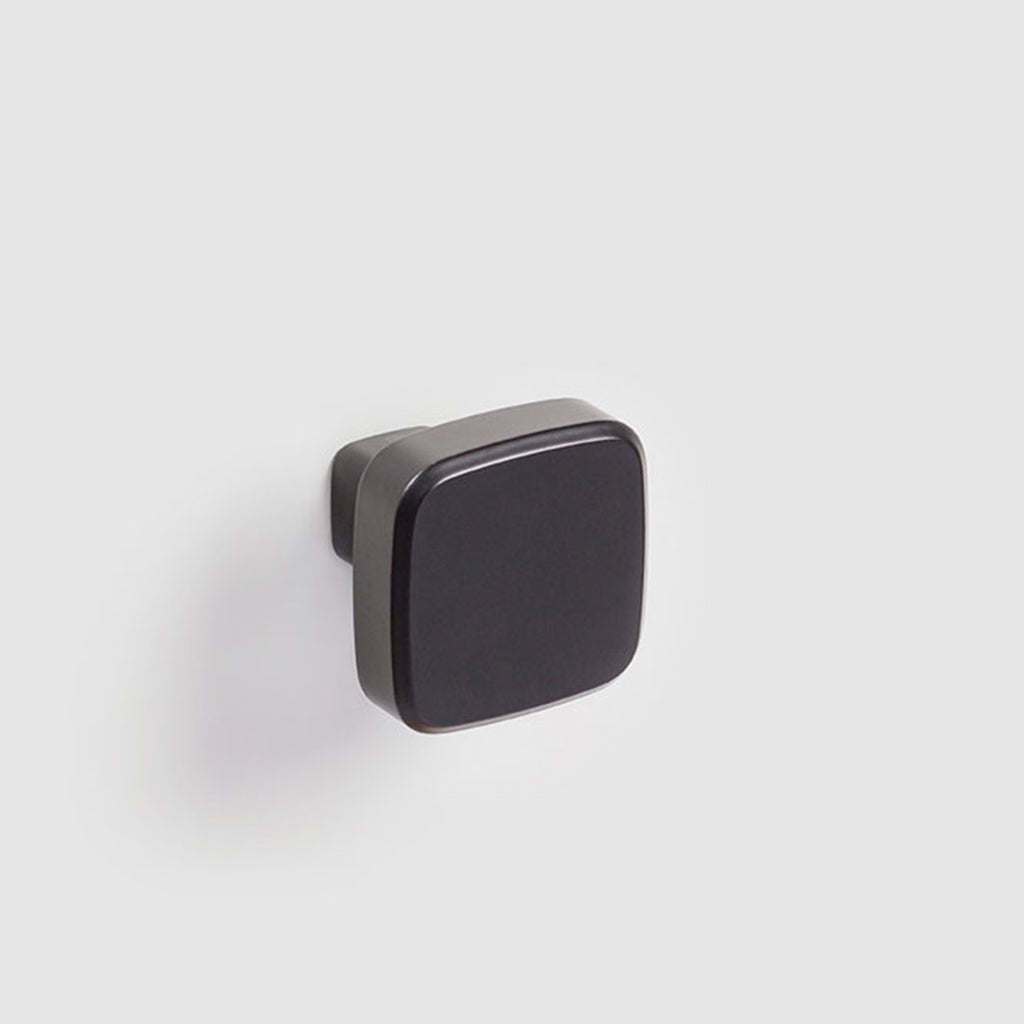

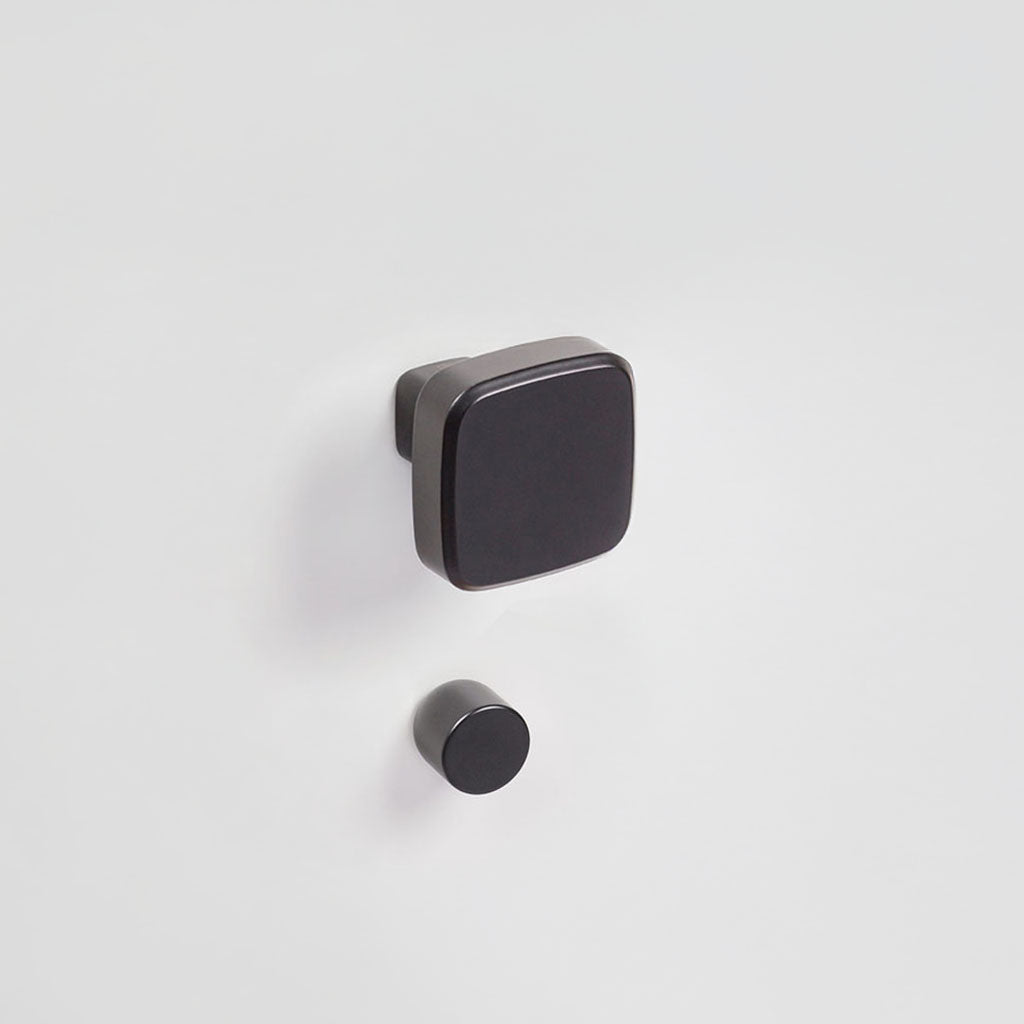

• Powder Coated Black

Product Downloads

Cham Interior Door Knob Set Spec Sheet

Cham Interior Door Knob Set Mortisse Spec Sheet

Installation Instructions (PDF)

Dummy Installation Guide (PDF)

Verum Italy Catalogue
