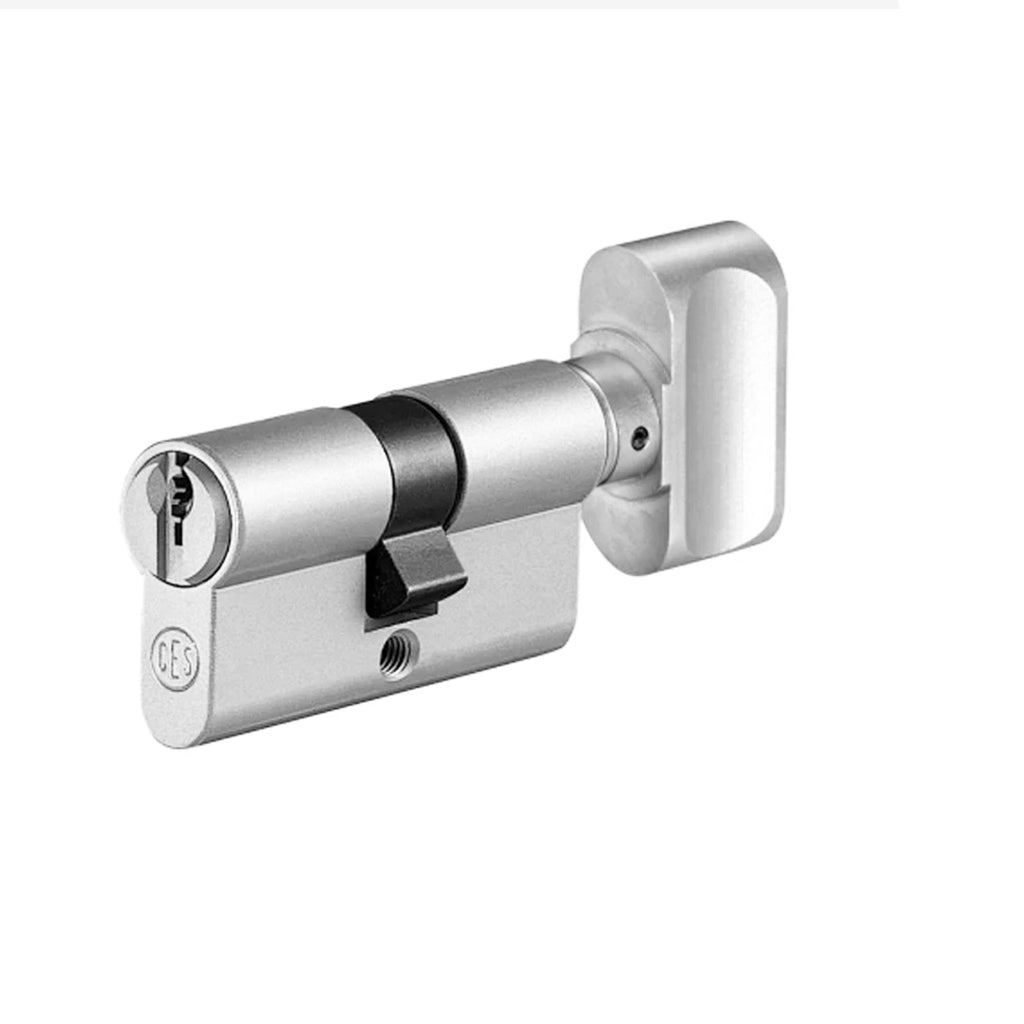

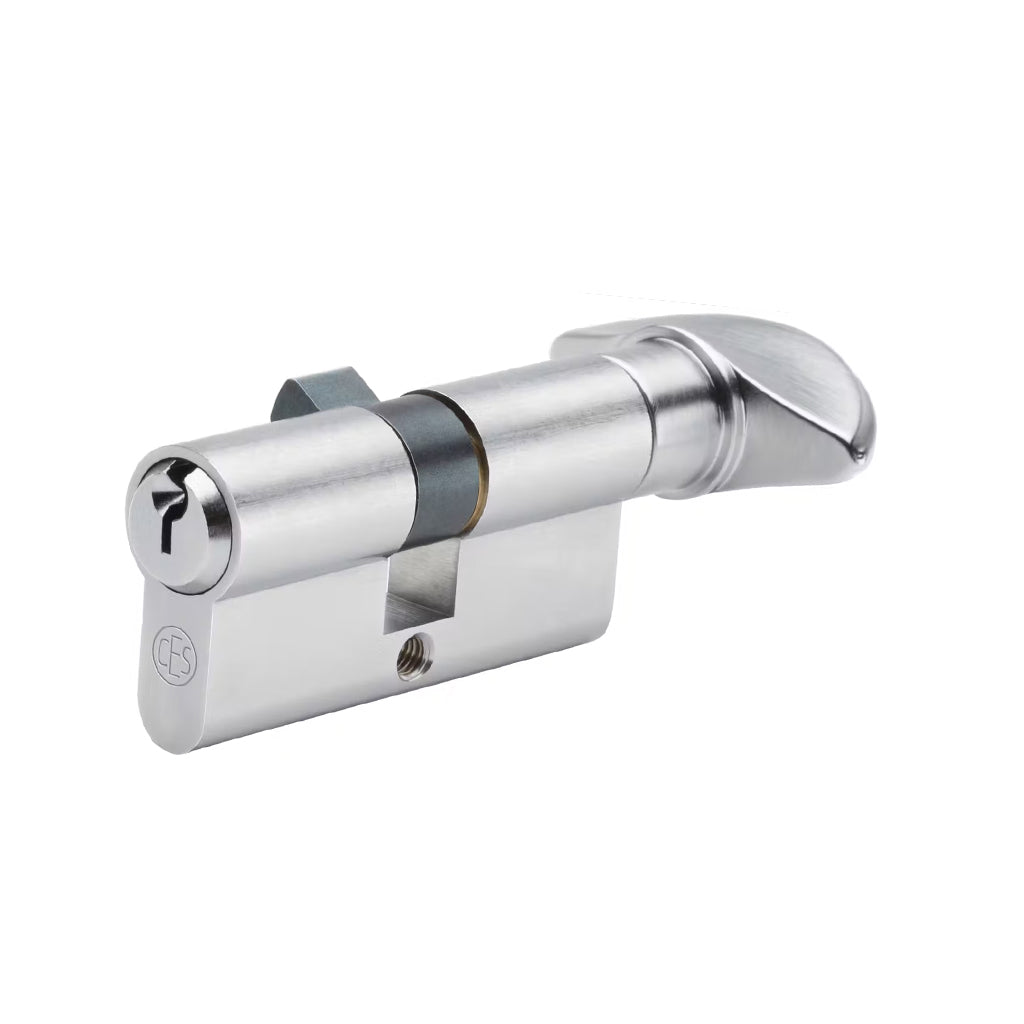

CES Key Cylinder 815 with Thumb Turn

Description

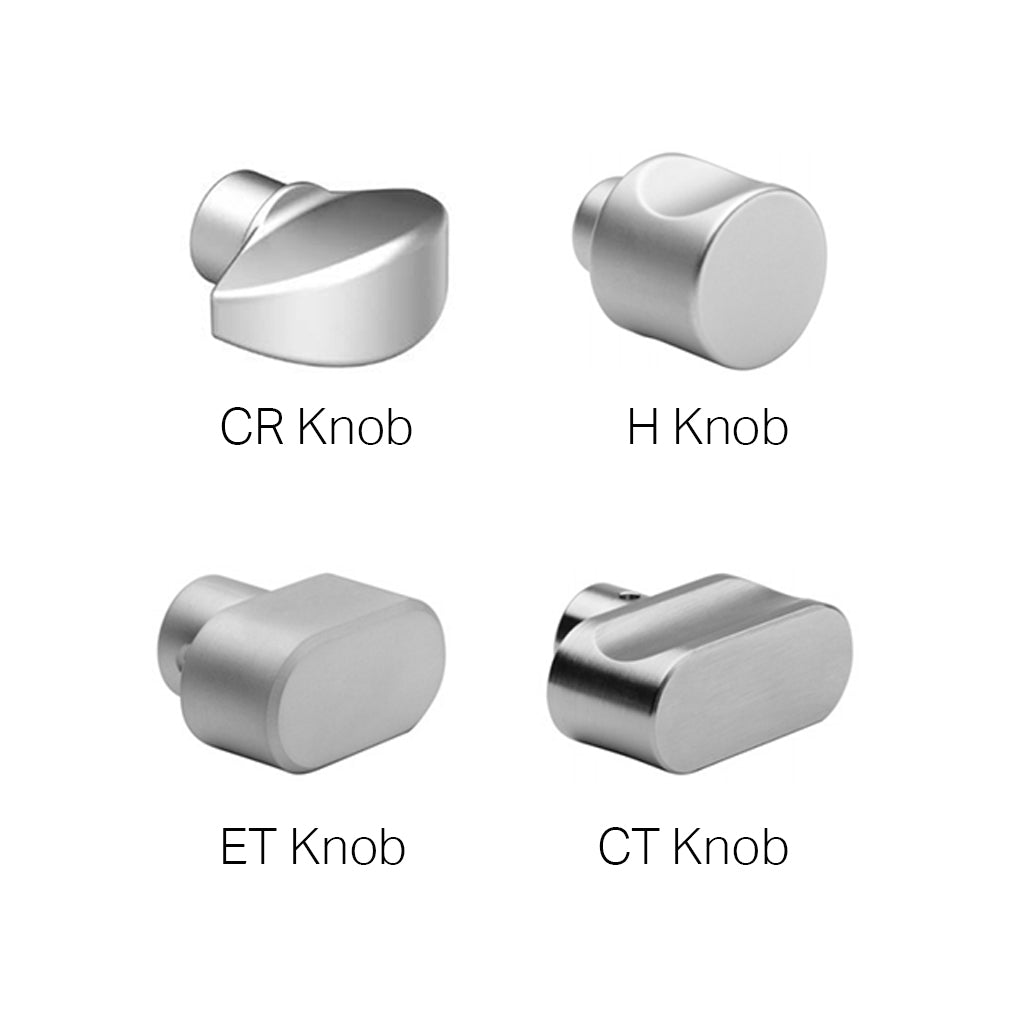

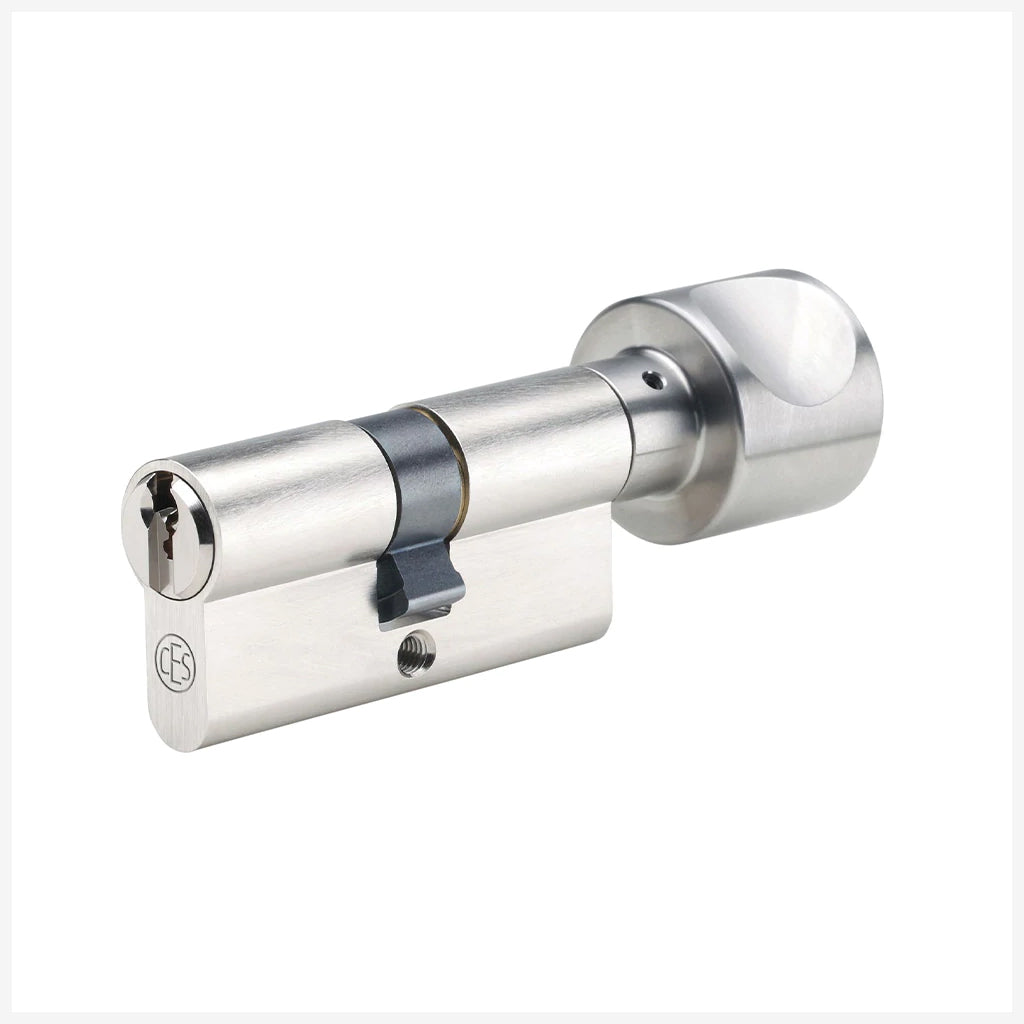

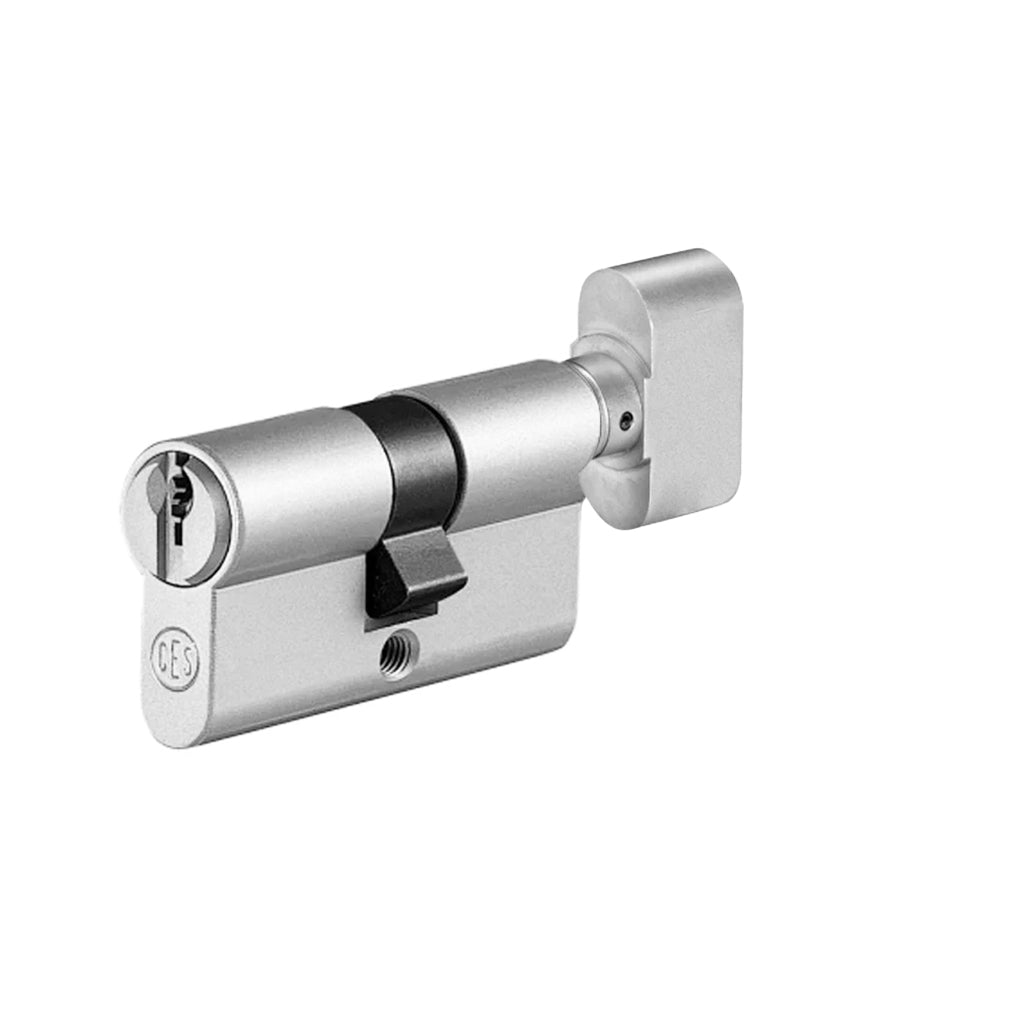

The CES Key Cylinder 815 by CES is a high-quality European locking mechanism with a keyed access point on one end and a thumb turn on the other. Available in four thumb turn styles and multiple finishes to coordinate with entry hardware.

Specifications

Cylinder Sizes

How to Measure
Take three measurements from the edge of the door panel:

• A — inside distance to the cylinder centre (incl. rose/escutcheon)
• B — outside distance to the cylinder centre (incl. rose/escutcheon)
• C — total door thickness from inside face to outside face, including roses

On most doors the cylinder sits near the middle, so A and B are similar. Some designs have more hardware on one side, so A and B can differ. Dimensions listed above assume equal A and B lengths. Final pricing depends on accurate measurements — contact us for a custom quote if your dimensions differ.

Locking Degree
360° rotation required to lock or unlock.

Keying Options (Multiple Cylinders)

• Keyed Alike — one key operates multiple cylinders (additional pricing applies)
• Keyed Differently — each cylinder uses its own key

Materials

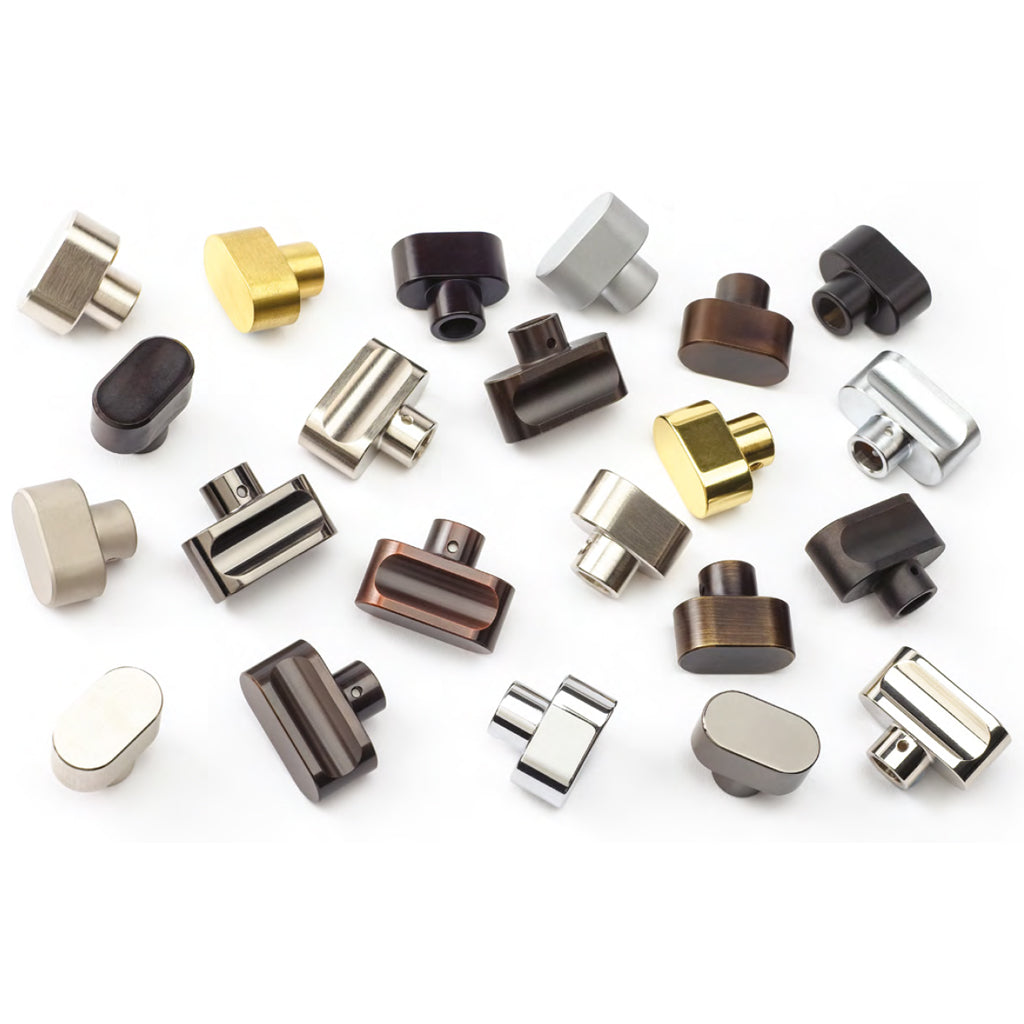

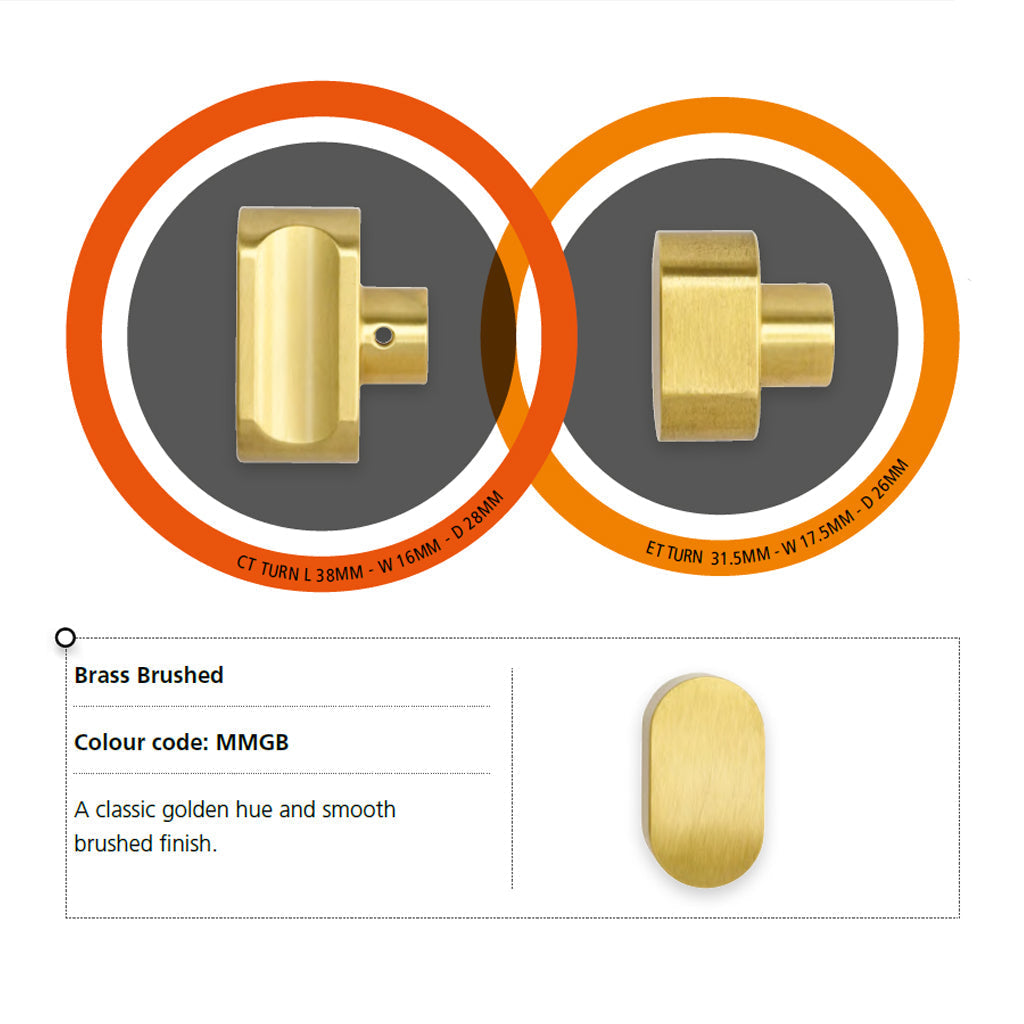

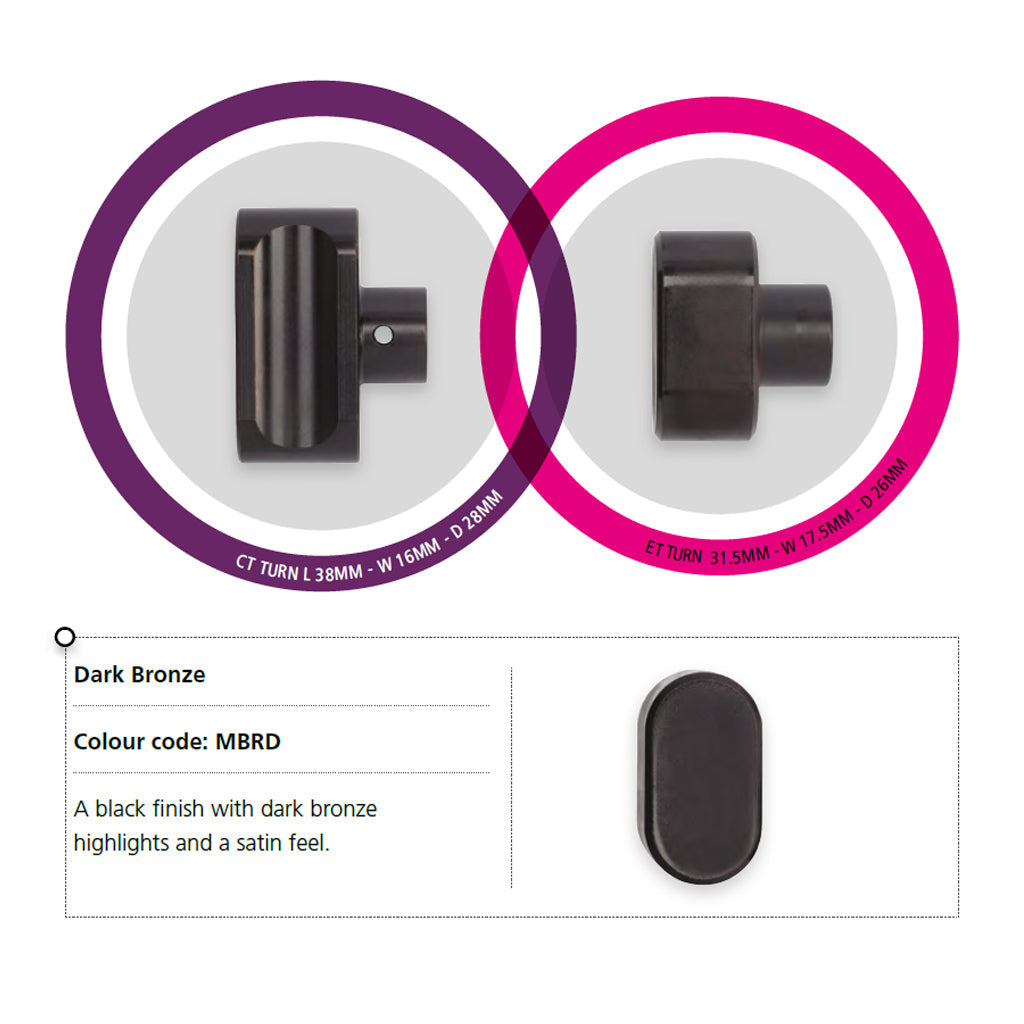

Thumb Turn Finishes

• Bronze

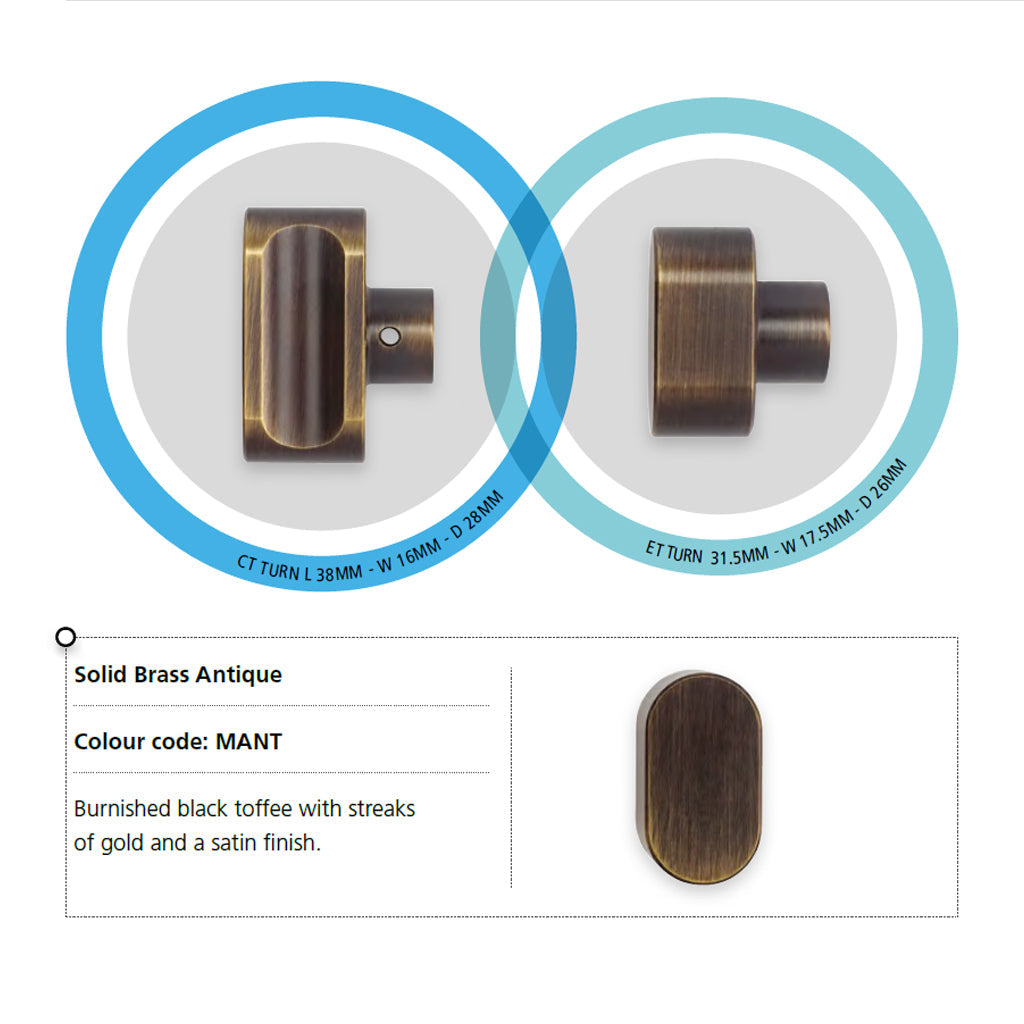

• Antique Brass

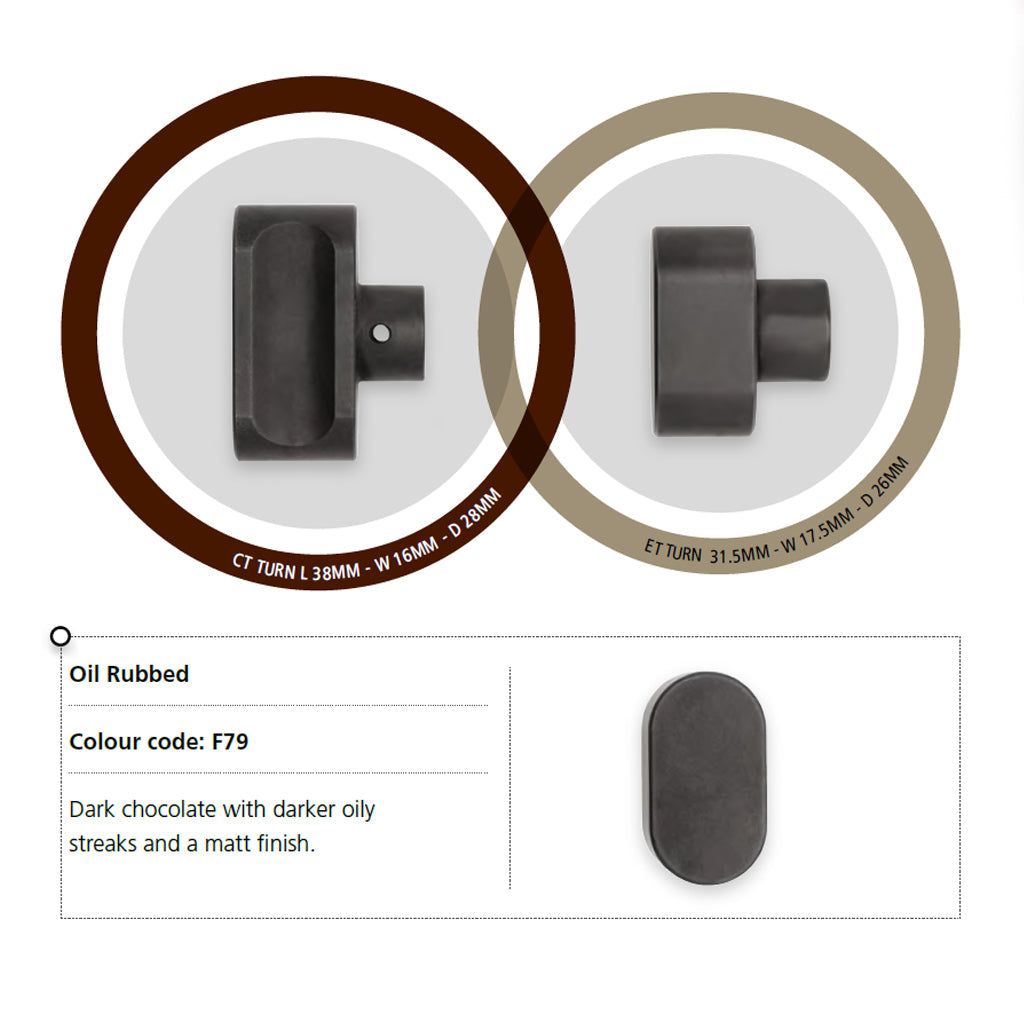

• Oil Rubbed

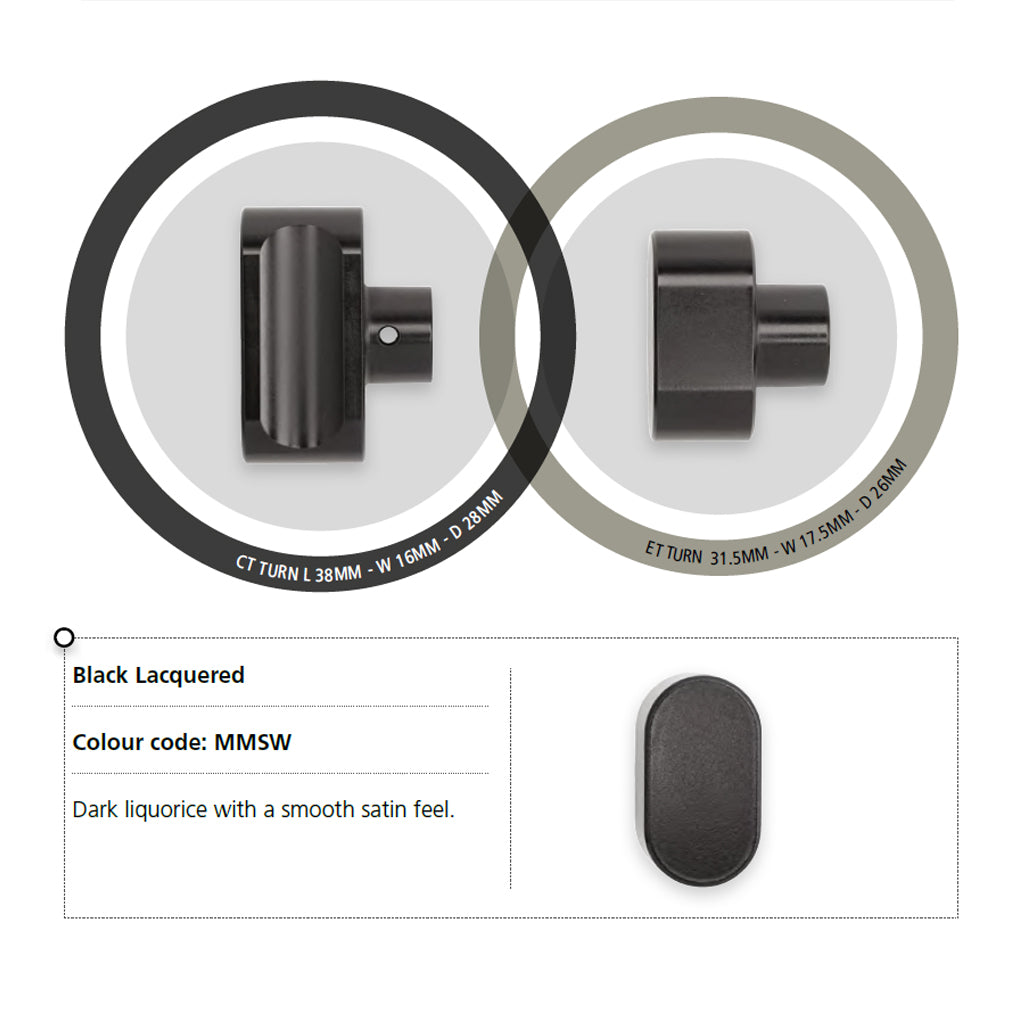

• Black Lacquered

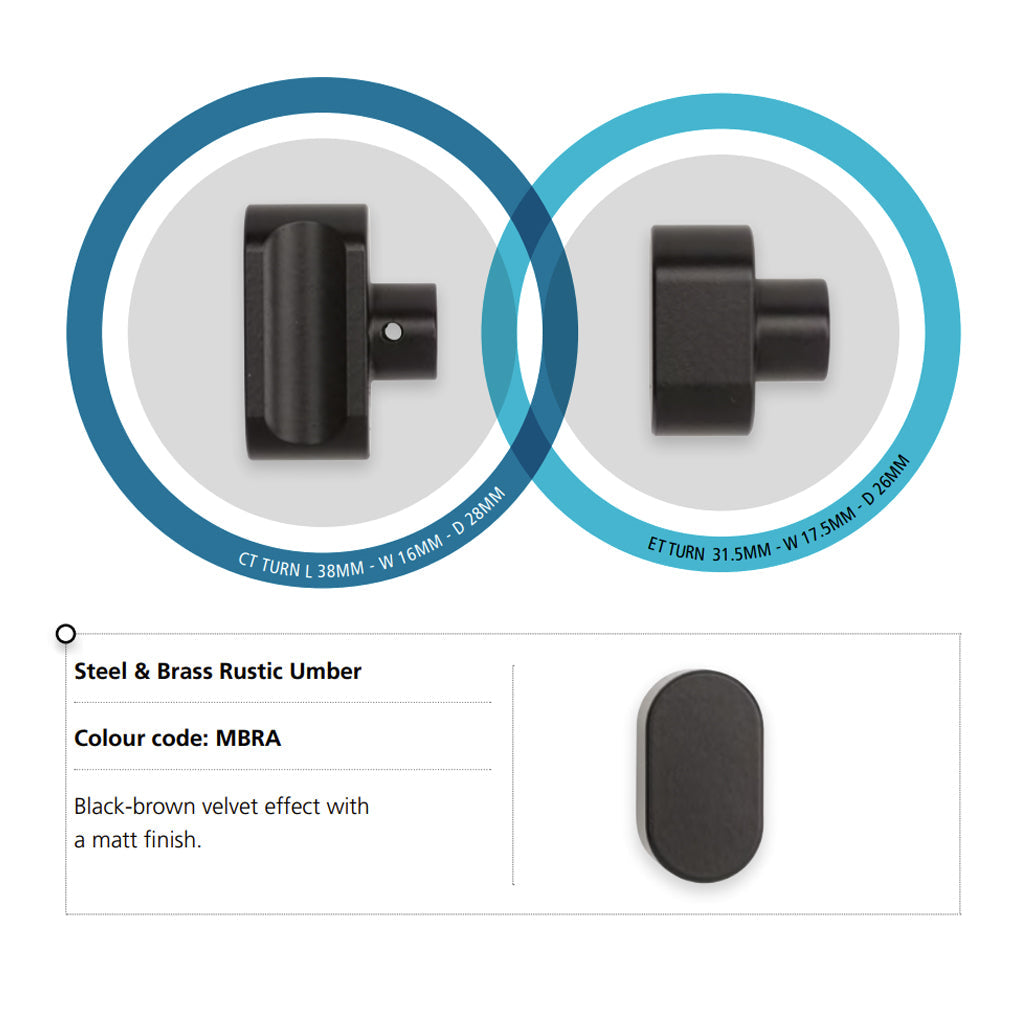

• Rustic Umber*
• Satin Brass

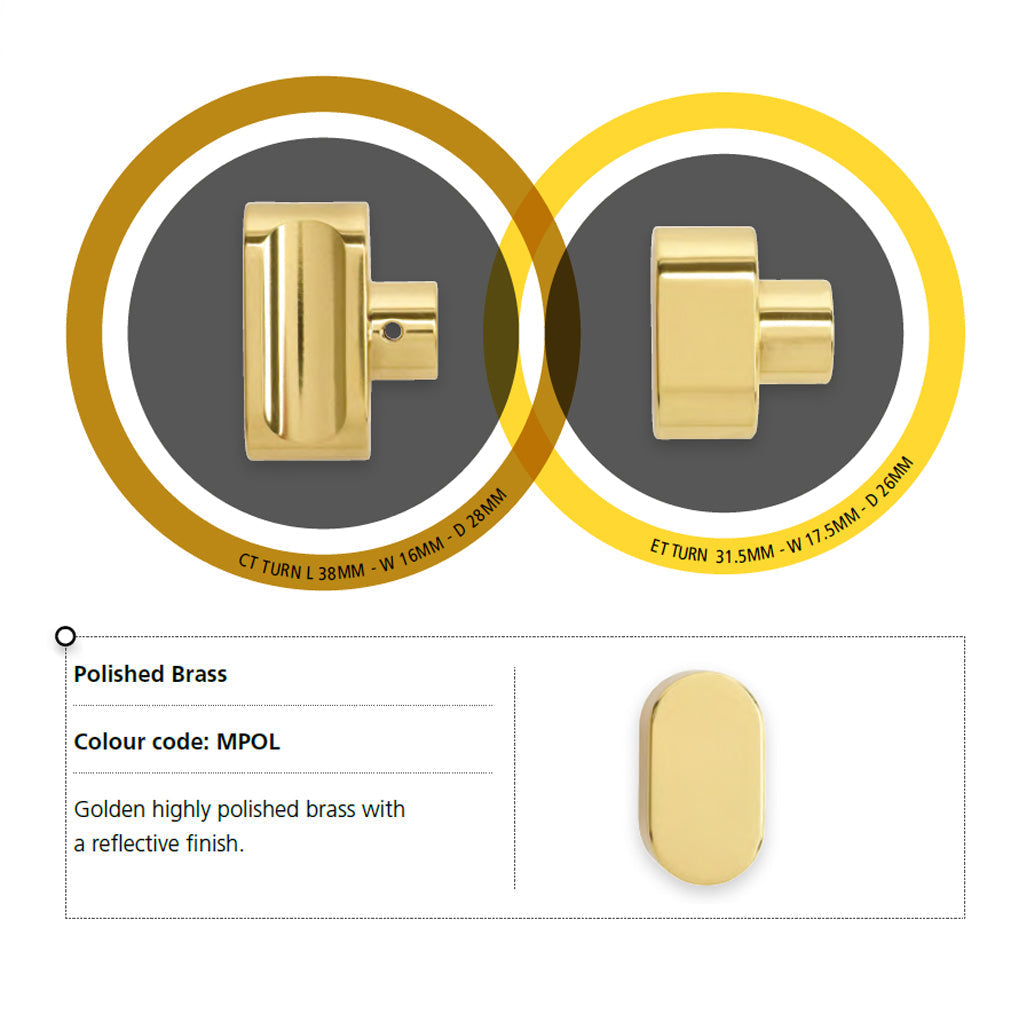

• Polished Brass

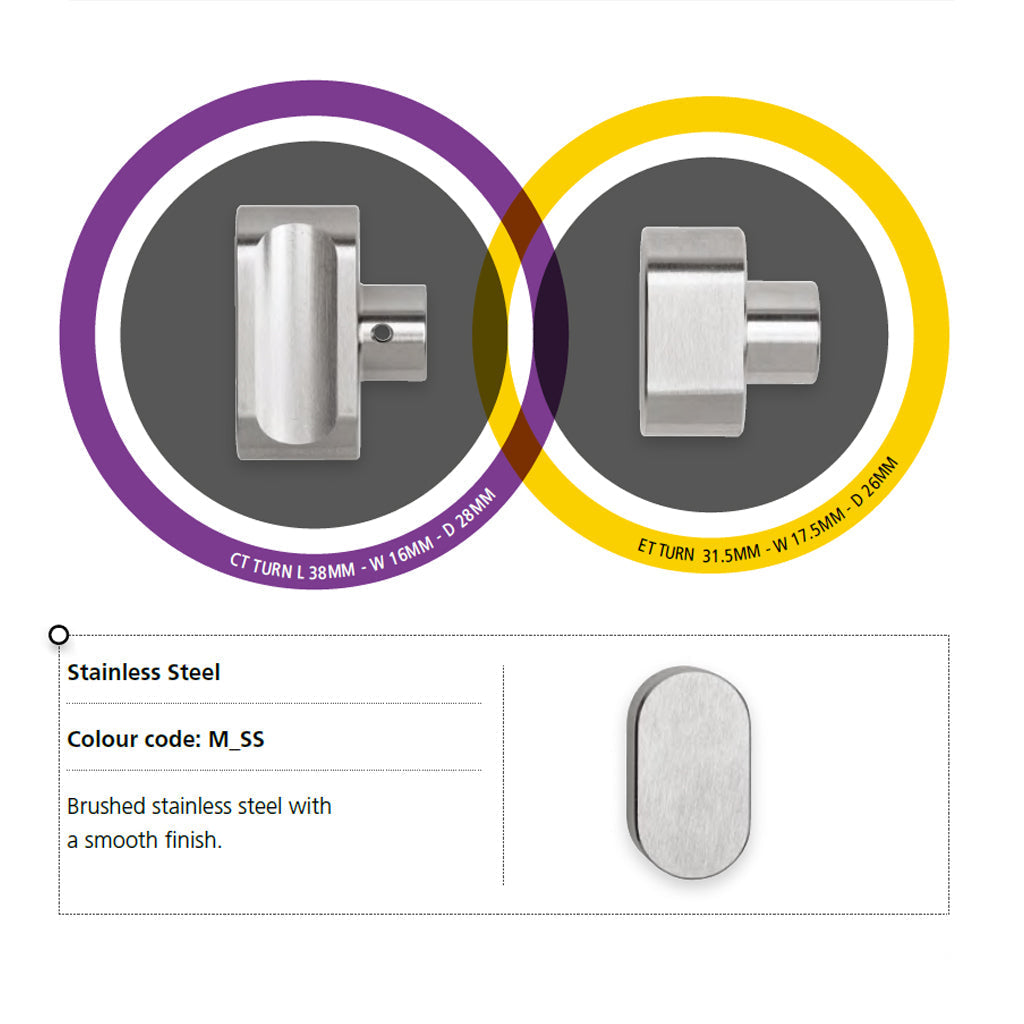

• Satin Stainless

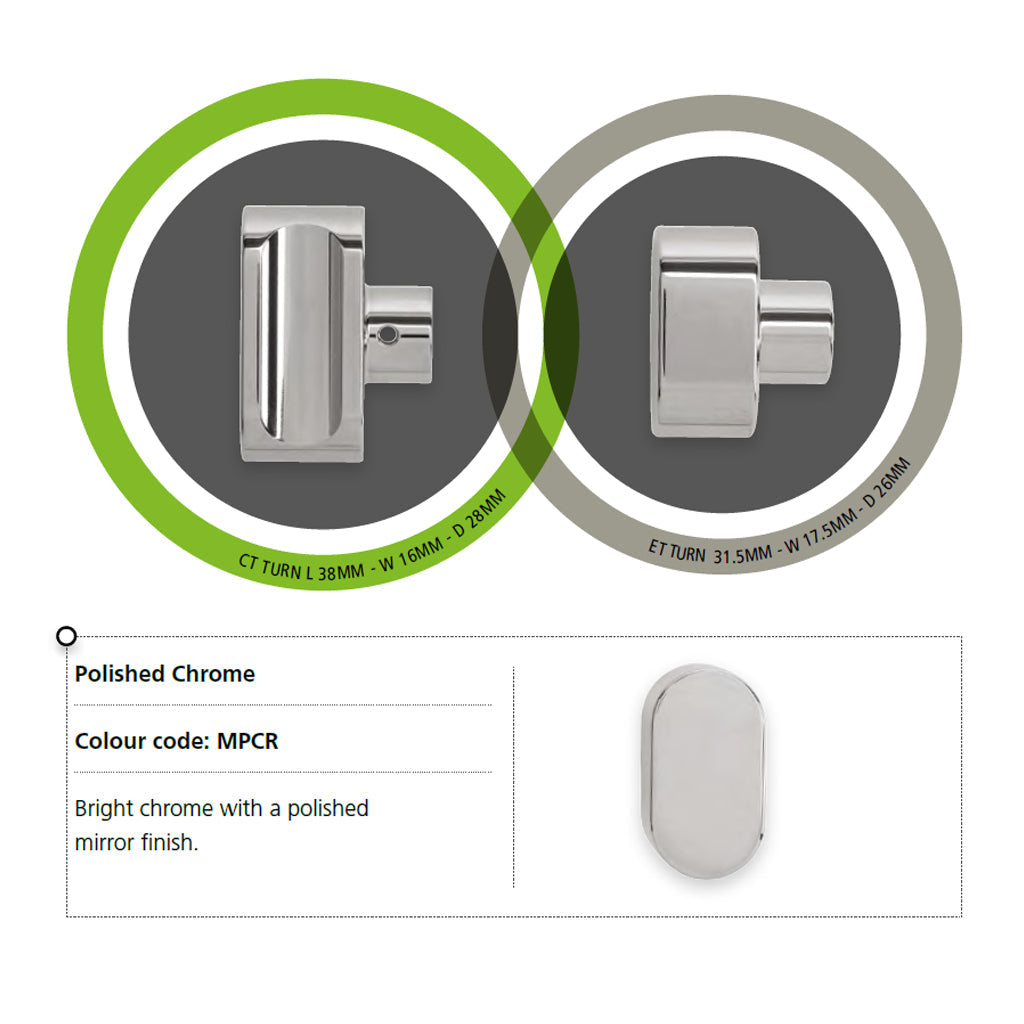

• Polished Chrome
• White

*Rustic Umber is most similar to Formani Black finish. Other and split finishes available on request.

Product Downloads

• CES Key Cylinder Brochure
• CES Key Cylinder 815 with Thumb Turn H Spec Sheet
• CES Key Cylinder 815 with Thumb Turn ET Spec Sheet
• CES Key Cylinder 815 with Thumb Turn CT Spec Sheet
• CES Key Cylinder 815 with Thumb Turn CR Spec Sheet
